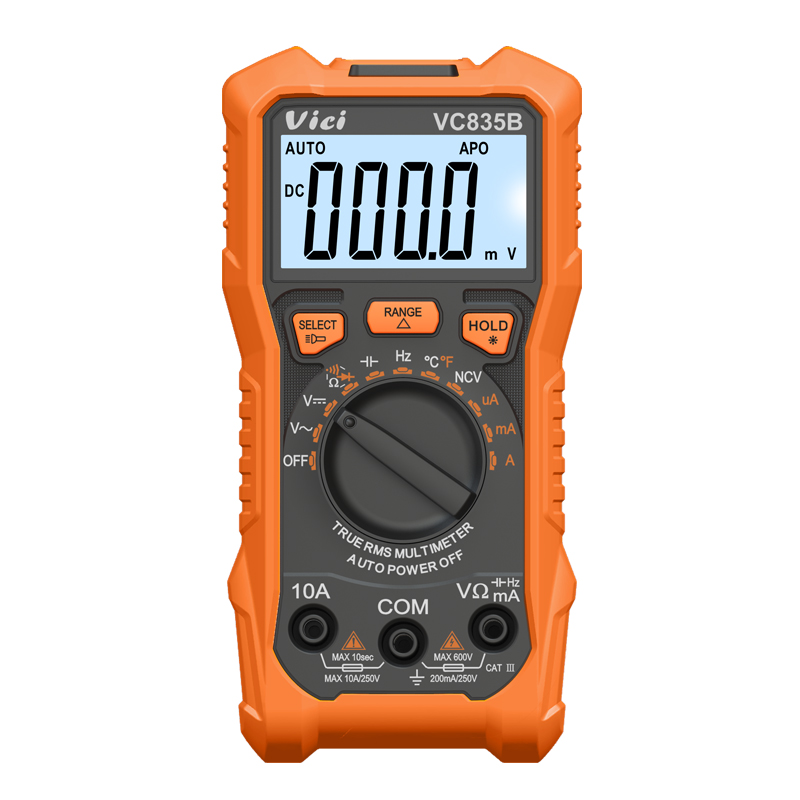

Vicimeter VC835B 1999 Counts Auto Range Portable Digital Multimeter
Model No.:
VC835B
Size:
140*72*37mm
Weight:
195g
Safety level:
CAT. III 300V
Max display:
2000 digits
Voltage:
AC DC 600V
Current:
AC DC 10A
Capacitance:
2000uF
Resistance:
20MΩ
Frequency:
1MHz
Temperature:
1000℃， 1832℉
Description
Contact Supplier
Description

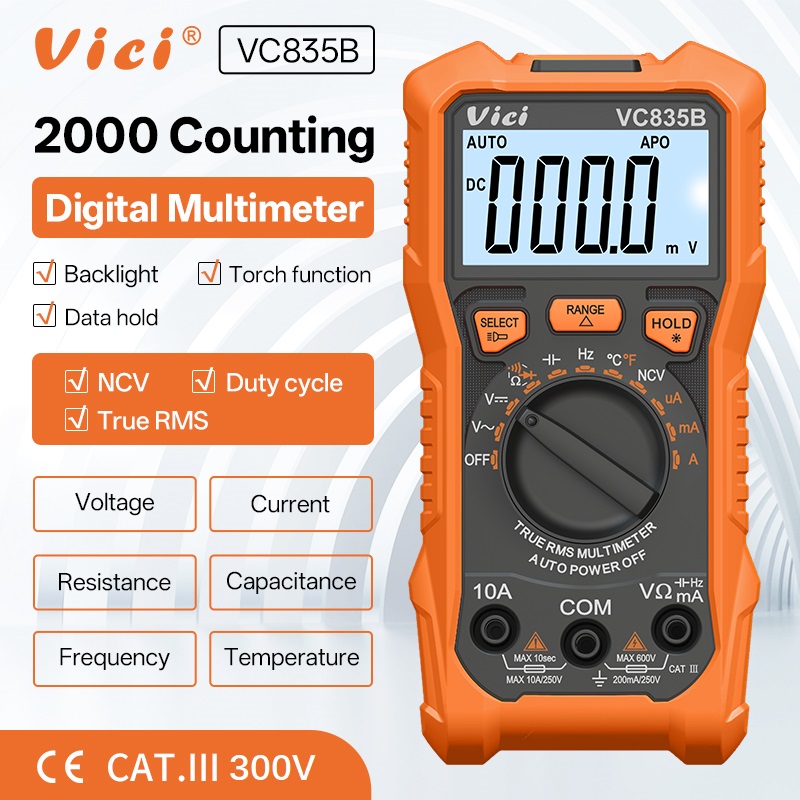

VC835B 3 1/2 Auto Range Digital Multimeter
Features:
1. New type holster, streamlined design, comfortable handle;
2. Large LCD display makes reading clear;
3. Strong antimagnetic and anti-interferential performance;
4. Full function protection;
5. Auto power off when there is no measurement in 15 minutes;
6. Unit symbol display, easy to read; Lighting function, backlight display.
7. True RMS, NCV, Relative value, Frequency, Duty cycle tests and data hold function.
Basic function | Range | Basic Accuracy |
DCV | 200mV/ 2V/ 20V/200V/600V | ± (0.5%+4) |
ACV | 200mV/2V/ 20V/ 200V/ 600V | ± (0.8%+6) |
DCA | 200uA/ 2000uA/ 20mA/ 200mA/ 2A/ 10A | ± (1.0%+5) |
ACA | 200uA/ 2000uA/ 20mA/ 200mA/ 2A/ 10A | ± (1.5%+5) |
Resistance | 200Ω/ 2kΩ/ 20kΩ/ 200kΩ/ 2MΩ/ 20MΩ | ± (0.8%+1) |
Capacitance | 20nF/ 200nF/ 2uF/ 20uF/ 200uF/2000uF | ± (2.5%+5) |
Frequency | 10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz | ± (0.5%+4) |
Temperature | -40℃～1000℃/-40℉～1832℉ | ± (1.0%+5) |
Special function:
Model | VC835B |
Safety level | CAT. III 300V |
Max. display | 1999 |
True RMS | √ |
NCV | √ |
Data hold | √ |
Function protection | √ |
Torch function | √ |
Backlight display | √ |
Duty cycle | 1%~99% |
Diode test | √ |
Continuity alarm | Less than 50Ω, it displays “OL” if over 610Ω |
Low battery indicator | Approx. less than 2.4 V |
Auto power off | About 15 minutes |
Input impedance | 10MΩ |
Sampling rate | 3 times/s |
AC frequency response | 40Hz-2kHz |
Operation method | Manual or Auto range |
LCD size | 61x28mm |
Battery | 3V (2*AAA battery) |
Power consumption | Quiescent current about 2mA |
General characteristic:
Meter color | Orange and Grey |
Meter weight | 195g（including battery） |
Meter size | 140×72×37mm |
Standard accessory | Test leads, battery, manual, TP01 temperature probe |
Standard packing | Gift box |
Quantity per carton | 40PCS |
GW per carton | 15KG |
Carton size | 32.5×25×47.5CM |
