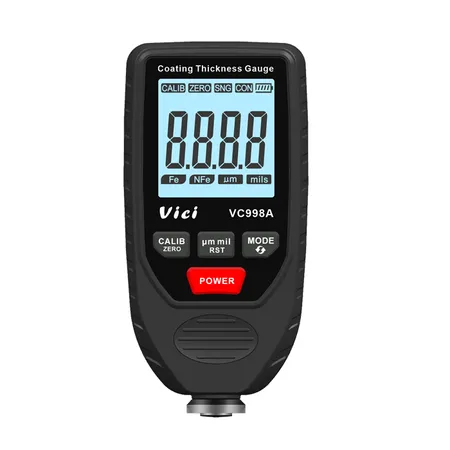

Vicimeter VC998A Coating Thickness Test Gauge
Type:
Fe, NF
Principle:
Electromagnetic induction, Eddy current effect
Range:
0-1500um
Accuracy:
±（3%+2um)
Resolution:
0.1um
Min. substrate thickness:
0.5mm
Unit:
um, mil
Power supply:
3V(2*1.5V AAA carbon battery)
Device size:
122*62*27mm
Description
Contact Supplier
Description
VC998A Coating Thickness Gauge
Features:
1. Wide viewing angle LCD, one key switch display flip, easy to read.
2. Iron-based/aluminum-based automatic identification conversion.
3. High precision, high sensitivity non-destructive paint film probe.
4. Adapt to automotive, iron, steel, aluminum, copper and other varieties of paint film thickness detection.
Fe probe (iron base) | NF probe (aluminum / copper and other non-magnetic substrates) | |
Principle | Electromagnetic induction | Eddy current effect |
Measuring range | 0~1500um | 0~1500um |
Accuracy | ±(3%+2um) | ±(3%+2um) |
Resolution | 0.1um/0.01mil | 0.1um/0.01mil |
Calibration | Zero calibration, multi-points calibration | |
Unit | Um, mil | |
Minimum convex radius of curvature | 1.5mm | |
Minimum concave radius of curvature | 25mm | |
Minimum measurement area diameter | 6mm | |
0.5mm | 0.3mm | |
Power supply | 2 x 7 (AAA) batteries | |
Operating environment | 0~40°C (32~104°F), Humidity:20%~90%RH, No strong magnetic field | |
General Info:
Gray | |
Weight (without battery) | Approx. 95g |
Dimension | 120mm×60mm×25mm |
Packing | Color box, manual, battery, iron/aluminum substrates, calibration film |
