Video Input Driver Board 8.0 Inch Display
Model No.:
8.0" TFT Controller Boards
Brand:
MICROTECH
Size:
183(W) x 141(H) x 5.6(D) mm
Port:
Shenzhen
Type:
TFT - Thin Film Transistor
Description
Contact Supplier
Description

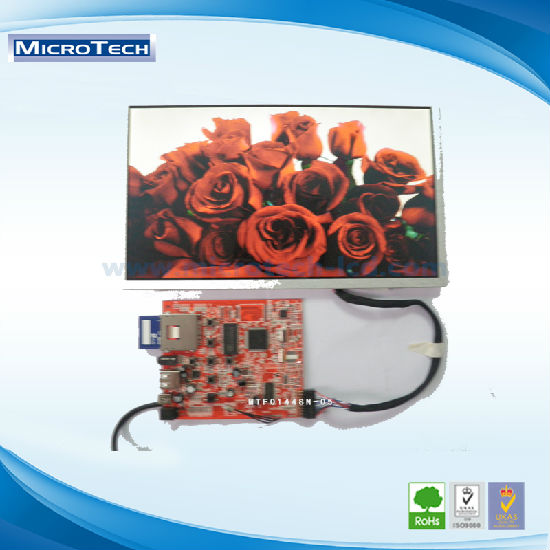

- Item: video input driver board 8.0 inch display
- Model name: KWH080TG06-F01+board
- Display mode: normally white, transmissive
- Resolution: 800 x 3 RGB x 600
- Technology type: a-Si TFT active matrix
- Pixel pitch: (mm)0.0635(H) x 0.1905(V)
- Color depth: 16.7M
- Outline dimension: 183(W) x 141(H) x 5.6(D) mm
- Active area(mm): 162(W) x 121.5(H) mm
- InterfaceRGB with T-con
- Flat cable connector type, with 60 Pins
- Color configurtionR.G.B-stripe
- Backlight: white
- Operating temperature: -20~70°C
- Storage temperature: -30~+80°C
- Touch panel: without
- Application: GPS, camera, phone, camcorder and other electronic products, etc.
