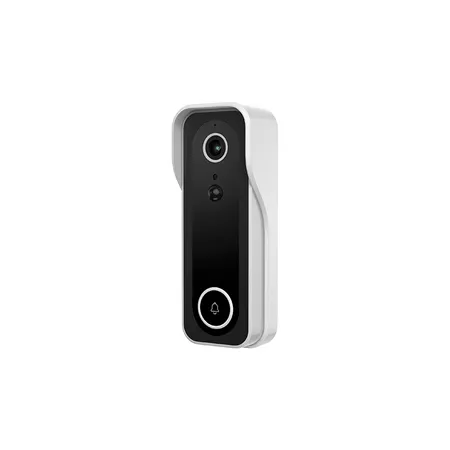

Video doorbell
US $21.59 - US $23.99
Production Lead Time:
30 day(s)
Brand:
Golden vision
IP rating:
IP65
Power Source:
Rechargeable Battery
Resolution:
1920×1080
Description
Contact Supplier
Description
Features:
1.4MP video pixels 1/2.8-inch CMOS
3.HD lens 3.2mm fixed
4.IR-CUT automatic switching to achieve day and night monitoring
5.850mm IR LEDs,IR distance: 8-10M
6.Support digital WDR and 3D noise reduction functions
7.H.265 video compression technology, high image quality, low bit rate
8.PIR body detection wake up,induction angel 120°, doorbell button wake up, mobile phone and other intelligent terminals active wake up, anti-demolition alarm wake up,one-click call
9.Low power consumption, long standby, anti-disassembly alarm
10.ID novel design, infrared highlights the runway design style, the upper wall parts made of "rain" curve design
Product Parameters：
| | Parameters | Specifications |
| | CMOS size | 1/2.8-inch CMOS |
| Video | Effective Pixels | 2560*1440(4MP) |
| | Compression standard | H.265 |
| | Frame rate | Fixed 20fps |
| | Stream bit rate | Changeable 32Kbps-1.5Mbps |
| | Resolution | HD(Mainstream):2560*1440 SD(Sub-stream): 640*360 |
| | Video format | MP4 |
| Audio | Bit rate | 64kbps |
| | Audio format | G711A |
| Lens parameters | Model | TX-D145(A16C-1.5) |
| | Focal length | 3.2mm |
| | Relative pore size | F2.4 |
| | Interface type | M12*0.5 |
| | FOV | D:150° H:112° V:84° |
| | Resolution | 4MP |
| | Number of lens layers | 1G3P |
| Night vision | IR Distance | 8-10 m |
| | Photosensitive method | Photo Diode |
| | IR-CUT | YES |
| | IR Light | 6pcs 850nm IR LEDs |
| | White light | N/A |
| Rotation angle | Pan/Tilt | N/A |
| WIFI | Model | ATBM6441 WIFI 2.4G |
| | Standard | IEEE 802.11 b/g/n |
| | Distance | 20-30m(No barriers) |
| Bluetooth | Bluetooth | Support |
| Speaker | Speaker function | Support Impedance 8Ω |
| Microphone | Sensitivity | -36dB ± 2dB |
| | Signal-to-noise ratio | ≥58dB |
| Storage | Cloud storage | Support |
| | Storage | Supports TF cards, up to 256GGB |
| Indicate light | Indicate device working state | 1.Steady on: Connected to the Internet 2.Fast blinking: Connecting to the Internet 3.Slow blinking: Not connected to the Internet |
| Interface | Reset button | Support |
| | Power interface | Type-C 5V/2A |
| | Wired network interface | N/A |
| Battery | Capacity | 5200mAh 3.7V(2x18650) |
| | Endurance | 2-3 months |
