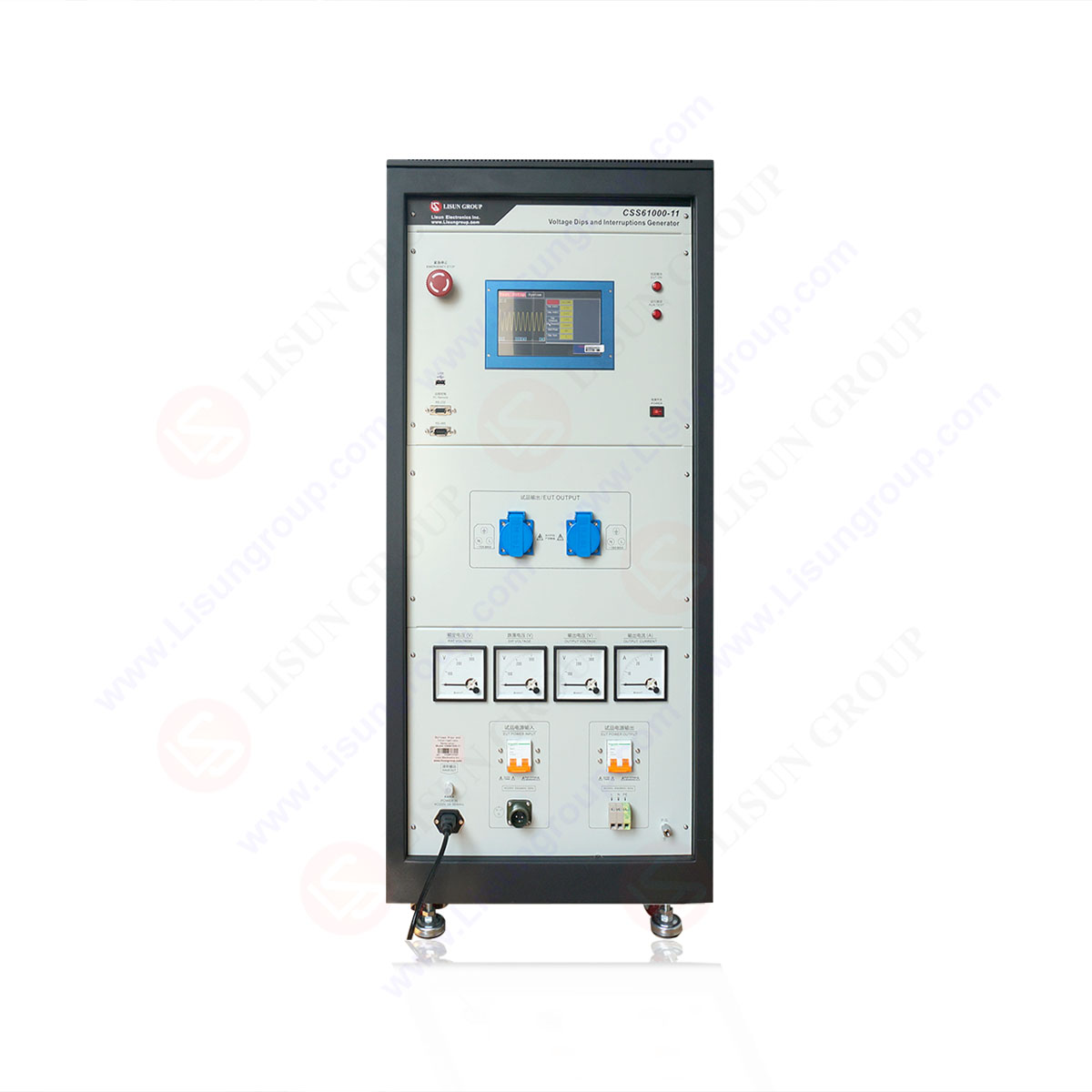

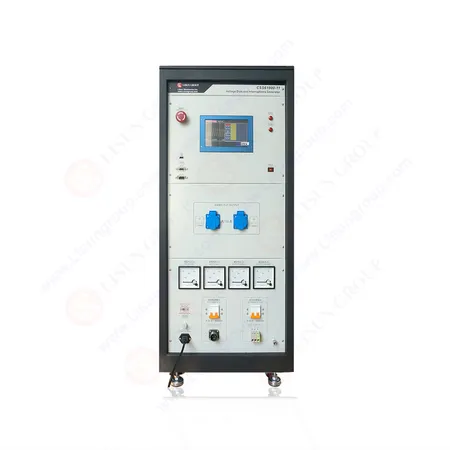

Voltage Dips and Interruptions Generator

US $4999.00 - US $9999.00

Production Lead Time:

30 day(s)

Shipping Method:

By express

Application:

Testing instrument

Brand:

LISUN

Model No.:

CSS61000-11

Description

Contact Supplier

The Voltage Dips and Interruptions Generator is specially designed according to the characteristics and requirements of EMS measurement under a sudden reduction or interruption of the voltage at a point. CSS61000-11/ CSS61000-11T uses a big LCD touch screen in both English and Chinese. It has better performance such as high reliability, convenient operation.

Standard:
IEC 61000-4-11/ EN 61000-4-11 /GB/T17626.11 “Electromagnetic compatibility (EMC) – Part 4-11: Testing and measuring techniques; Voltage dips, short interruptions and voltage variations immunity tests”

Specification:

LISUN Model	CSS61000-11	CSS61000-11T	CSS61000-11T-32A	CSS61000-11T-100A
Wave Generator	AC Sine Wave
Range of Voltage Variations	0~110%
Built-in IEC Level	100%、80%、70%、40%、0%
Dip Phase Set	0°~360° (1° Step)
Duration Time of Voltage Variation	0.5~9999.5T
Internal Time of Voltage Variation	1~9999ms
Voltage Dip Count	0~9999 times
Operating Mode	Automatic dip	Choose one to three phases to dip at the same time
Trigger Mode	Manual, automatic and 50ms
Power Capacity For EUT	Single phase AC 220V ± 10%, max. 16A	Three-phase AC 380V ± 10%, max. 20A/phase	Three-phase AC 380V ± 10%, max. 32A/phase	Three-phase AC 380V ± 10%, max. 100A/phase
Working Power	AC220V (110V Optional) ±10%, 50/60Hz
