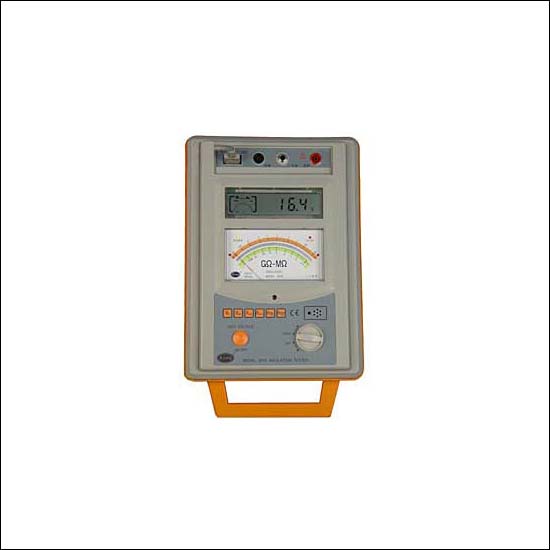

WATER-COOLED DYNAMOTOR INSULATION TESTER

Model No.:

KD2678

Brand:

KDDQ

Colour:

GRAY

Size:

380mmx(L)238mmx(W)152mm(D)

Minimum Order Quantity:

10 Sets

Description

Contact Supplier

It can be used for measuring insulation resistance, absorptance (R60s/R15s)
and polarization index (R10min/R1min) of water-cooled dynamotor
With 2500V rated voltage, test insulation resistance range up to 10GΩ?10000MΩ?
The adjustment for water polarized voltage compensation is not necessary
If the resistance between base and water-pipe is only 3kΩ? the accuracy can be guaranteed
When water-resistance is more than 80kΩ? the accuracy can be guaranteed
Insulation resistance value can be indicated by scale and 3 1/2LCD simultaneously
Auto-ranging dual scales and logarithmic scale for easy reading
Display output voltage and surrounding temperature
The timer accumulates the testing time and displays second and minute
During the test, pressing the button [Rt] can read the resistance value of anytime accurately
from LCD digital display
The value of R15S,R60S ,R10min,R60S/R15S and R10min/R1min can be
automatically tested and memorized
Complete protective function serves safety operation
Rated Vloltage 2500V
Max. Measuing Range 10GΩ
Withstand Voltage AC5kV 50Hz 1min
