WCDMA OBD Vehicle Tracking Device
Share this page
Model No.:
GV500W
Brand:
Queclink
Description
Contact Supplier
Description

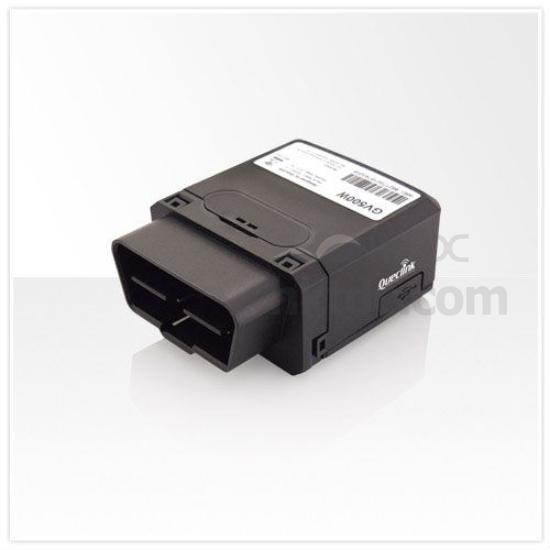

 The GV500W is a vehicle tracking device that plugs into a vehicle's OBDII port. It's compact design allows easy installation. Its internal OBD reader can obtain information from the vehicle's on-board computer and relay it over 2G / 3G networks. Its built in GPS receiver has superior sensitivity and fast time to first fix. It supports dual band UMTS/HSDPA 850 (Band V) / 1900 (Band II) and quad band GSM/GPRS/EDGE frequencies 850/900/1800/1900 MHz allowing the GV500W's location to be monitored in real time or periodically tracked by a backend server and mobile devices. Its built in 3-axis accelerometer allows motion detection and extended backup battery life through sophisticated power management algorithms. System integration is straightforward as complete documentation is provided for the full featured @Track protocol. The @Track protocol supports a wide variety of reports including: emergency, geo-fence boundary crossings, driver behavior, low battery or scheduled GPS position and many other useful functions.

Features:
  • OBDII connectivity, easy to install
  • Dual band UMTS / HSDPA 850 (Band V) / 1900(Band II) and quad band GSM/GPRS/EDGE frequencies 850/900/1800/1900 MHz
  • Wide Operating voltage range 8 to 32V DC
  • Internal u-blox GPS chipset
  • Low power consumption, backup battery built in
  • Embedded full-featured @Track protocol
  • Internal 3-axis accelerometer for power saving and motion detection
  • Internal UMTS / HSDPA / GSM antenna
  • Internal GPS antenna

Queclink Wireless Solutions Co., Ltd.

Queclink Wireless Solutions Co., Ltd.

Shanghai, Mainland China

Manufacturer
