WG165-455A-PR-40-D (6.5-inch)
Model No.:
WG165-455A-PR-40-D
Brand:
wooger
sensitivity:
86dB
RMS:
40W
Impedance:
4Ω
Description
Contact Supplier
Description

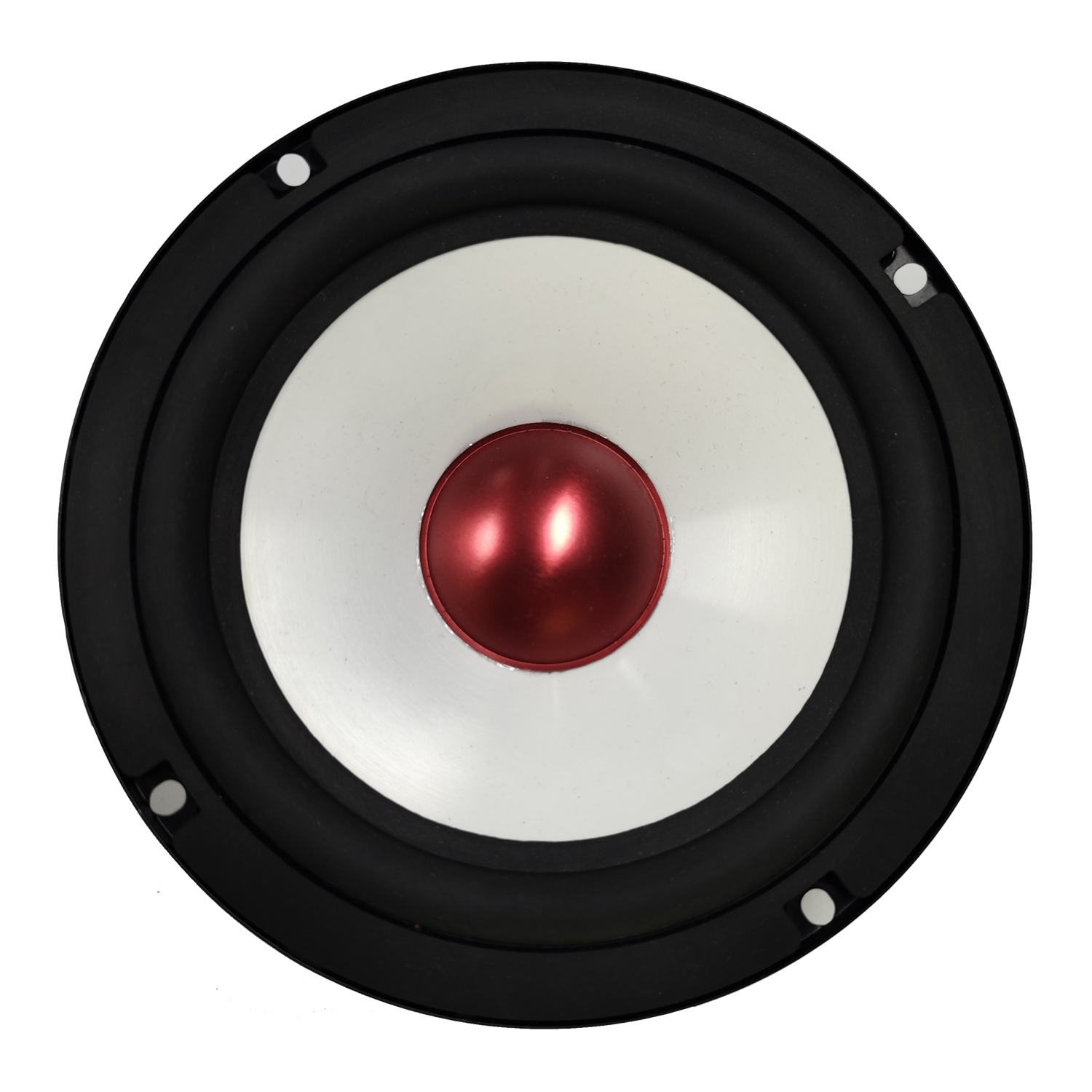

Product Model: WG165-455A-PR-40-D (6.5-inch)
Nominal Impedance: 4Ω
Power (RMS): 40W
Maximum Power (Max): 80W
Voice Coil Diameter: 25mm
Magnetic Circuit: 80*12
Resonant Frequency Fo (Fs): 69Hz
Sensitivity (SPLo): 86dB
Equivalent Volume (Vas): 8.241
Mechanical Q-Factor (Qms): 2.685
Electrical Q-Factor (Qes): 1.049
Total Q-Factor (Qts): 0.754
Mounting Height: 55mm±0.5
Total Weight: 694g
Cone Material: White PP Cone
Nominal Impedance: 4Ω
Power (RMS): 40W
Maximum Power (Max): 80W
Voice Coil Diameter: 25mm
Magnetic Circuit: 80*12
Resonant Frequency Fo (Fs): 69Hz
Sensitivity (SPLo): 86dB
Equivalent Volume (Vas): 8.241
Mechanical Q-Factor (Qms): 2.685
Electrical Q-Factor (Qes): 1.049
Total Q-Factor (Qts): 0.754
Mounting Height: 55mm±0.5
Total Weight: 694g
Cone Material: White PP Cone
