WG165-464E-PR-40-D (6.5-inch)
Model No.:
WG165-464E-PR-40-D
Brand:
wooger
sensitivity:
88dB
RMS:
60W
Impedance:
4Ω
Description
Contact Supplier
Description

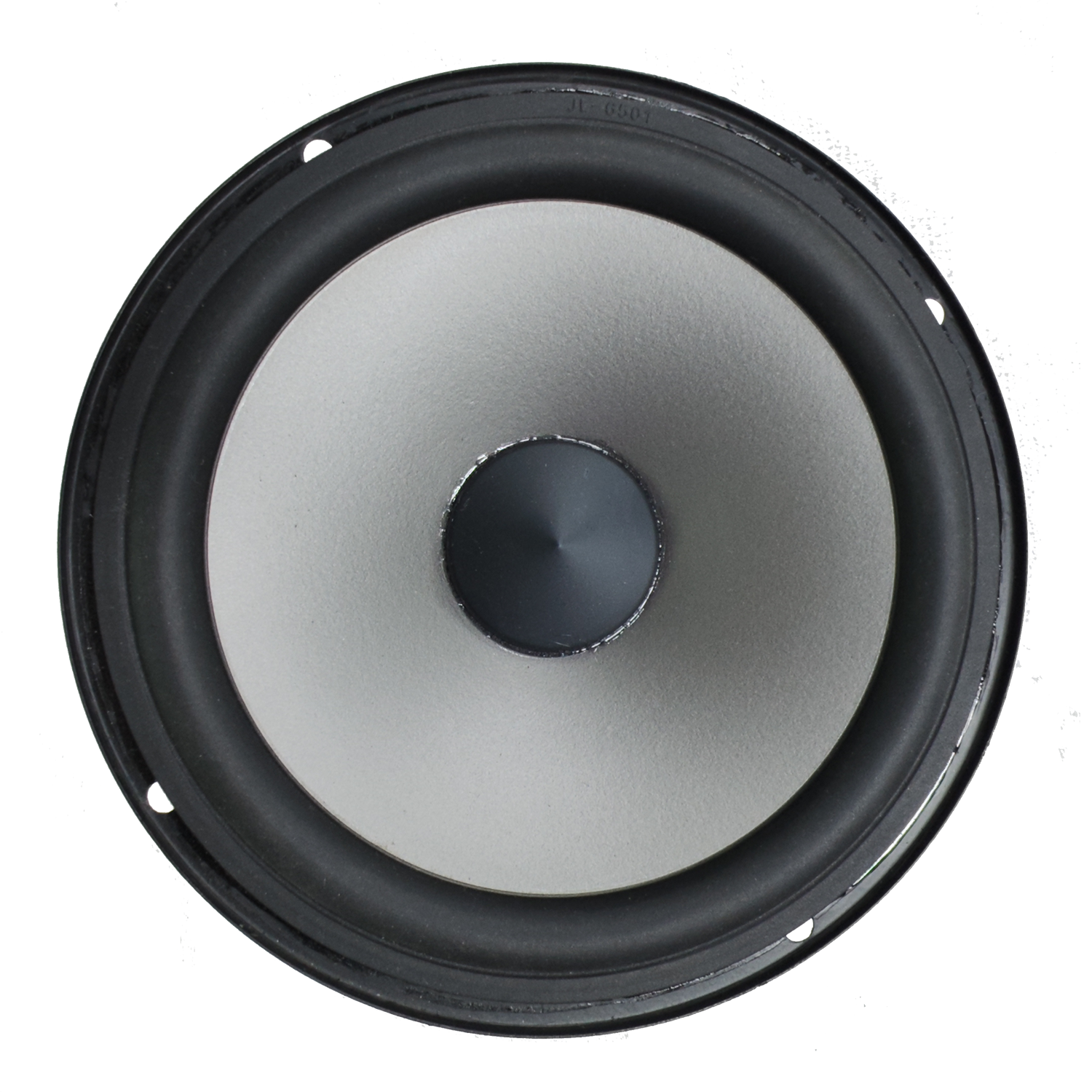

Product Model: WG165-464E-PR-40-D (6.5-inch)
Nominal Impedance: 4Ω
Power (RMS): 60W
Maximum Power (Max): 120W
Voice Coil Diameter: 25mm
Magnetic Circuit: 80*15
Resonant Frequency Fo (Fs): 66Hz
Sensitivity (SPLo): 88dB
Equivalent Volume (Vas): 13.213
Mechanical Q-Factor (Qms): 4.460
Electrical Q-Factor (Qes): 0.961
Total Q-Factor (Qts): 0.791
Mounting Height: 64.5mm±0.5
Total Weight: 720g
Cone Material: PP Cone
Nominal Impedance: 4Ω
Power (RMS): 60W
Maximum Power (Max): 120W
Voice Coil Diameter: 25mm
Magnetic Circuit: 80*15
Resonant Frequency Fo (Fs): 66Hz
Sensitivity (SPLo): 88dB
Equivalent Volume (Vas): 13.213
Mechanical Q-Factor (Qms): 4.460
Electrical Q-Factor (Qes): 0.961
Total Q-Factor (Qts): 0.791
Mounting Height: 64.5mm±0.5
Total Weight: 720g
Cone Material: PP Cone
