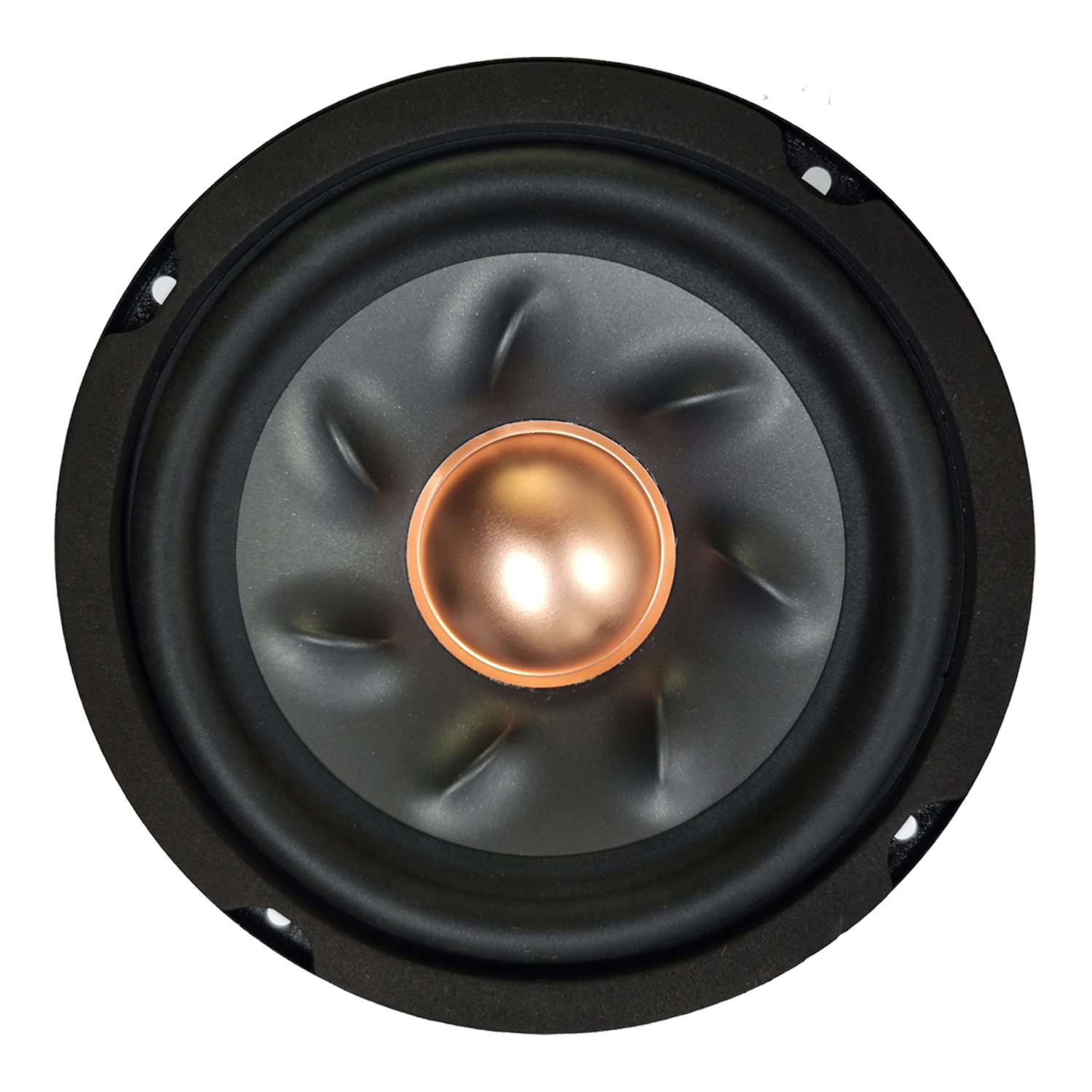

WG165-482B-PR-60-D (6.5-inch)
Model No.:
WG165-482B-PR-60-D
Brand:
wooger
sensitivity:
86dB
RMS:
60W
Impedance:
6Ω
Description
Contact Supplier
Description
Product Model: WG165-482B-PR-60-D (6.5-inch)
Nominal Impedance: 6Ω
Power (RMS): 60W
Maximum Power (Max): 120W
Voice Coil Diameter: 25mm
Magnetic Circuit: 100*20
Resonant Frequency Fo (Fs): 51Hz
Sensitivity (SPLo): 86dB
Equivalent Volume (Vas): 15.343
Mechanical Q-Factor (Qms): 9.286
Electrical Q-Factor (Qes): 0.671
Total Q-Factor (Qts): 0.626
Mounting Height: 75mm±0.5
Total Weight: 1328g
Cone Material: Gray PP Cone with Cyclone Pattern
Nominal Impedance: 6Ω
Power (RMS): 60W
Maximum Power (Max): 120W
Voice Coil Diameter: 25mm
Magnetic Circuit: 100*20
Resonant Frequency Fo (Fs): 51Hz
Sensitivity (SPLo): 86dB
Equivalent Volume (Vas): 15.343
Mechanical Q-Factor (Qms): 9.286
Electrical Q-Factor (Qes): 0.671
Total Q-Factor (Qts): 0.626
Mounting Height: 75mm±0.5
Total Weight: 1328g
Cone Material: Gray PP Cone with Cyclone Pattern
