WG165-501A-PR-60-D (6.5-inch)
Model No.:
WG165-501A-PR-60-D
Brand:
wooger
sensitivity:
89dB
RMS:
60W
Impedance:
4Ω
Description
Contact Supplier
Description

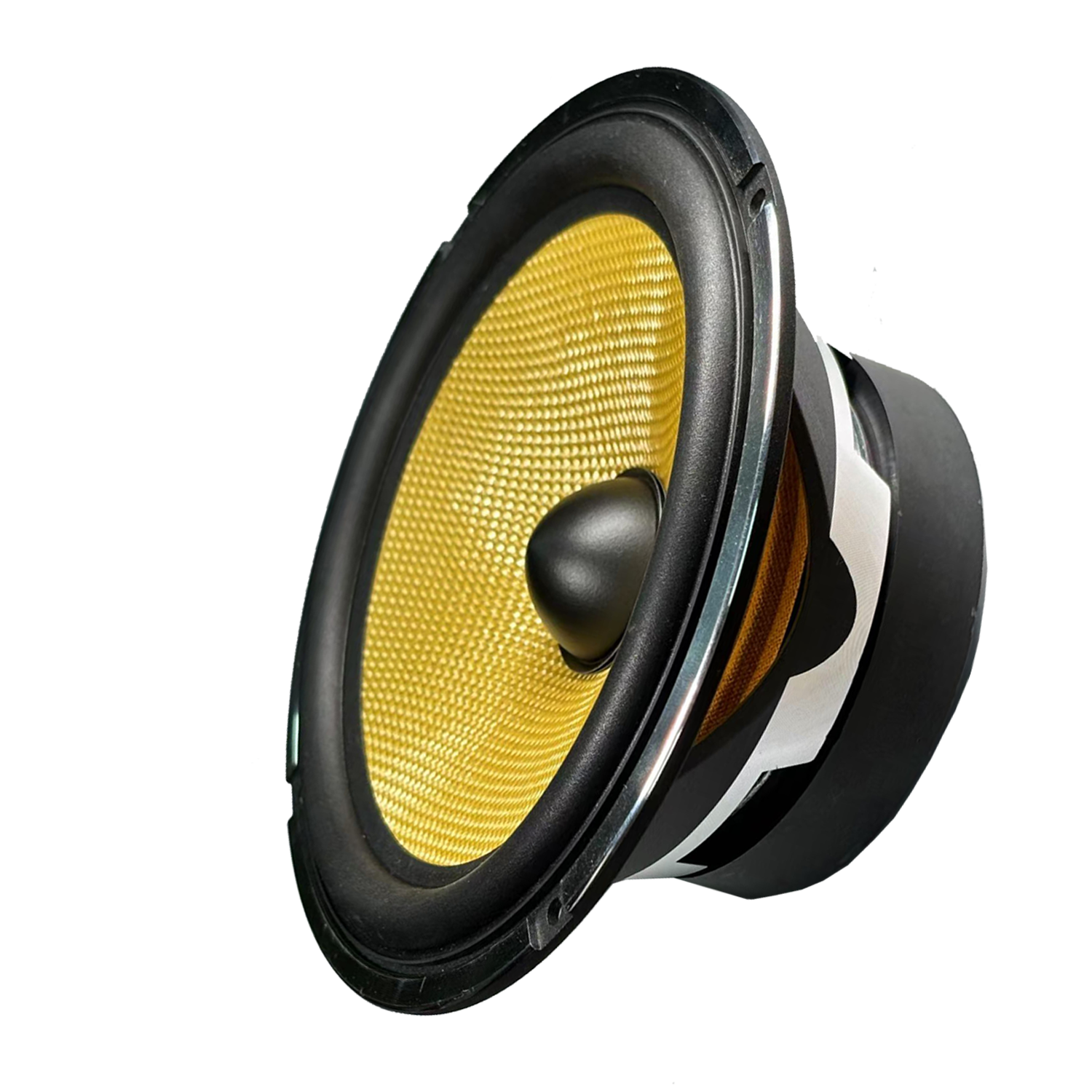

Product Model: WG165-501A-PR-60-D (6.5-inch)
Nominal Impedance: 4Ω
Power (RMS): 60W
Maximum Power (Max): 120W
Voice Coil Diameter: 25mm
Magnetic Circuit: 100*18
Resonant Frequency Fo (Fs): 63Hz
Sensitivity (SPLo): 89dB
Equivalent Volume (Vas): 11.492
Mechanical Q-Factor (Qms): 6.924
Electrical Q-Factor (Qes): 0.553
Total Q-Factor (Qts): 0.509
Mounting Height: 66mm±0.5
Total Weight: 1156g
Cone Material: Yellow Woven Cone
Nominal Impedance: 4Ω
Power (RMS): 60W
Maximum Power (Max): 120W
Voice Coil Diameter: 25mm
Magnetic Circuit: 100*18
Resonant Frequency Fo (Fs): 63Hz
Sensitivity (SPLo): 89dB
Equivalent Volume (Vas): 11.492
Mechanical Q-Factor (Qms): 6.924
Electrical Q-Factor (Qes): 0.553
Total Q-Factor (Qts): 0.509
Mounting Height: 66mm±0.5
Total Weight: 1156g
Cone Material: Yellow Woven Cone
