WG182-9A-PR-60-D (7-inch)
Model No.:
WG182-9A-PR-60-D
Brand:
wooger
sensitivity:
88dB
RMS:
60W
Impedance:
4Ω
Description
Contact Supplier
Description

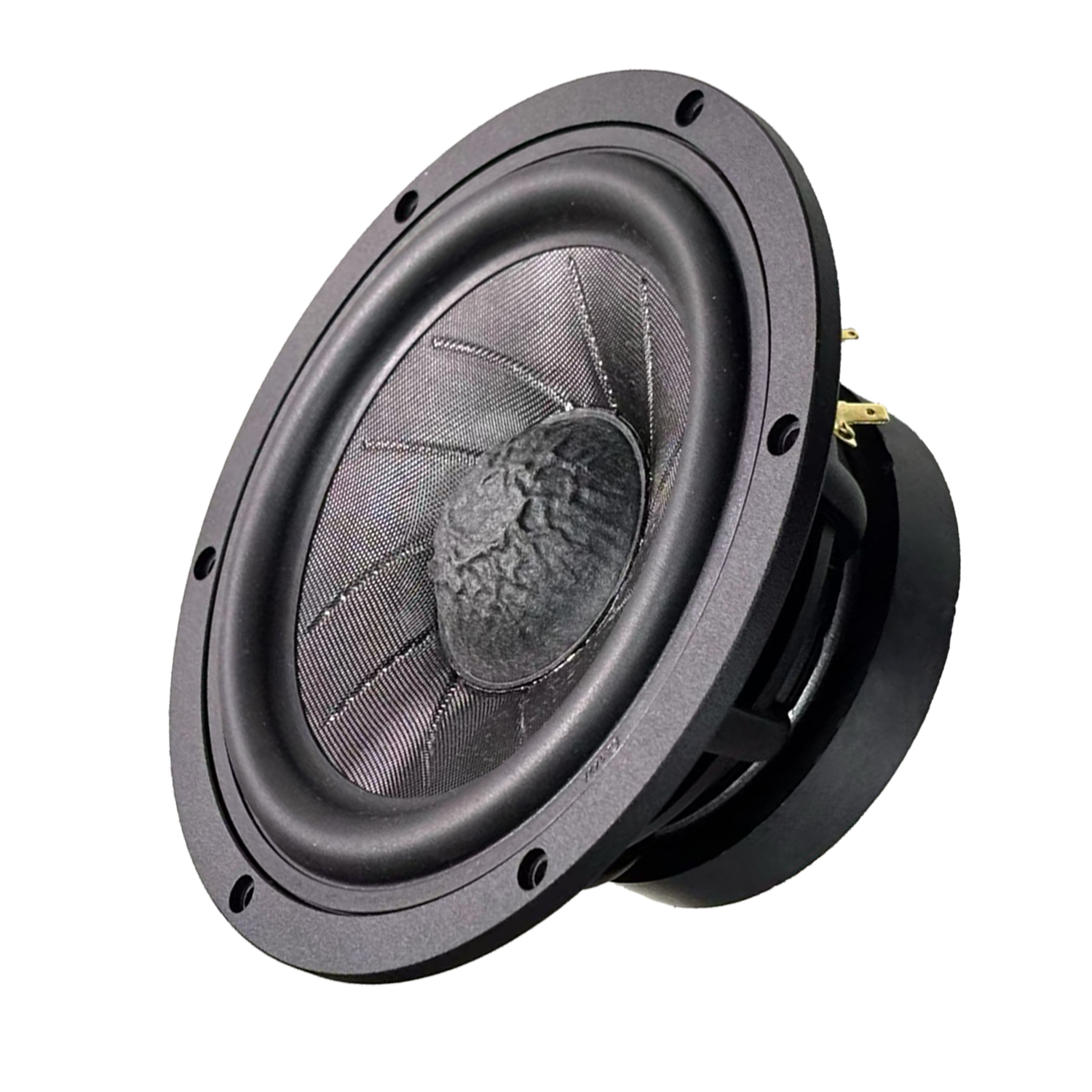

Product Model: WG182-9A-PR-60-D (7-inch)
Nominal Impedance: 4Ω
Power (RMS): 60W
Maximum Power (Max): 120W
Voice Coil Diameter: 35mm
Magnetic Circuit: 110*18
Resonant Frequency Fo (Fs): 53Hz
Sensitivity (SPLo): 88dB
Equivalent Volume (Vas): 12.800
Mechanical Q-Factor (Qms): 10.971
Electrical Q-Factor (Qes): 0.399
Total Q-Factor (Qts): 0.385
Mounting Height: 77mm±0.5
Total Weight: 1711g
Cone Material: Composite Fiberglass
Nominal Impedance: 4Ω
Power (RMS): 60W
Maximum Power (Max): 120W
Voice Coil Diameter: 35mm
Magnetic Circuit: 110*18
Resonant Frequency Fo (Fs): 53Hz
Sensitivity (SPLo): 88dB
Equivalent Volume (Vas): 12.800
Mechanical Q-Factor (Qms): 10.971
Electrical Q-Factor (Qes): 0.399
Total Q-Factor (Qts): 0.385
Mounting Height: 77mm±0.5
Total Weight: 1711g
Cone Material: Composite Fiberglass
