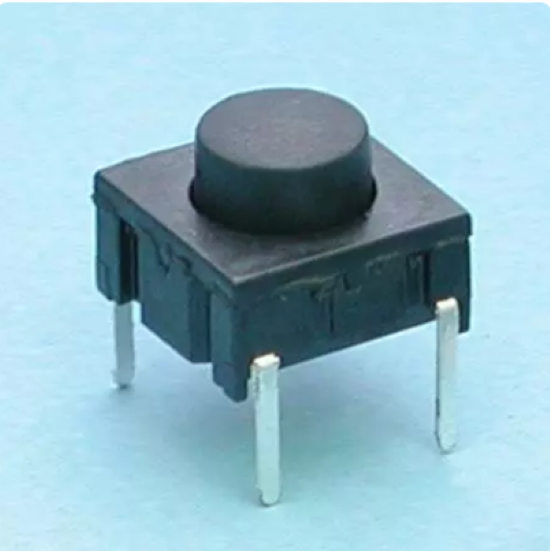

Washable Tact Switch - PC

WTM Washable Tact Switches

The feature of this product is it can be combined into a 5-way navigation switch and with a illuminated model is available. With silicone button, larger stroke than ordinary tact switch. Various types of cap, color and pattern for choice. It is completely sealed to IP67 standards. This switch is perfect for Automotive electronics, Elevator, Industrial oven.

Features

• Carry IP67 protection degree
• Through-hole type

Specification

• Rating: 50mA, 24VDC
• Electrical Life: 1,000,000 cycles
• Contact Resistance: 50mΩ max. (initial)
• Insulation Resistance: 10MΩ min. 100VDC
• Dielectric Strength: 250VAC/1 min.
• Operating Temperature: -40°C to +160°C

Materials

• HOUSE：Nylon
• ACTUATOR：Nylon
• COVER：Nylon
• SEALING+SPRING：Silicon
• CONTACT：Stainless steel silver plating
• TERMINAL：Copper alloy

•


• Application

  • Vehicle electronics
  • Elevator and escalator
  • Industrial oven
