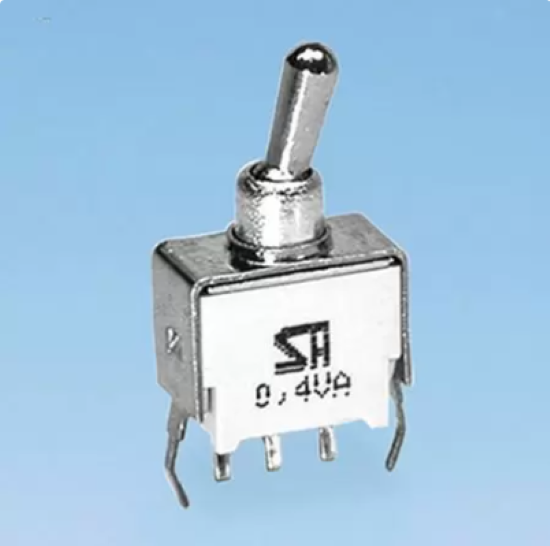

Washable Toggle Switch V-bracket SPDT

ES30-T Sealed Subminiature Toggle Switches (ET)

This toggle switch features vertical bracket termination, metal bushing and 2.54 mm pitch. Its structure is completely sealed and washable. Twin-contact clip mechanism is used in the contact section to ensure reliability.

Features

• Metal Bushing
• Sealed construction
• Circuit: SPDT

Specification

• Contact Rating: max 0.4 VA max @ 48 V AC or DCMin. 1μA /20V AC or DC
• Life Cycle: 10,000 make and break cycles at full load
• Contact Resistance: 50 mΩ max. initial @2-4VDC,100 mA
• Insulation Resistance: 500 MΩ min.
• Dielectric Strength: 500 V RMS @ sea level.
• Operating Temperature: -30°C to 85°C

Materials

• ACTUATOR: Copper alloy, chrome plated, internal o-ring seal are available
• BUSHING & HOUSING: Stainless Steel
• CASE: Glass filled nylon 4/6, flame retardant heat stabilized (UL94V-0)
• CONTACT: Phosphor bronze gold-plated over nickel plated
• TERMINAL: Phosphor bronze tin plated over nickel plated
• TERMINAL SEAL: Epoxy

Application

• Telecommunications
• Instrumentation
• Computers & peripherals
• Medical equipment
• Electronic appliance
