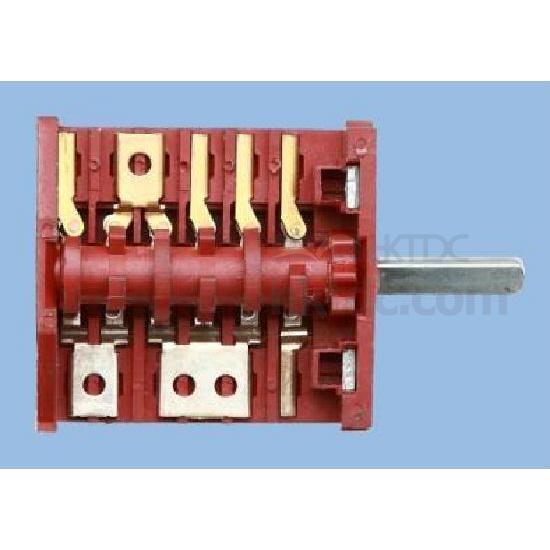

Water Heater Rotary Switch
Model No.:
ZES-6
Brand:
Hengguan
Port:
Shunde
Type of Payment:
T/T or L/C at sight
Minimum Order Quantity:
10000
Description
Contact Supplier
Description
Product Description
The rotary switch is mainly used for the electric oven, electric oven, electric cooker and high-power household appliances and mechanical equipment.By mechanical cam breaking mechanism, simple structure, stable performance, safety, environmental protection, reliable, can rotate 360 degrees, between the stall angle (90/50/30 is 2 to 11 gear function).
Product Feature
Main technical parameters:
Temperature range:-10-150 degree
Rated voltage / current:250VAC/16A
Electrical strength:1500VAC/1min/0.5mA
Insulation resistance: equal to or greater than 100megohm Contact resistance:less than or equal 30megohm
Product Specification/Models
ZRS-6 series
Application
home appliance
The rotary switch is mainly used for the electric oven, electric oven, electric cooker and high-power household appliances and mechanical equipment.By mechanical cam breaking mechanism, simple structure, stable performance, safety, environmental protection, reliable, can rotate 360 degrees, between the stall angle (90/50/30 is 2 to 11 gear function).
Product Feature
Main technical parameters:
Temperature range:-10-150 degree
Rated voltage / current:250VAC/16A
Electrical strength:1500VAC/1min/0.5mA
Insulation resistance: equal to or greater than 100megohm Contact resistance:less than or equal 30megohm
Product Specification/Models
ZRS-6 series
Application
home appliance
