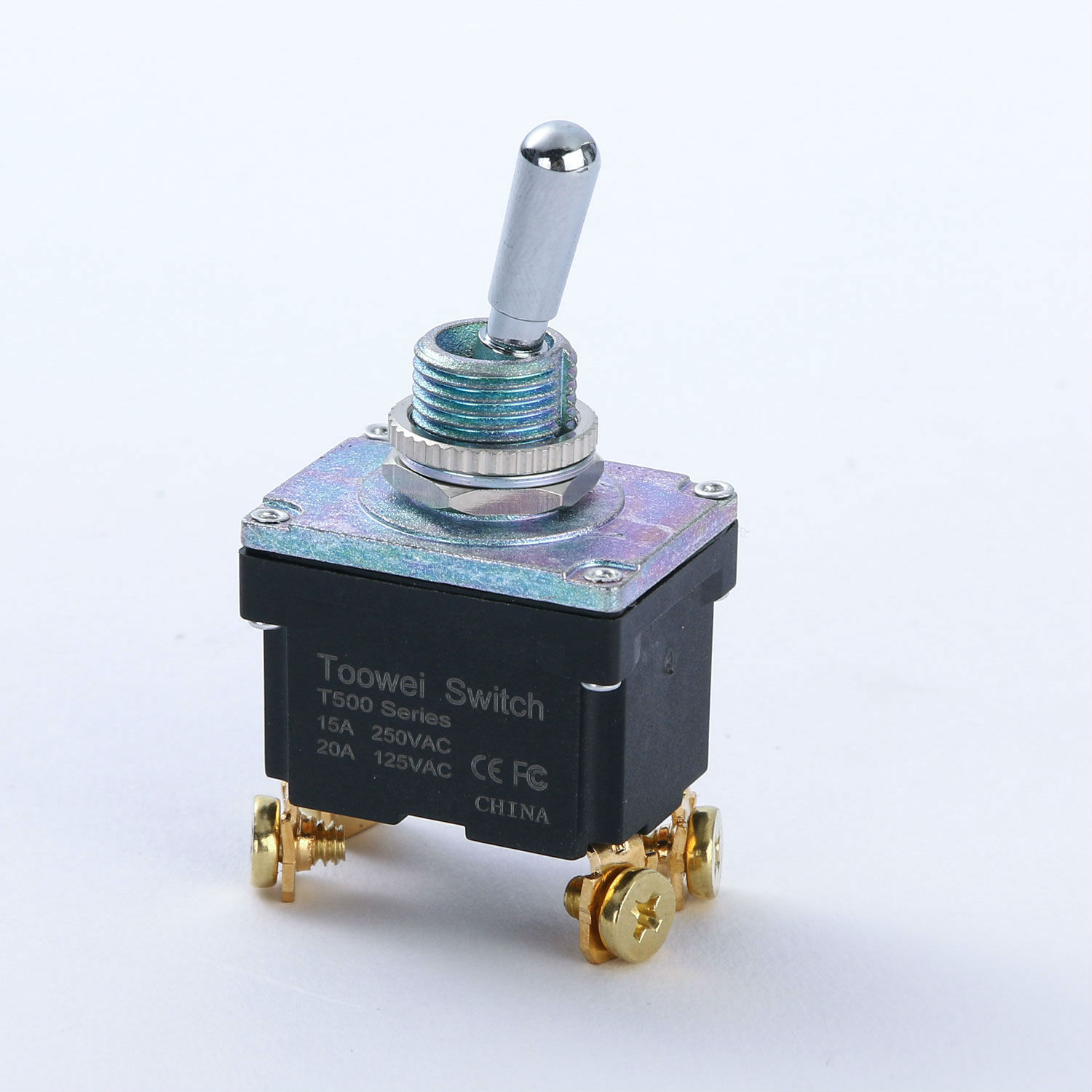

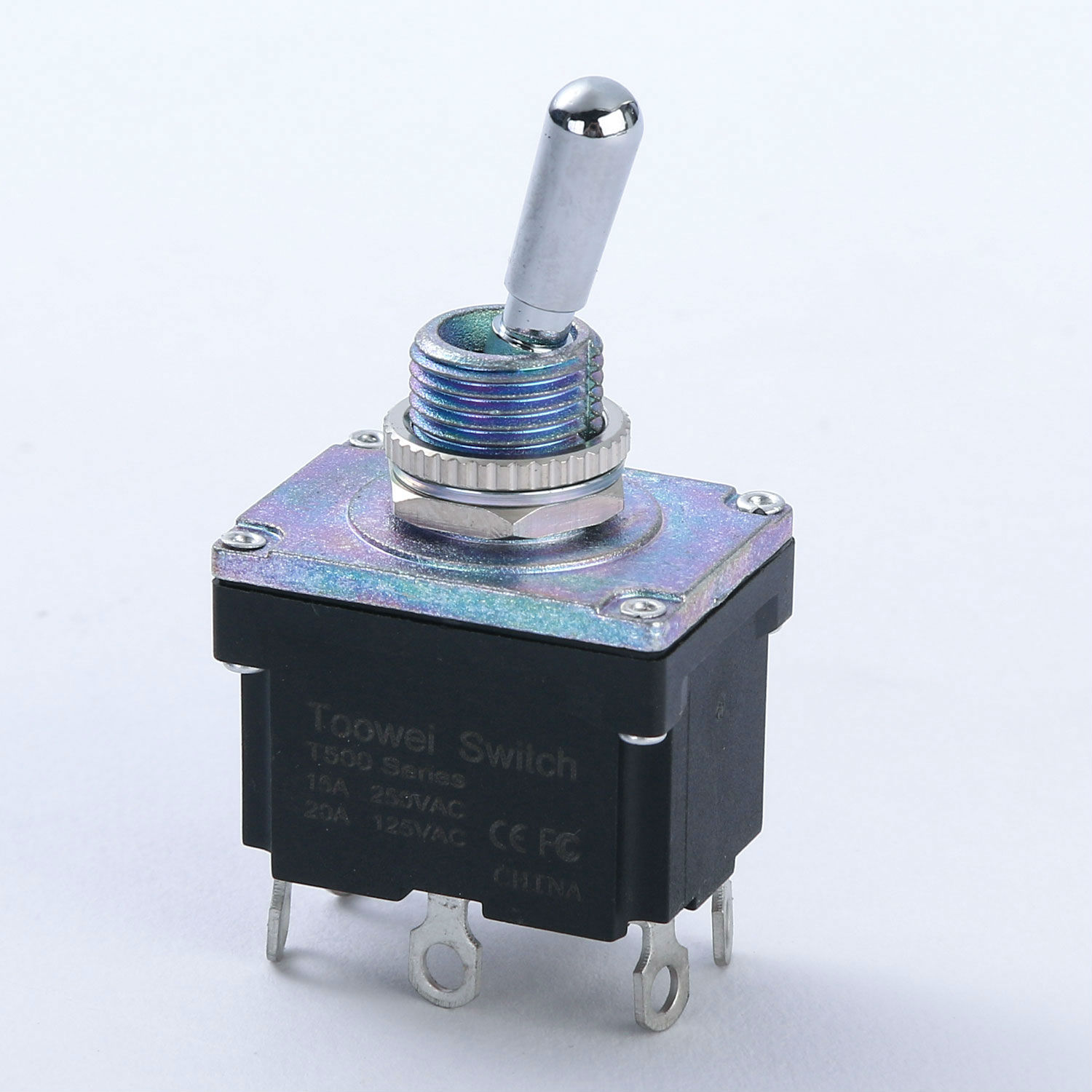

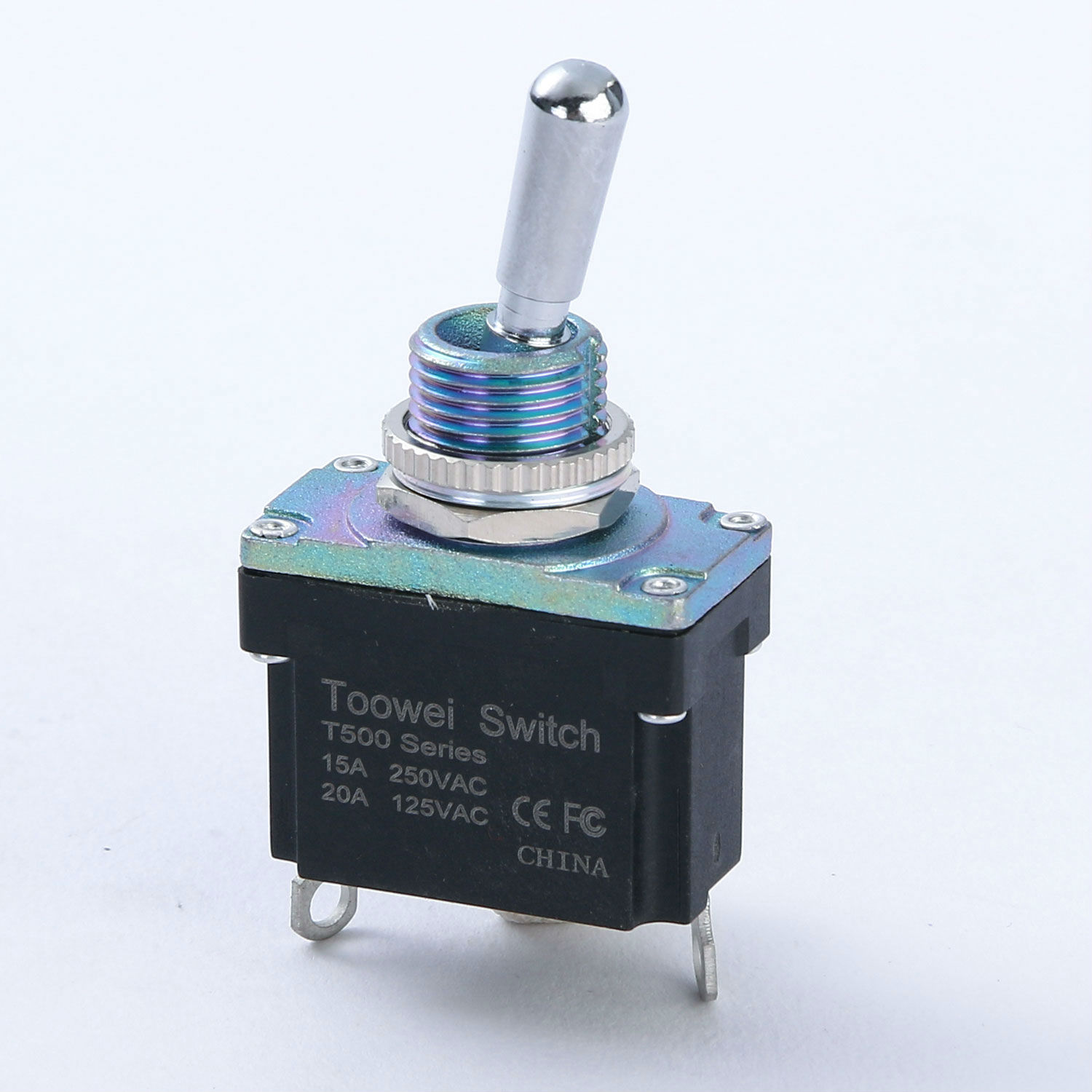

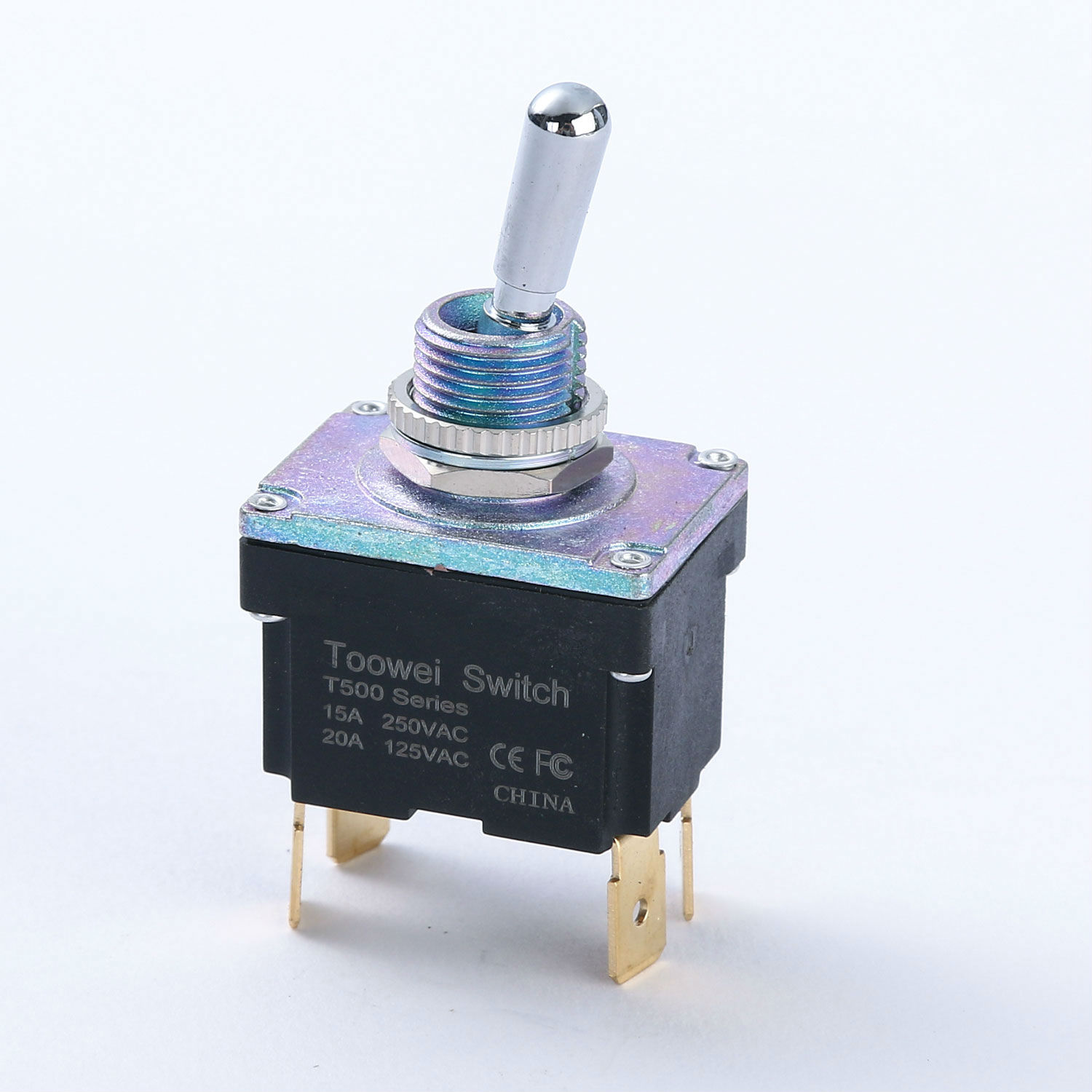

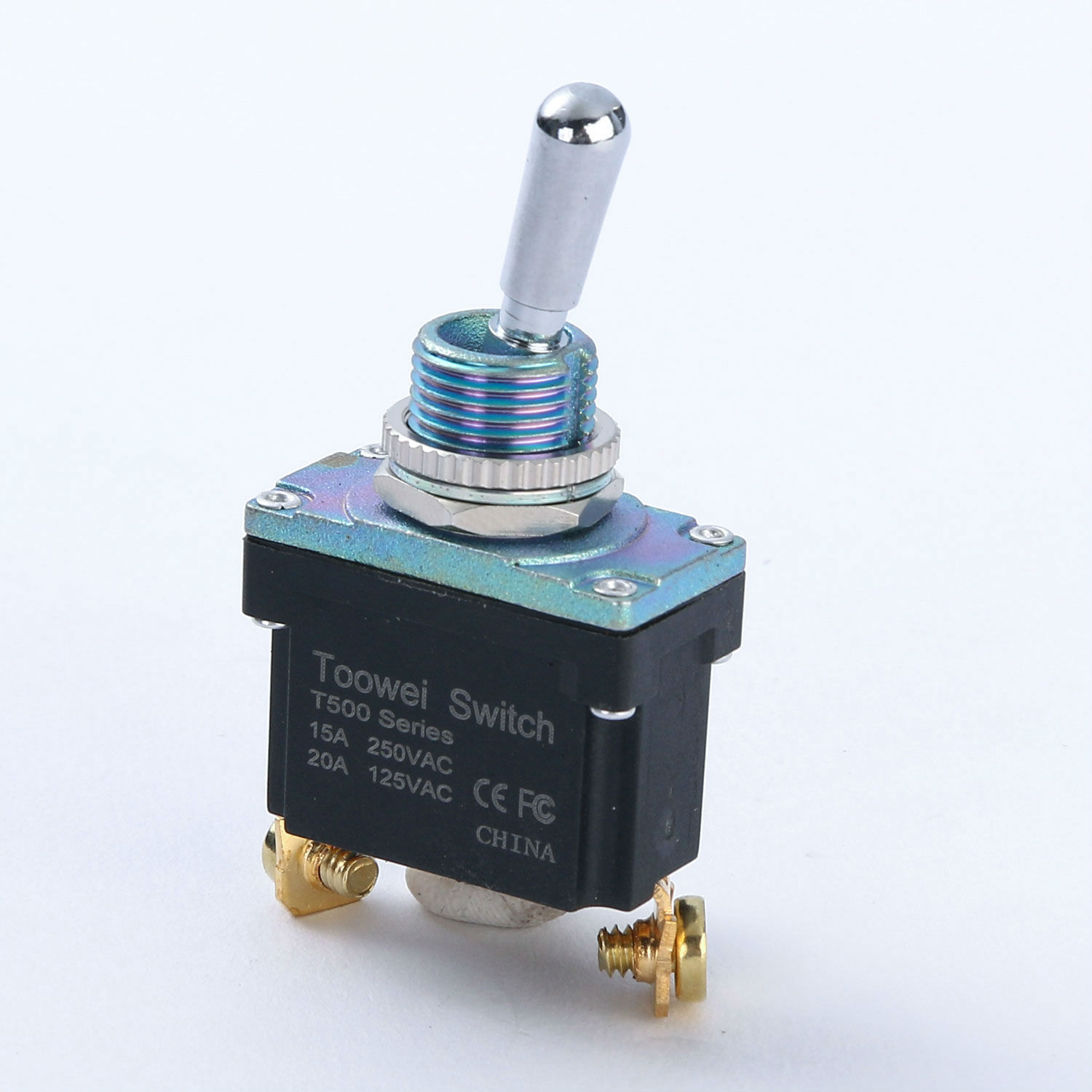

Waterproof 2 Pin Toggle Switch
Model No.:
T500
Brand:
TOOWEI
Package:
Yes
Customised:
Yes
Max. Voltage:
250VAC
Operating Temperature:
-25 c to +80 c
Max. Current:
20A
Mechanical Life:
500000 CYCLES, 50000 times
Max. Working Pressure:
24N
Protection Level:
IP67
Description
Contact Supplier
Description
This waterproof 2pin toggle switch is designed for car use and offers simple and reliable controls. It has a polypropylene base and has a lever on top for operation. The waterproof 2pin toggle switch is easy to install and flaunts a long working life.
- Waterproof 2pin toggle switch for car use.
- Base material: polypropylene material.
- Rating value: 15A 250VAC 10A 125VAC 3/4HP 125~25.
- Mechanical life: ≥50,000 times.
- Electrical life: ≥20,000 times.
- Operating force: ≤24N.
- Dielectric strength:1,000V RMS (least).
- Insulation resistance :100MΩ(least).
- Withstand voltage: ≥1500V 50/60Hz last for 1min.
- Humidity: <85% Rh.
- Vibration: 10~55Hz 1.5mm double amplitude.
- Mounting method: bushing mount.
- Poles: SPDT DPDT.
- Dimensions: diameter: Φ12.0mm+0.2.
