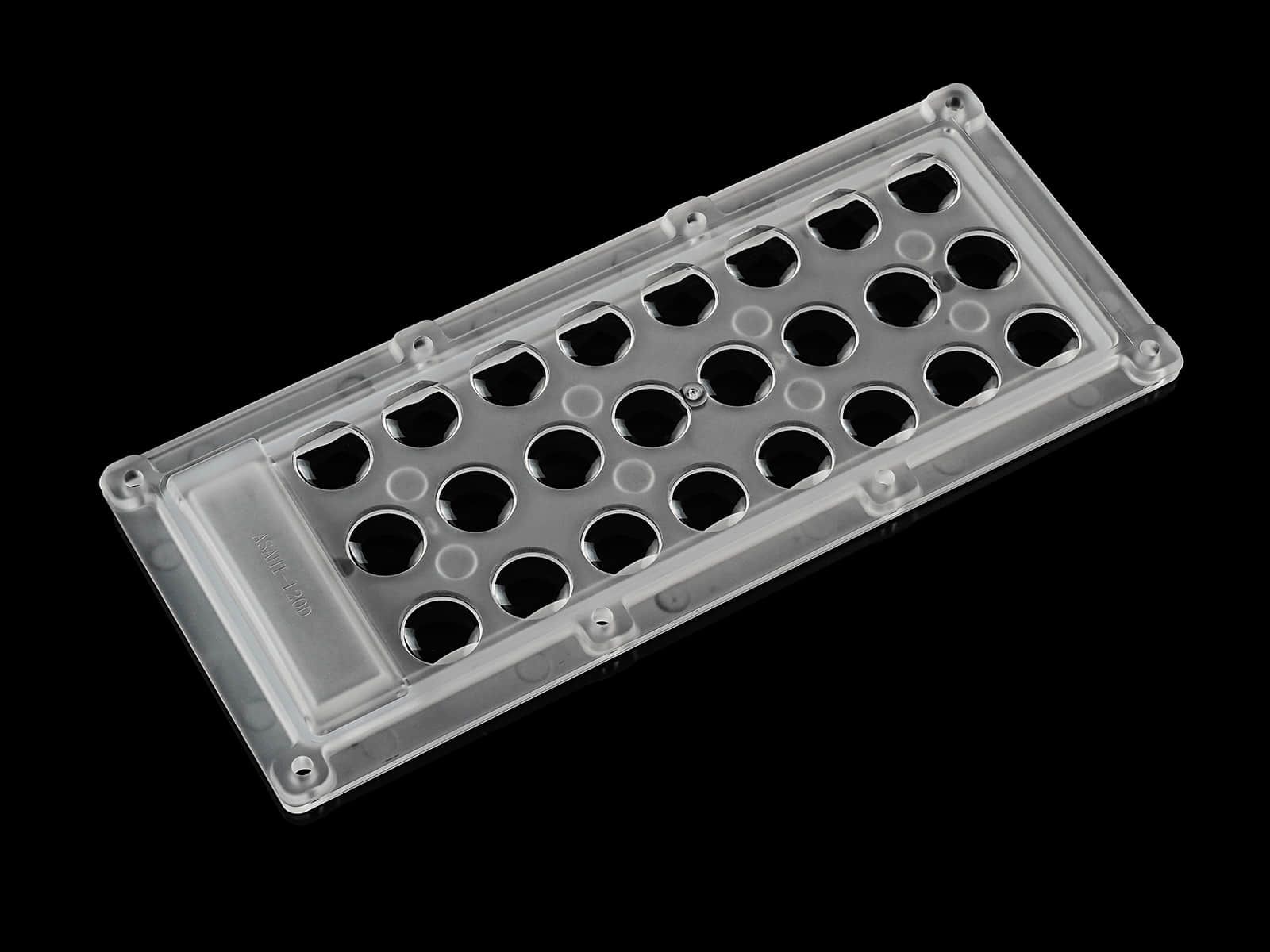

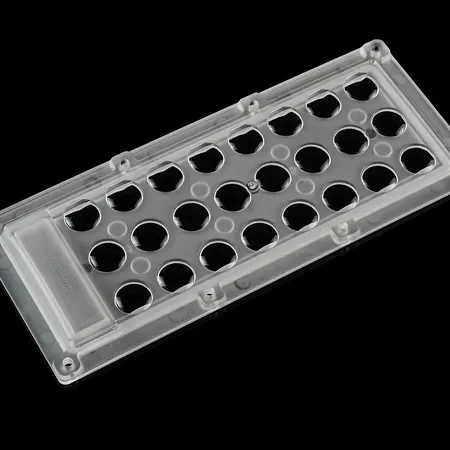

Wide-area Light Optics 3x8 Lens 5050LED 120 Degree

Model: ALHB173D24LED120G

Diameter: 173mm

Height: 9.3mm

Angle: 30°, 60°，90°,  120°, 30x90°

Material:PMMA

Transmittance: >93%

LED Type:  2835/ 3030/ 5050LED

Lighting Applications: Street lighting,Architecture lighting,High Bay lighting

1. 3x8 lens high power design 100W 24LEDs 90° beam for High Bay lighting

2. Its compatibility with a range of LED types, including 2835, 3030, and 5050, catering to diverse budget requirements of different customers,providing customers with greater flexibility and options.

3. With IP66 excellent waterproof and dustproof rating,making the lens suitable for various outdoor lighting applications, and challenging environmental conditions.

IP66 3x8 lens 24LEDs 30x90°

It shares the same profile 173mmx71.4mm as the 2x6 lens does,

which is specially desgined for the application on corridors, such as logistics warehouses and supermarkets.

The beam angle is available for street light T2M, T5, and high bay lighting  30°, 60°，90°,  120°, 30x90°

The high efficiency and powerful lumen output to meet customers’ required power

It can be compatible with different sizes and quantities of LED chips such as  2*2835/2*3030,  3*2835/3*3030,  4*2835/4*3030, and 5050LED

Our Services

• Innovative in LED Optical Engineering and Manufacturing Services
• Quick response (Quick-turn of new development)
• Strong R&D Team (Excellent engineering team with 10 years of experience), committed to bringing our customers the best LED optical designs.
• Production (Advanced equipment, Tooling dimensional accuracy is within 0.01mm, Optical finishing accuracy is within 0.001mm, Tolling lifetime can reach 500,000 shots.)
• Marketing (Wide range of products)
• One-stop service for private mold optics design, and mass production.
• Services (Thorough and satisfactory before & after-sales service)
