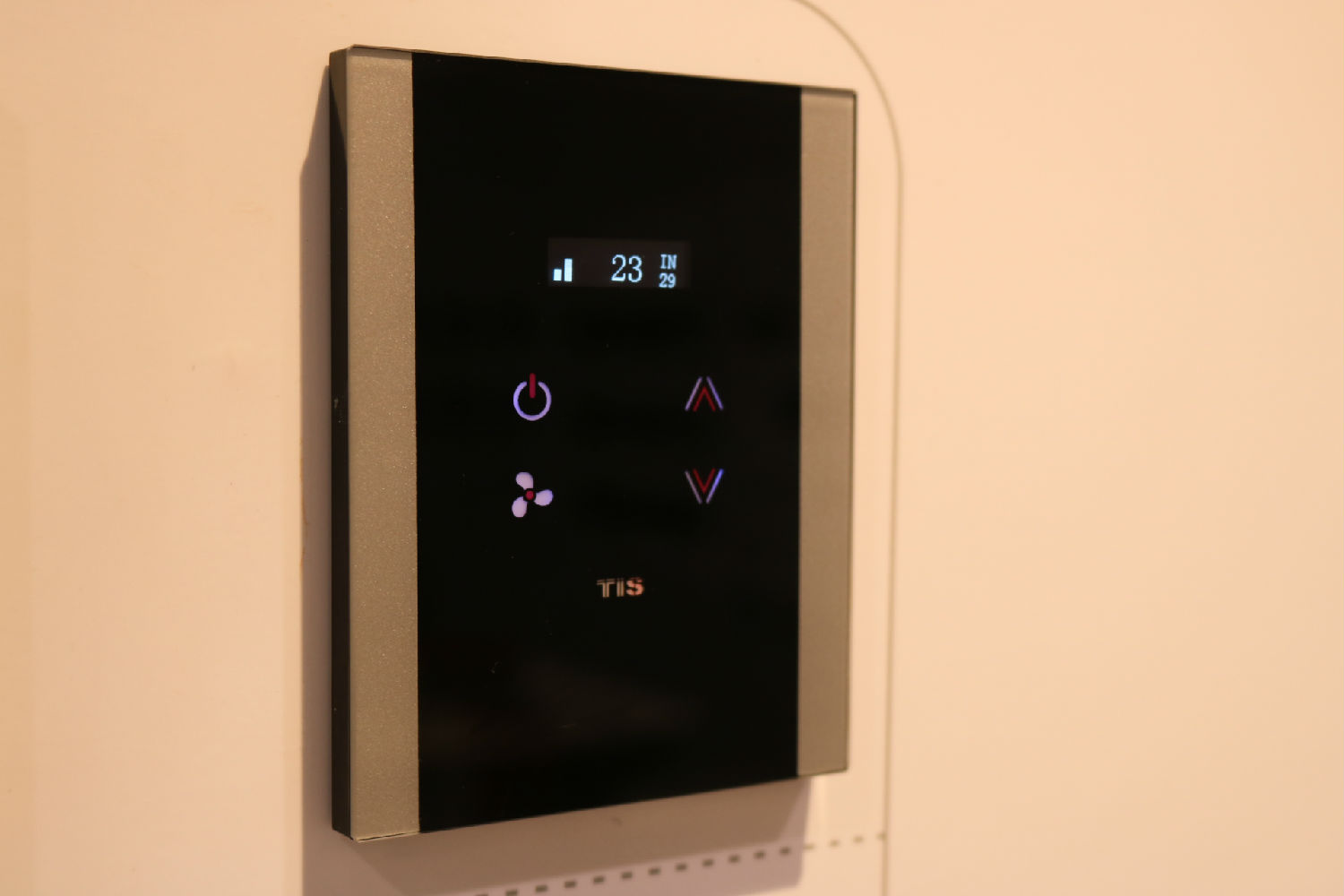

Wifi Smart Touch Thermostat
Production Lead Time:
2 day(s)
Model No.:
VEN-AC-3R-HC
Brand:
TIS
Colour:
Black, White
Port:
China, Hong Kong
Type of Payment:
T/T
Minimum Order Quantity:
10
Description
Contact Supplier
Description
Intended use
Outputs
Output switching current
Output switching times
Mounting
Weight
Housing
Temperature range
Air humidity
- To Air condition.
- Power supply
- Input Voltage
- Output Power
- Protection
- Current consumption
- 80-240 VAC 50/60 Hz
- 3W / 12V
- Built in Protection fuse
- 10-30 mA / 12 V DC
Outputs
- Number of channels
- Nominal voltage
- Nominal current per channel
- 3 relay for Compressor, heat, fan control
- 0 – 230 V AC 50/60 Hz
- 8 A / 230 VAC
Output switching current
- Max switching current
- Max Continues current
- Max. switching Voltage
- 10A/230 VAC Resistive
- 6A/230 VAC florescent
- 8A/230 VAC
- 277VAC / 30VDC
- Mechanical Endurance
- > 10,000,000 OPS
Output switching times
- Operating time
- Releasing time
- Max. operating frequency
- 8mS (at nomi. Volt)
- 5 mS (at nomi. Volt)
- 25 cycle/min
- WIFI Signal
- 2.4 GHz
- 802.11 b/g/n
- approx. 30ms
Mounting
- Wall mount
- To US EU or UK junction box size.
- Display
- touch buttons
- Temp sensor
- Infrared Receiver
- Backlight
- TIS AIR
- Upgrading
- 0.9 inch OLED Screen
- 5 touch Capacitive buttons for control …
- Built in Resistive Temp Sensor
- Control it by TIS Remote control
- 2 colors Backlight indicators
- TIS Protocol massages and commands
- By WIFI Connection
Weight
- Without packaging
- 150 g
- Width x length x height
- 85mm * 109mm * 42mm
Housing
- Materials
- Internal Parts color
- IP rating
- PC anti fire / Glass in front
- Black or White
- IP 50
Temperature range
- Operation
- Storage
- Transport
- -10…60°C
- -20…50°C
- -25…75°C
Air humidity
- <80% non-condensing
