Wire Splice Heat Shrink Tube
Production Lead Time:
28 day(s)
Model No.:
A1
Brand:
UPM Heat Shrink
Colour:
Black, Clear
Port:
Dalian, China
Type of Payment:
T/T,D/P
Minimum Order Quantity:
100 piece(s)
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description

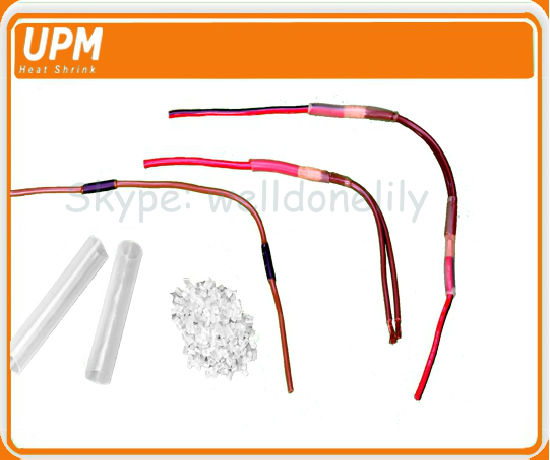

A1 wire splice heat shrink tube
Features
• Flame retardant (Black only)
• Operating temperature: -40~135 ℃
• High shrink ratio (4:1)
• Shrink temperature: 135 ℃
• Semi-rigid polyolefin outer layer
• RoHS compliant
• Polyamide adhesive liner
• Voltage Class：600 V
Typical application
• Ideal for wire to metal splices and wire to wire joints in automotive industry
• Clear tubing is specially designed for sealing and insulation of components where see-through inspection is required
Ordering
• Standard color : black ,clear
Cross reference
• Raychem/Tyco : ES1000/ES2000
Dimensions
Reference As supplied(mm)After recovered(mm)Standard length
UPM A1 ID min. ID max. WT nom. m/spool
5.7/1.3 5.7 1.3 1.2 100
7.4/1.7 7.4 1.7 1.4 100
10.8/2.5 10.8 2.5 2.0 100
17.8/4.4 17.8 4.4 2.3 50
Features
• Flame retardant (Black only)
• Operating temperature: -40~135 ℃
• High shrink ratio (4:1)
• Shrink temperature: 135 ℃
• Semi-rigid polyolefin outer layer
• RoHS compliant
• Polyamide adhesive liner
• Voltage Class：600 V
Typical application
• Ideal for wire to metal splices and wire to wire joints in automotive industry
• Clear tubing is specially designed for sealing and insulation of components where see-through inspection is required
Ordering
• Standard color : black ,clear
Cross reference
• Raychem/Tyco : ES1000/ES2000
Dimensions
Reference As supplied(mm)After recovered(mm)Standard length
UPM A1 ID min. ID max. WT nom. m/spool
5.7/1.3 5.7 1.3 1.2 100
7.4/1.7 7.4 1.7 1.4 100
10.8/2.5 10.8 2.5 2.0 100
17.8/4.4 17.8 4.4 2.3 50
