Wire-to-Board Connector
Production Lead Time:
7 day(s)
Model No.:
CNJST A1251AWV
Port:
Shanghai
Minimum Order Quantity:
1,000 piece(s)
Description
Contact Supplier
Description

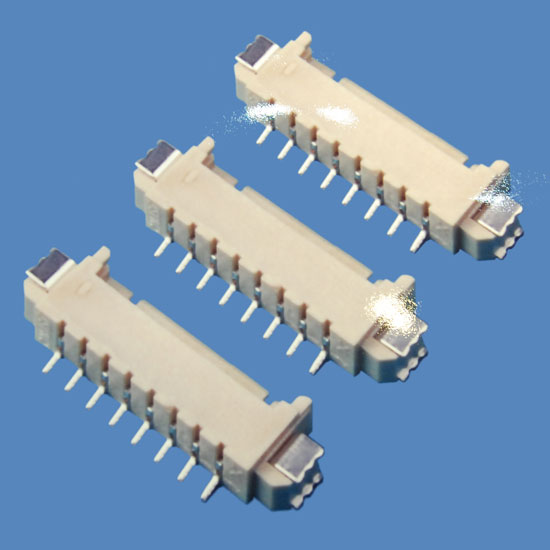

This vertical-angle wire-to-board connector features a 1.25mm pitch with 2-16 connectors. The top-quality connector guarantees reliable connection and a long lifespan. The compact size makes it easy to install.
- Pitch: 1.25mm.
- Pole: 2-16.
- Current rating: 1A AC, DC.
- Voltage rating: 125V AC, DC.
- Temperature range: -25-85 degree Celsius.
- Contact resistant: 20m Omega Max.
- Insulation resistance: 100M omega Min.
- Withstanding voltage: 500V AC/minute.
