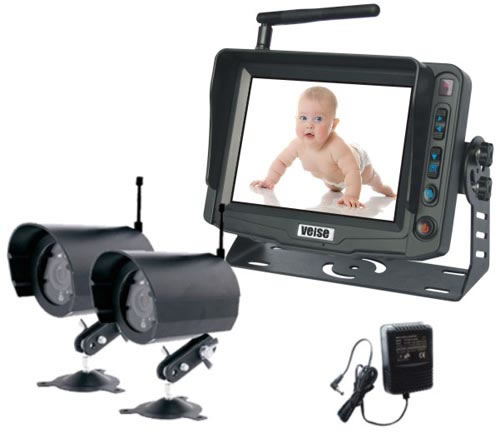

Two wireless color CCD camera (model: DF-3102W):

• Alloyed shell and water-proof designed for day and night use.
• Image pick-up device: 1/4" color CCD.
• Color system: PAL/NTSC.
• Horizontal resolution 420 TV lines.
• Video output:1.0Vp-p 75 ohm.
• Power input: DC 12~32V.
• IP66 waterproof resistance grade.
• Built-in & omni-directional antenna.
• Estimate of 100 meter wireless transmission distance without block.
• High intensity infrared night vision illumination (built in 12 IR on).
• External dimensions: width 58 x height 65 x thickness 80mm.

5 inches wireless digital LCD color monitor (model: SP-526):

• 5" digital screen color reversing monitor with removable sun visor.
• Built in 4CH (2.414/2.432/2.450/2.468)GHz wireless receiver.
• Receiving sensitivity: ≤-80dBm.
• Color system: PAL/NTSC.
• Display resolution: 640 (H) x 3RGB x 480 (V) dot.

Setting up reverse camera image normal or mirror and the priority:

• Setting up the reversing image delay time: 0-30”.
• Responding time less than 2” when reversing.
• Wide view angle (CR>10): (up / down): 45/65, (left / right): 65/65.
• Brightness (cd/m2): 300.
• Contrast ratio: 500:1.
• Weight approx: 290g.

Electrical & hardware accessories:

• Flat surface / in dash and universal monitor mounts.
• Full function wireless remote controller.
• Earphone.
• DC 12V power supply adapter.
• User manual.
