Introduction :

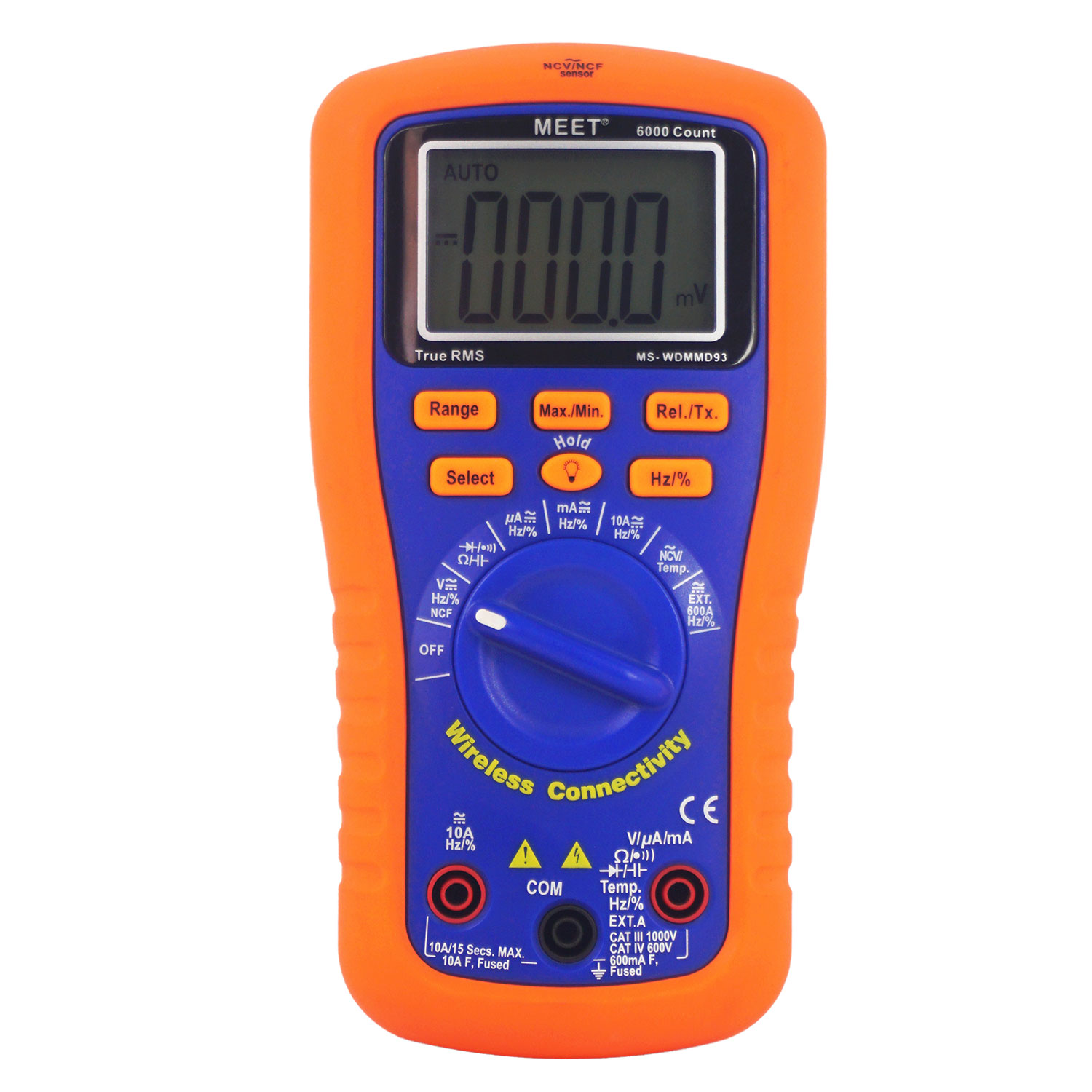

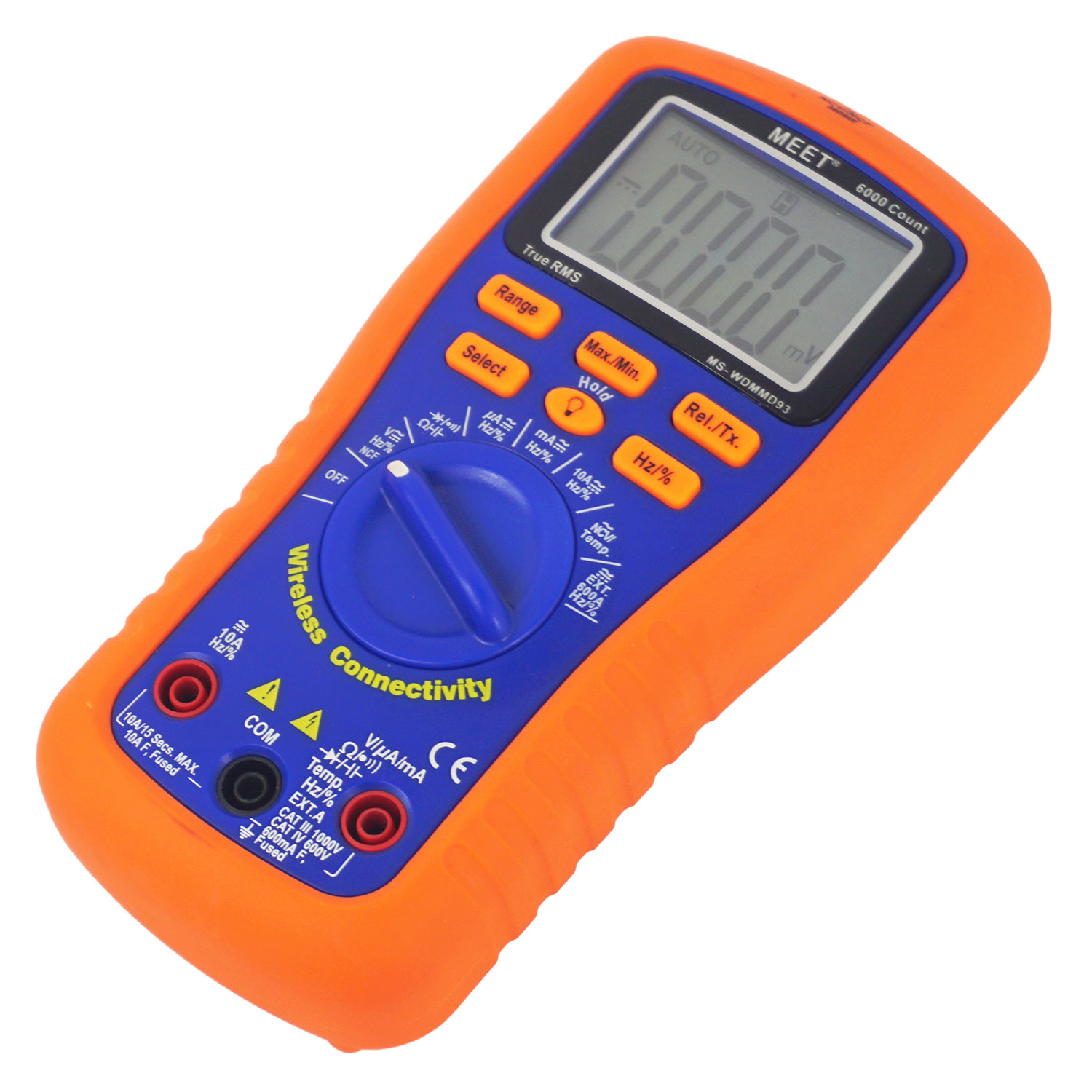

• This is an external wireless connectivity Digital Multimeter Detector integrated with 6000 Count, True RMS, auto and manual measurement.
• One of the most advantages of the meter is wirelessly connect to Smart phone / Tablet / PC (require different external modules, sold separately) to view data, record reading, capture picture with data on it and send the information to headquarter.

Key Specifications/Special Features :

• True RMS
• 6000 counts (3-3/4 digit)
• Auto/manual range
• Large LCD display with backlight
• Auto / Manual ‘V’ (AC / DC) (600V / 1000V)
• μA / mA / 10A (AC / DC)
• Require AC/DC external clamp adaptor input 600A, 1mV=1A sold separately
• Auto/manual resistor measurement : 0 - 60MΩ (approx.)
• Continuity check : <50Ω Beep buzzer sounds
• Capacitance : 10nF - 100mF
• Diode check : 3.0 V
• Input impedance 10MΩ
• 'NCV' Non-Contact AC Voltage Detection (Audible and Visible) > 100V
• 'NCF' Non-Contact Frequency Detection
• Freeze / Hold reading
• Auto-power off (APO) : 5 mins approx. or always 'ON'
• Relative reading (Rel)
• Frequency / Duty cycle (Hz / % ) (10 - 10MHz / 1-99%)
• Backlight & Max. / Min. / Max. - Min. display
• Lοw battery indication (2.6V approx.)

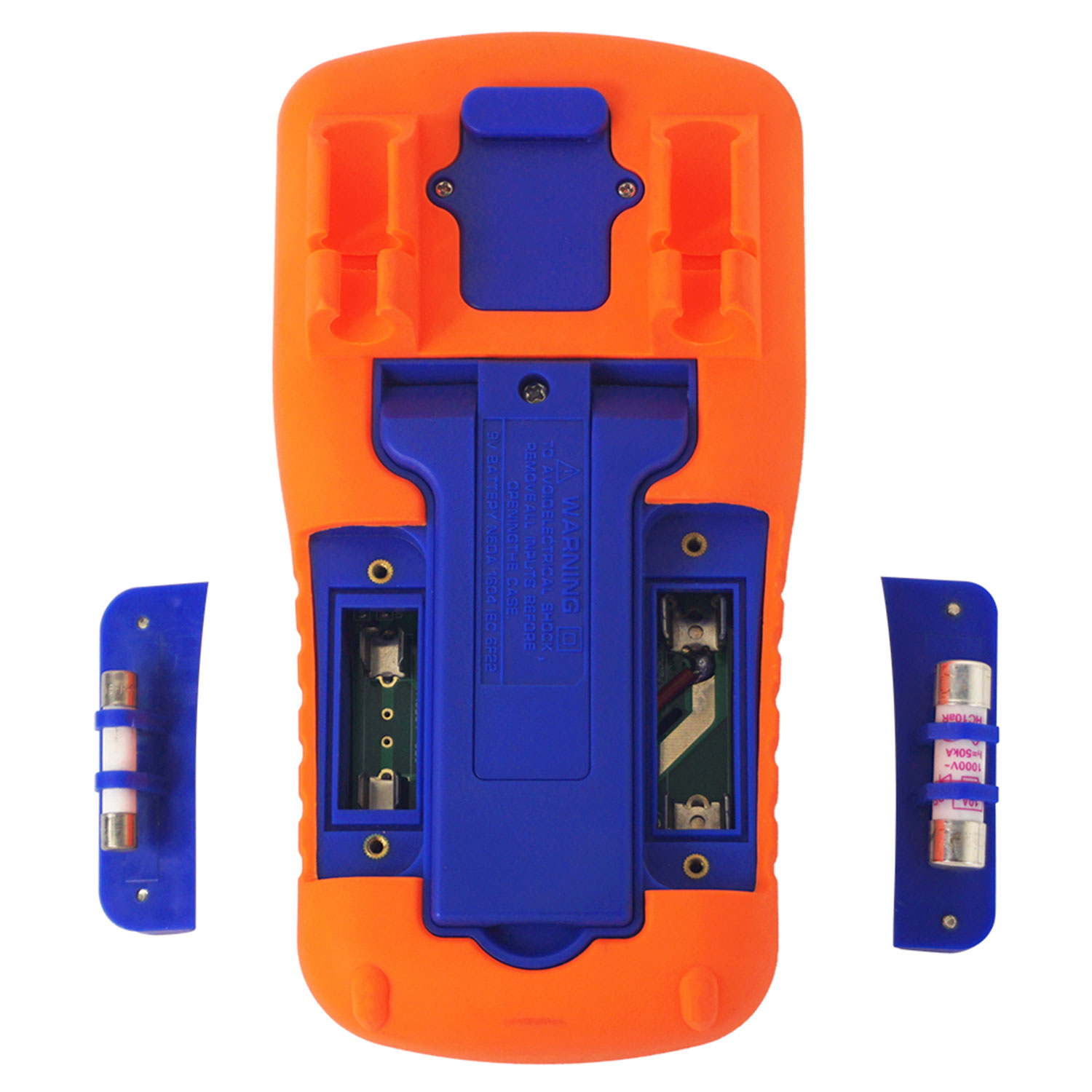

• Fitted with replaceable 600mA (Ø6x32mm) and 10A (Ø10x38mm) fast blow fuse
• Standalone mode : without external wireless module

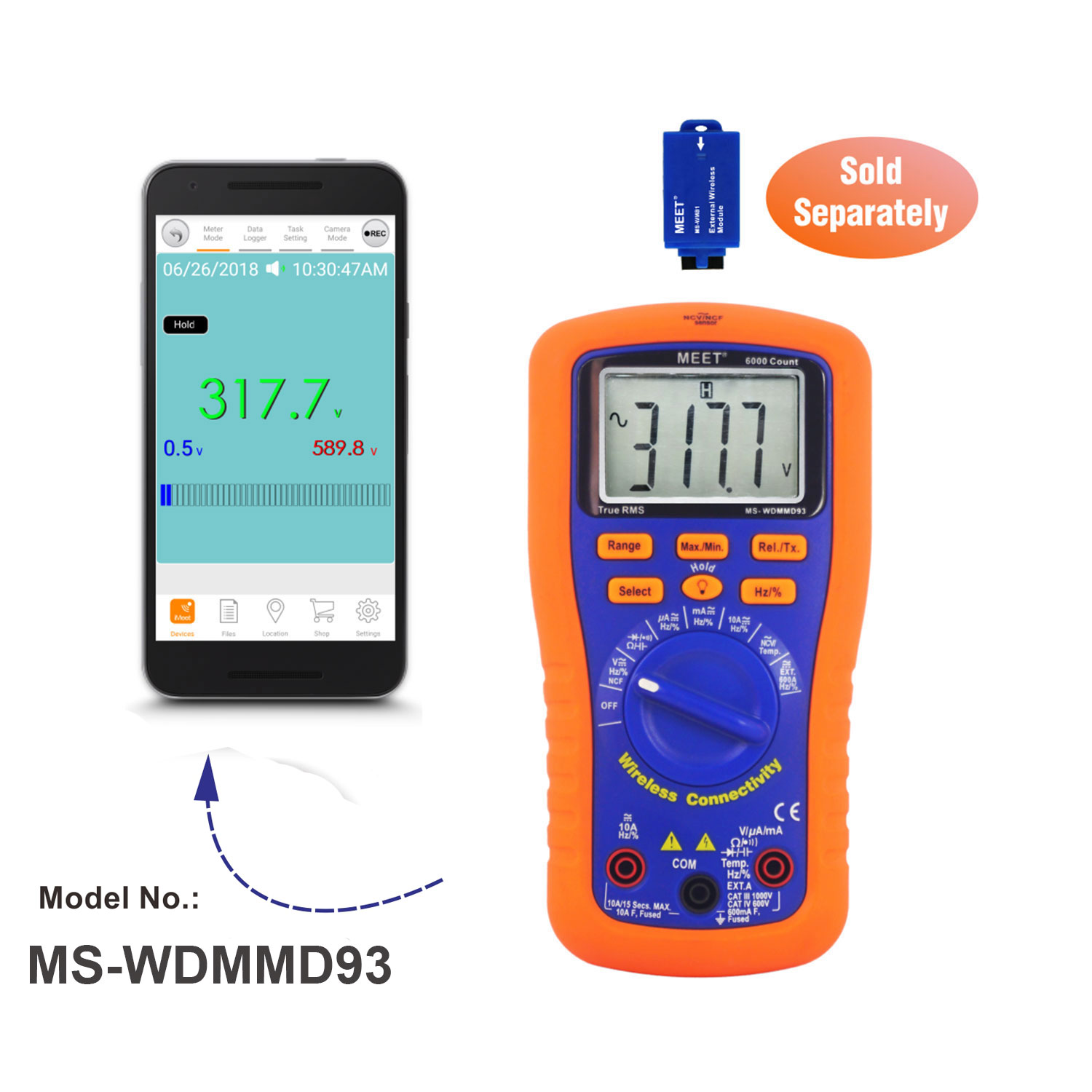

• Wireless connectivity transmit data to Smart phone/Tablet with iOS APPS or Android APPS(require external wireless module MS-WMB1, sold separately)
• 'k' type temperature Ni-Cr and Ni-Si sensor,temperature range measureable -40℃ ~250℃（-40℉~482℉）to be provided
• Measureable temperature from thermocouple -50℃~1000℃ (-58℉~1832℉ ）
• Data logger compatible (require external wireless with memory module MS-WMBM1, sold separately)

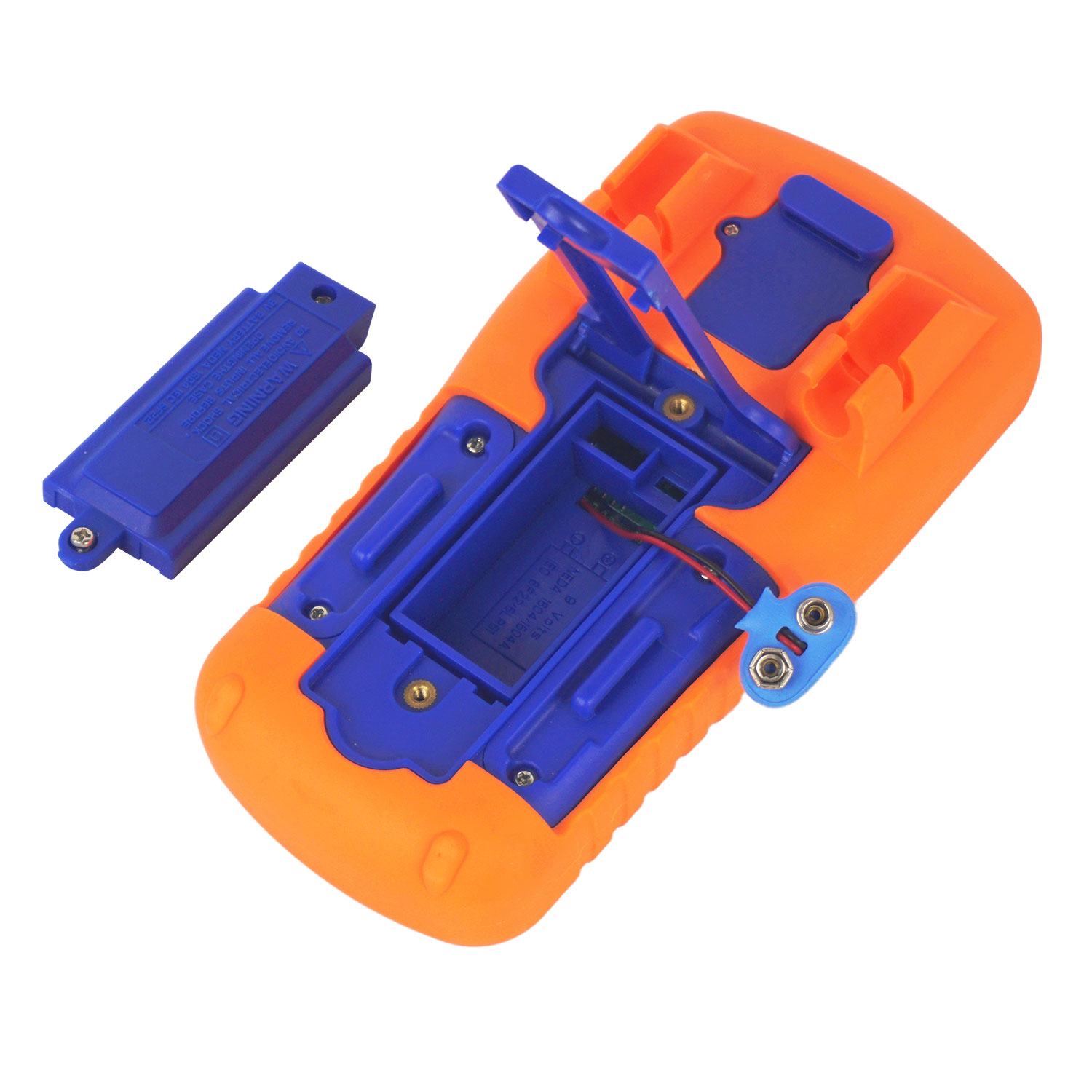

• Battery powered : 1 x 9V (6F22 / 6LR61 / 1604)
• Dimension (LxWxD) mm : 188x96x56
• Weight (approx.) grams : 415 (without battery)
