Wireless Connectivity Digital Multimeter Detector with "NCV" & "NCF"

Model No.:

MS-WDMMD90

Brand:

MEET

Size:

188 x 96 x 56mm

Port:

Shenzhen, Hong Kong

Minimum Order Quantity:

300

Customised:

Yes

Description

Contact Supplier

Introduction :

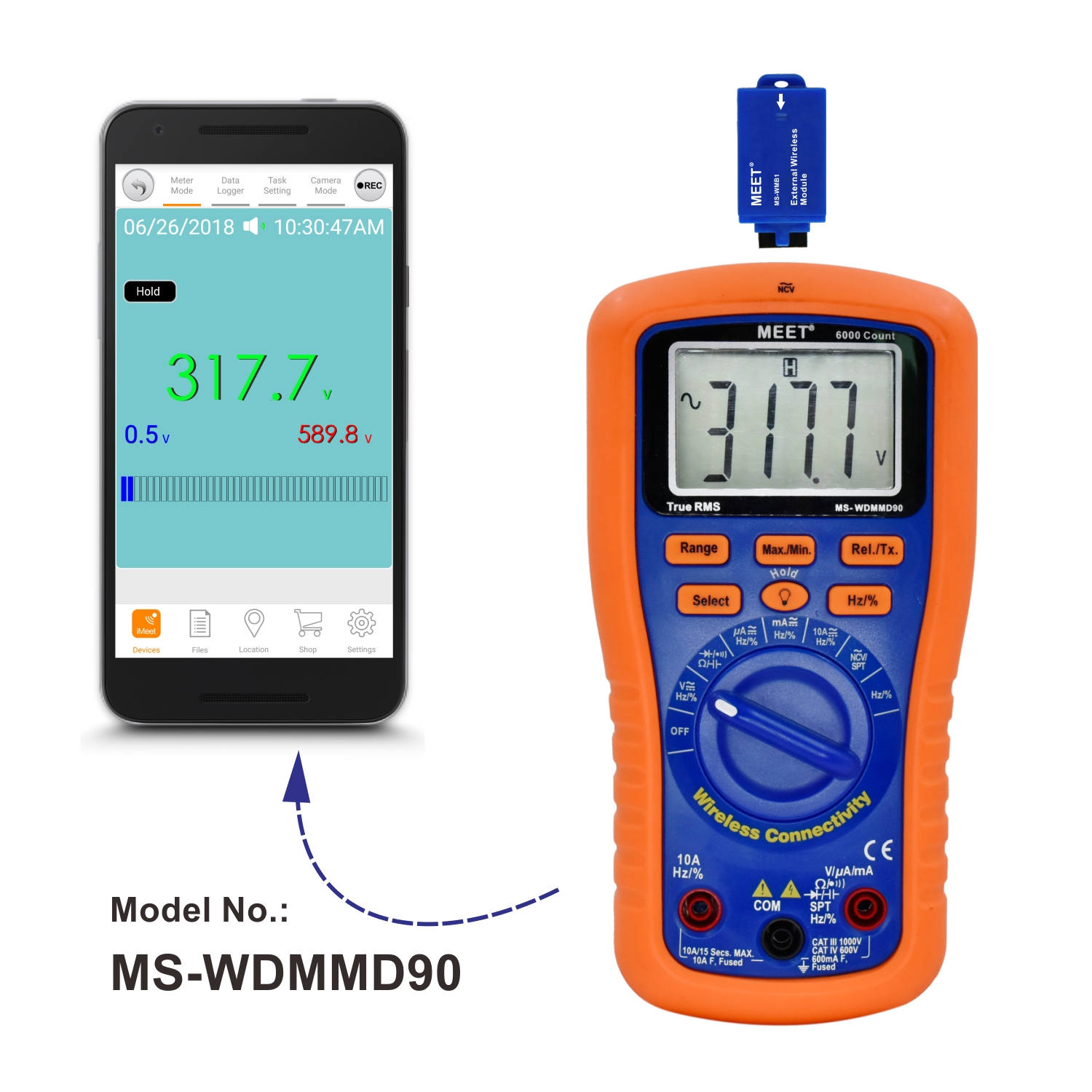

This is an external wireless connectivity Digital Multimeter Detector integrated with 6000 Count, True RMS, auto and manual measurement.
One of the most advantages of the meter is wirelessly connect to Smart phone / Tablet / PC (require different external modules, sold separately) to view data, record reading, capture picture with data on it and send the information to headquarter.

Key Specifications/Special Features :

True RMS
6000 counts (3-3/4 digit)
Auto/manual range
Large LCD display with backlight
Auto / Manual ‘V’ (AC / DC) (600V / 1000V)
'μA / mA / 10A (AC / DC)
Auto/manual resistor measurement : 0 - 60MΩ (approx.)
Continuity check : <50Ω Beep buzzer sounds
Capacitance : 10nF - 100mF
Diode check : 3.0 V
Input impedance 10MΩ
'NCV' Non-Contact AC Voltage Detection (Audible and Visible) > 100V
'SPT' Single Probe Test AC Voltage (Audible and Visible) > 100V
'NCF' Non-Contact Frequency Detection
Freeze / Hold reading
Auto-power off (APO) : 5 mins approx.
Relative reading (Rel)
Frequency / Duty cycle (Hz / % ) (10 - 10MHz / 1-99%)
Max. / Min. / Max. - Min. display
Lοw battery indication (2.6V approx.)
Fitted with replaceable 600mA (Ø6x32mm) and 10A (Ø10x38mm) fast blow fuse
Standalone mode : without external wireless module
Wireless connectivity transmit data to Smart phone/Tablet with iOS APPS or Android APPS(require external wireless module MS-WMB1, sold separately)
Data logger compatible (require external wireless with memory module MS-WMBM1, sold separately)
Battery powered : 1 x 9V (6F22 / 6LR61 / 1604)
Dimension (LxWxD) mm : 188x96x56
Weight (approx.) grams : 415 (without battery)
