Introduction :

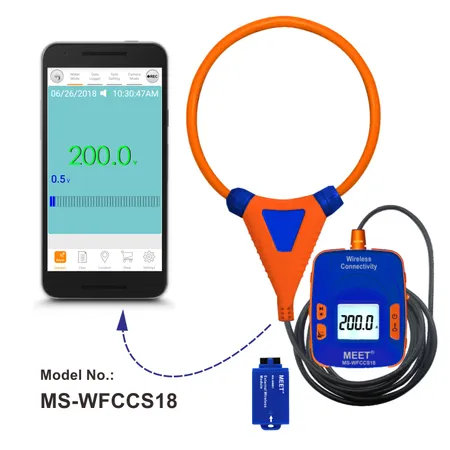

One of the most advantages of the Flexible Coil Current Meter is external wireless connect to Smart phone / Tablet / PC to view data, record reading, capture picture with data on it and send the information to headquarter.

Specifications :

- Measure range of AC current : 1.0 to 3000A (45Hz - 400Hz)
- Accuracy : < 3% ± 5 digits
- Resolution (approx.) : 0-599A / 0.1A ; > 600A / 1A
- Audible sound OΝ / OFF selectable
- Auto Power Off (APO) : OFF / 3 minutes / 5 minutes / 10 minutes
- Hold / Freeze reading
- Operating current : 20mA (max.)
- Stand-by current : 0 mA
- Operating temperature : 0 °C to +45 °C
- Storage temperature : -10 °C to +60 °C
- Operating humidity : < 80% relative humidity
- Supply voltage and power for battery charging : 5V DC (min. 2.5W), mini USB
- Battery charging current : Mini 0.5A
- Standalone mode : without external wireless module
- Wireless connectivity transmit data  to Smart phone/Tablet with iOS APPS or Android APPS (require external wireless module MS-WMB1, sold separately)
- Data logger compatible (require external wireless with memory module MS-WMBM1, sold separately)
- Battery powered : 3.7 V / 680mAH polymer rechargeable battery
- Dimension (LxWxD) mm : 70x53x35 (main unit)
- Weight (approx.) grams : 215 (without battery)
- Flexible coil current sensor length : 10 / 18 / 24 inches
- Flexible coil current sensor diameter : 7.5 mm
- Flexible coil current sensor cable length (sensor to main unit connected) : 1.8 m
