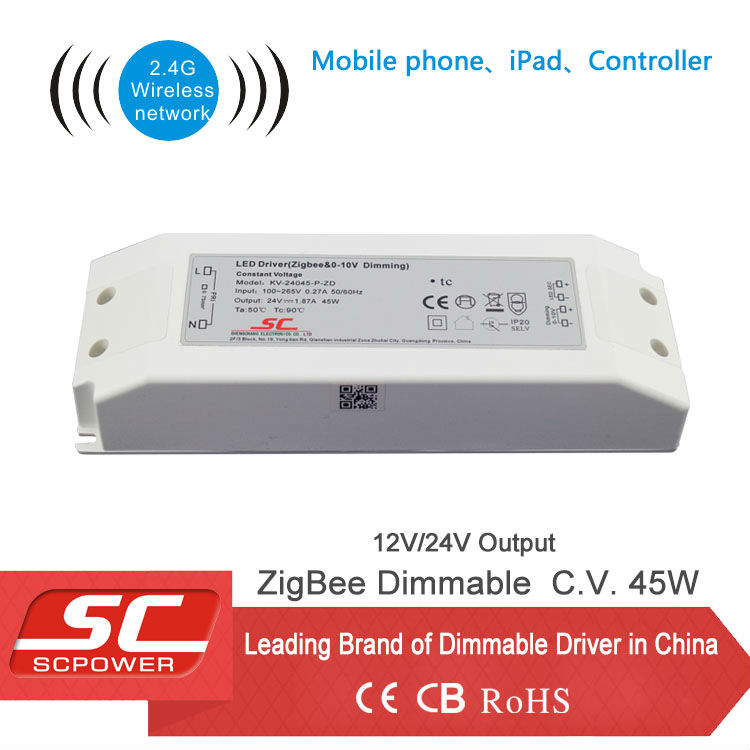

Wireless Control Dimmable LED Driver

Weight:

0.5 Kg

Model No.:

KV-12045-P-ZD

Brand:

Size:

180 x 60 x 35 mm

Port:

Zhuhai

Type of Payment:

T/T, Western Union, MoneyGram, PayPal

Minimum Order Quantity:

1 piece

Power:

High Power, Medium Power

Certification:

CE, EMC, RoHS

Warranty:

3 years

Output Voltage(V):

12V

Input Voltage(V):

100-265VAC

Description

Contact Supplier

Dimmable led driver: Wireless ZigBee/0-10V dimmable driver
Model: KV-12045-P-ZD
Output: 12V, 0-2.5A
Input: 100-265VAC
IP waterproof: IP20
Dimming: 0-100%
Transmission(visual)range: 30m
Wireless frequency: 2.4GHz
More models:
10W-45W drivers of constant voltage 12V/24V/36V/48V output
and 10W-45W drivers of constant current 0-1400ma output

This dimmable driver has many controlling ways(such as Zigbee, DC0-10V 10V PWM). It could be used by combining with Wifi-Zigbee gateway(WL201) so that mobile phone/iPad/PC can flexibly control the lightings, such as setting up scene, controlling area and timing dimming etc. It could be controlled by remote controller in Zigbee network to dim single or multiple lights;It also could be controlled by 0-10V dimmer, 10V PWM dimmer(just like Lutron, Clipsal, Dynalite and other) at the same time, but without interference.
