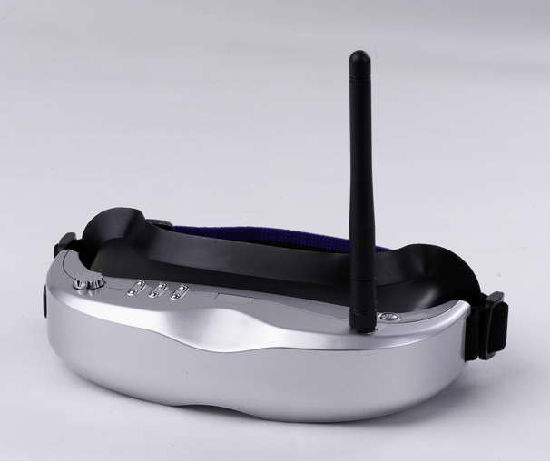

Wireless Video Goggle
Model No.:
GS920
Brand:
BOSCAM
Port:
Shenzhen
Type of Payment:
T/T, Western Union
Description
Contact Supplier
Description
- Supports PAL/NTSC auto system.
- Resolution: full color 922K pixels (640 x 480, RGB).
- Angle of view: 32° diagonal.
- Virtual image size: 80-inch diagonal at 3.5M.
- Video input/output and audio input/output jack: Φ3.5mm.
- Built-in 2.4GHz and 5.8GHz dual wireless audio and video receiver module.
- Exterior antenna.
- Antenna: SMA 50Ω.
- Built-in dual-axis head tracker system.
- Standard 4-pin connectors for link to R/C transmitter, student/trainer connection.
- Power supply: 8-13V DC, 250mA.
- If you wear this FPV video goggle, you will find that you enter into bran-new three-dimensional flight viewing angle; you will become a driver and control the plane, chasing, organizing into teams, stunt flying and air action will be come true by you.
- The product's specialty as below:
- High definition: resolution ratio is VGA 640 x 480RGB; display pixel: 922K angle of view: 32º; inside 2.4G & 5.8G 8 channels receiver; high-precision built-in head tracking system.
- Specially surveillance screen: it is very important that it shows snow screen if without any wireless AV signal. Because almost video goggle screen will be black screen or blue screen in the market, which is very fatal for the pilot flying by the video signal. With surveillance character screen, it will not be black or blue screen so that the pilot can see the current state clearly, which make sure to fly safely.
- Adapter: the working voltage of the video goggle is 8-13V and the power consumption is 300mA. It can supply power by controller, no need the external adapter. The power socket is also available.
- Built-in 2.4G/5.8G 8 channels AV receiver: with the reliable transmitter performance, high picture fidelity and far distance. 8 channels let players have more space, they can play with more people. Moreover, it is with high anti-jamming, let the player have a better plying experience.
- Built-in dual-axis head tracker system: the head tracker system with the advanced design let the players feel the shifting signal and transfer the signal to the holder
- AV output, AV input: the FPV is not only with the AV input function, but also with AV output function, which can be used to be an external record port or the port of the second displayer, also used to be an earphone port to listen the exciting sound from the plane.

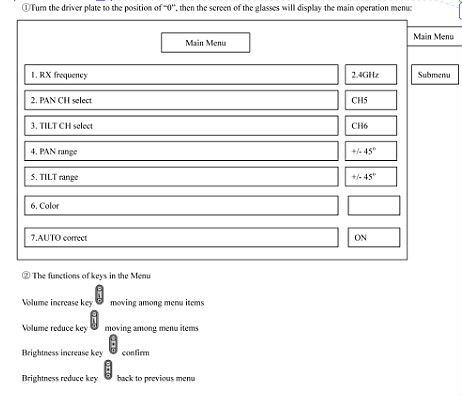

- Diversified menu setting: setting the every function for the video goggle by the insetted menu and knobs, such as to choose the 2.4G or 5.8G receiving, to set up the mapping channels of the head tracker and adjust the range of the reaction space. Moreover, directly adjusting the brightness and contrast of the goggle by the external buttons to fit for any light condition.

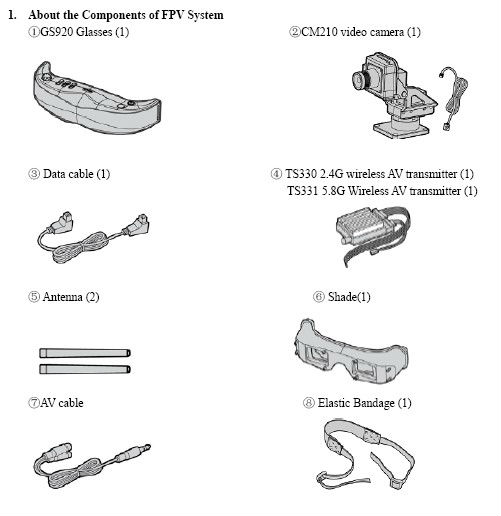

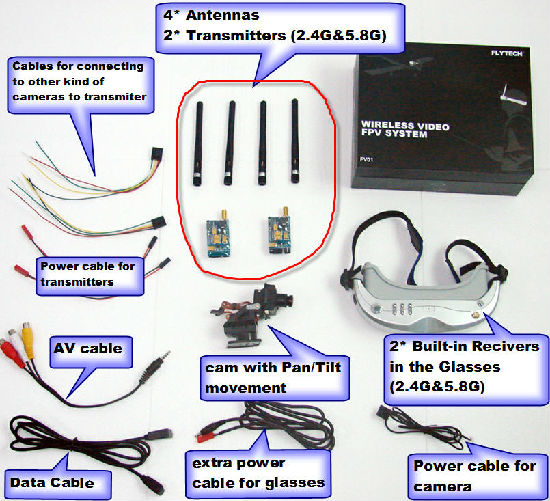

- Package: 1pc video goggle, 1pc USB cable, 2pcs antenna (each of 2.4G & 5.8G).
