Wireless VoIP Router
Model No.:
WG200
Brand:
Soundwin
Colour:
White
Size:
17 cm x 11 cm x 3 cm
Port:
Taiwan
Type of Payment:
T/T in advance
Minimum Order Quantity:
1 piece
Customised:
Yes
Type:
VoIP Gateway
Description
Contact Supplier
Description

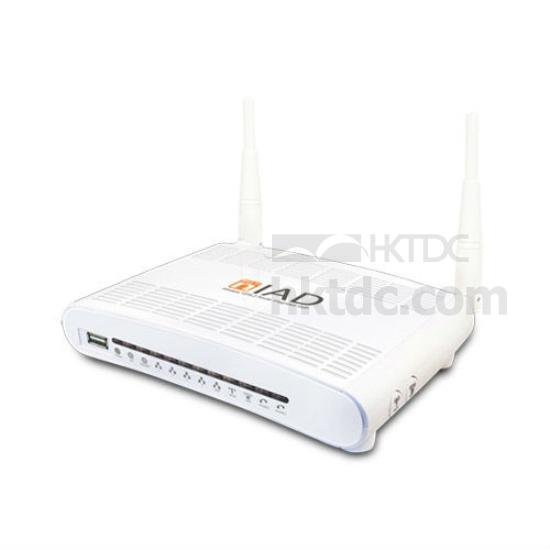

WG200 802.11b/g/n 300Mpbs Wireless VoIP Router
Network Protocols and Features:
NAT, static routing and RIP-1/2
NAT supports PAT and multimedia applications
Transparent Bridging
Virtual Server and DMZ
SNTP, DNS relay and DDNS
IGMP snooping and IGMP proxy
Wireless LAN:
Compliant with IEEE 802.11n, 802.11g and 802.11b standards
2.4 GHz - 2.484 GHz frequency range (up to 300 Mbps wireless operation rate)
WPS (Wi-Fi Protected Setup) for easy setup
Wireless on / off button for time schedule control
Wireless Security: WEP / WPA-PSK / WPA2-PSK
Multi-SSID
IEEE802.11e QoS enhancement (WMM)
Host USB Applications:
3.5G / 3.75G USB modem network sharing (Supports 3.5G / HSDPA, 3.75G / HSUPA, HSPA+, EVDO and TD-SCDMA)
Printer sharing
Storage: Samba server
USB 2.0 standard compliance
VoIP:
2 * RJ-11 FXS ports for connecting to regular telephones
Compliant with SIP standard (RFC3261)
Supports G.711 A/µ law, and G.729 Audio Codec standards
Supports Telephony Features: call waiting, silence suppression, voice activity detection (VAD), comfort noise generation (CNG), G.168 line echo cancellation, caller ID (Bell 202, V23)
Voice over data, QoS control to ensure higher voice quality
Management:
Remote and local webpage management
Firmware upgrades via FTP, TFTP and HTTP
Embedded Telnet Remote management
Embedded diagnostic Tool
TR-069 remote management
Physical Interface:
USB interface: 1 * USB 2.0 port
WLAN interface: 2 * 3dbi antennas
Ethernet WAN / LAN ports
- 1 * Gigabit Auto-MDI / MDI-X RJ-45 Ethernet WAN port
- 4 * 10/100Mbps Auto-MDI / MDI-X RJ-45 Ethernet LAN ports
Telephone port: 2 * FXS
Reset button
WPS push button
WiFi on/off push button
Power jack
Power switch
Power Requirements:
Input: 12VDC, 1.5A
Operating Environment:
Operating temperature: 0 – 40°C
Storage temperature: -20 – 70°C
Humidity: 20 – 95% non-condensing
Ordering information:
WG200: 1WAN (Giga-Ethernet), 4LAN (10/100 Fast Ethernet),
2FXS VoIP Phone Port, 1USB 2.0 port
Network Protocols and Features:
NAT, static routing and RIP-1/2
NAT supports PAT and multimedia applications
Transparent Bridging
Virtual Server and DMZ
SNTP, DNS relay and DDNS
IGMP snooping and IGMP proxy
Wireless LAN:
Compliant with IEEE 802.11n, 802.11g and 802.11b standards
2.4 GHz - 2.484 GHz frequency range (up to 300 Mbps wireless operation rate)
WPS (Wi-Fi Protected Setup) for easy setup
Wireless on / off button for time schedule control
Wireless Security: WEP / WPA-PSK / WPA2-PSK
Multi-SSID
IEEE802.11e QoS enhancement (WMM)
Host USB Applications:
3.5G / 3.75G USB modem network sharing (Supports 3.5G / HSDPA, 3.75G / HSUPA, HSPA+, EVDO and TD-SCDMA)
Printer sharing
Storage: Samba server
USB 2.0 standard compliance
VoIP:
2 * RJ-11 FXS ports for connecting to regular telephones
Compliant with SIP standard (RFC3261)
Supports G.711 A/µ law, and G.729 Audio Codec standards
Supports Telephony Features: call waiting, silence suppression, voice activity detection (VAD), comfort noise generation (CNG), G.168 line echo cancellation, caller ID (Bell 202, V23)
Voice over data, QoS control to ensure higher voice quality
Management:
Remote and local webpage management
Firmware upgrades via FTP, TFTP and HTTP
Embedded Telnet Remote management
Embedded diagnostic Tool
TR-069 remote management
Physical Interface:
USB interface: 1 * USB 2.0 port
WLAN interface: 2 * 3dbi antennas
Ethernet WAN / LAN ports
- 1 * Gigabit Auto-MDI / MDI-X RJ-45 Ethernet WAN port
- 4 * 10/100Mbps Auto-MDI / MDI-X RJ-45 Ethernet LAN ports
Telephone port: 2 * FXS
Reset button
WPS push button
WiFi on/off push button
Power jack
Power switch
Power Requirements:
Input: 12VDC, 1.5A
Operating Environment:
Operating temperature: 0 – 40°C
Storage temperature: -20 – 70°C
Humidity: 20 – 95% non-condensing
Ordering information:
WG200: 1WAN (Giga-Ethernet), 4LAN (10/100 Fast Ethernet),
2FXS VoIP Phone Port, 1USB 2.0 port
