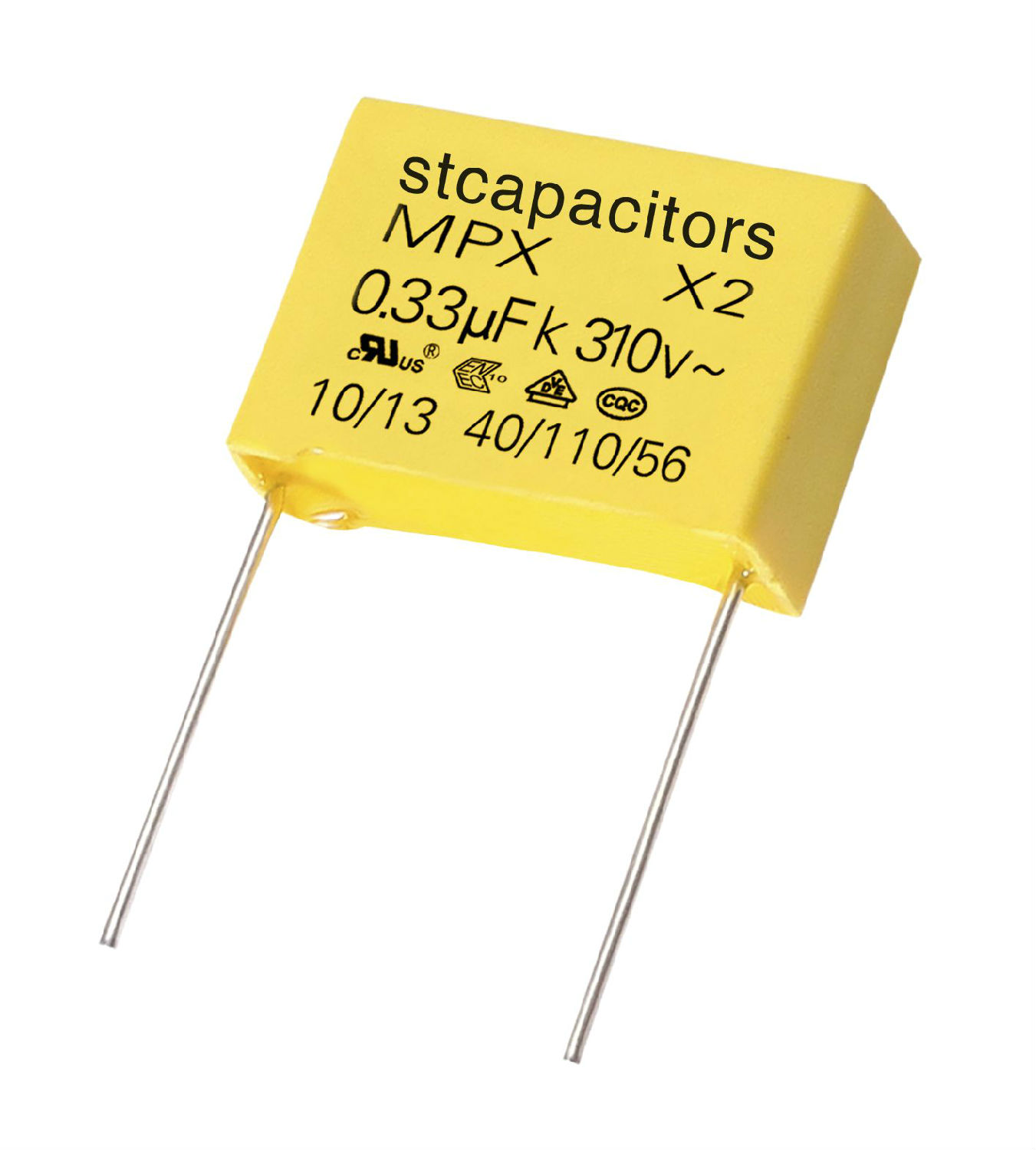

X2 Metalized Polypropylene Film Capacitor
Model No.:
X2
Brand:
stcapacitors
Port:
Shenzhen
Minimum Order Quantity:
10,000 Piece(s)
Description
Contact Supplier
Description
SPECIFICATIONS
技术要求
Rated voltage：280VAC
额定电压：280VAC
Capacitance range:0.0022-4.7UF
电容量范围：0.0022-4.7UF
Capacitance tolerance:±10%(k),±20%(M)
电容量偏差：±10%(k),±20%(M)
Operating temperature:40/100/21
工作温度：40/100/21
Voltage proof:4.3UR(5s)
耐电压：4.3UR(5s)
Dissipation Factor:≤0.3%(20℃，10kHz)
损耗角正切：≤0.3%(20℃，10kHz)
FEATURES
特点
1.Box type provides the identical outer appearance
塑料外壳封装，外观一致性好
2.Very low loss at high frequency,suitable for high current
高频损耗小，适用于较大电流
3.High insulation resistance,long life due to self-healing effect
绝缘电阻高，自愈性好，寿命长
4.Withstanding 2.5kV impuls voltage ,class X2
能承受2.5KV的脉冲电压，属X2类
5.As an across-the-line type noise suppression capacitor,and suitable for AC purpose
适用于电源跨线降噪电路，及其他交流场合
