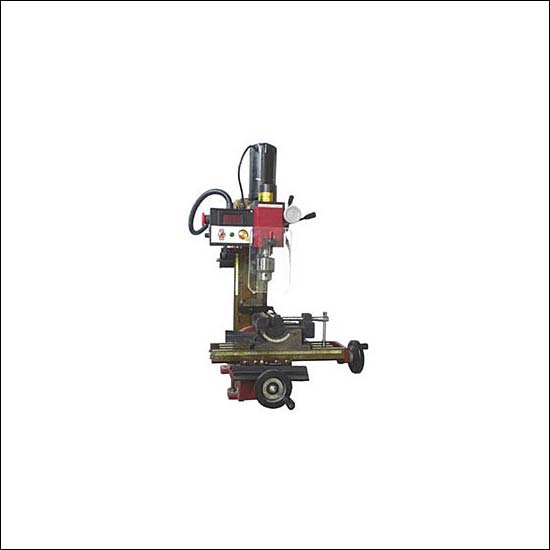

XENDOLL Micro Drilling Milling Machine
Model No.:
ML9510A
Brand:
XENDOLL
Colour:
RED
Description
Contact Supplier
Description
- Feature:Safety swict,Variable speed,Four position turret post,Complete set of change gear
- ,High accurate,Speed digital display
- Explanation:
- Process exact..................0.02mm
- Drilling capacity..............13mm
- End milling capacity...........16mm
- Face milling capacity..........30mm
- Headstock travel(Z)............180mm
- Cross axis(X)..................100mm
- Longitudinal axis(Y)...........220mm
- Spindle rotary angle...........-45 o +4 o
- Output power...................350w
- Spindle speed..................Low range:0-1100rpm
- .................................High range:0-2500rpm
- Spindle taper..................MT#3
- T-slot........................12mm
- Net/Gross weight..............50/68kg
- Packing size..................560x500x740mm
