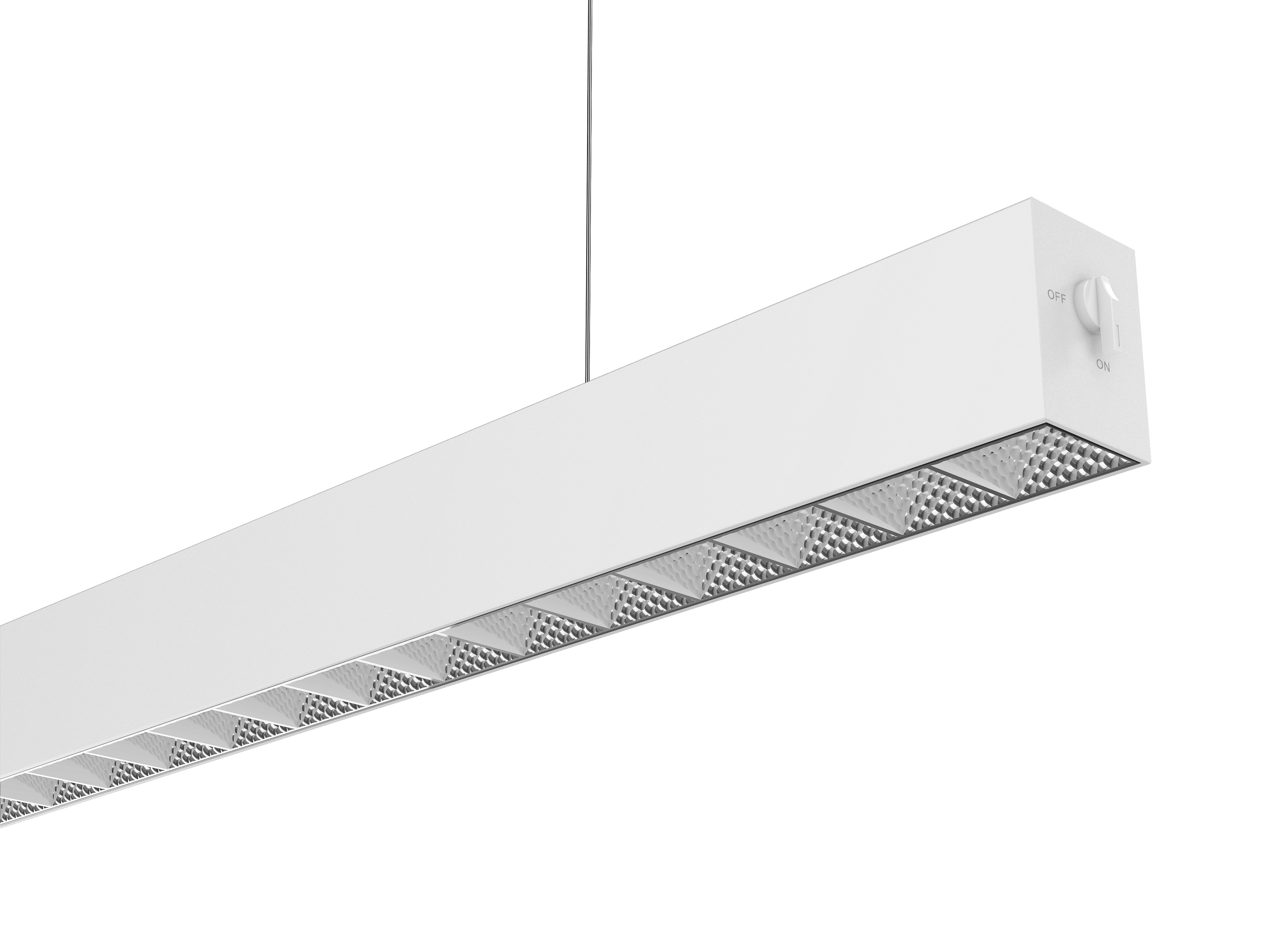

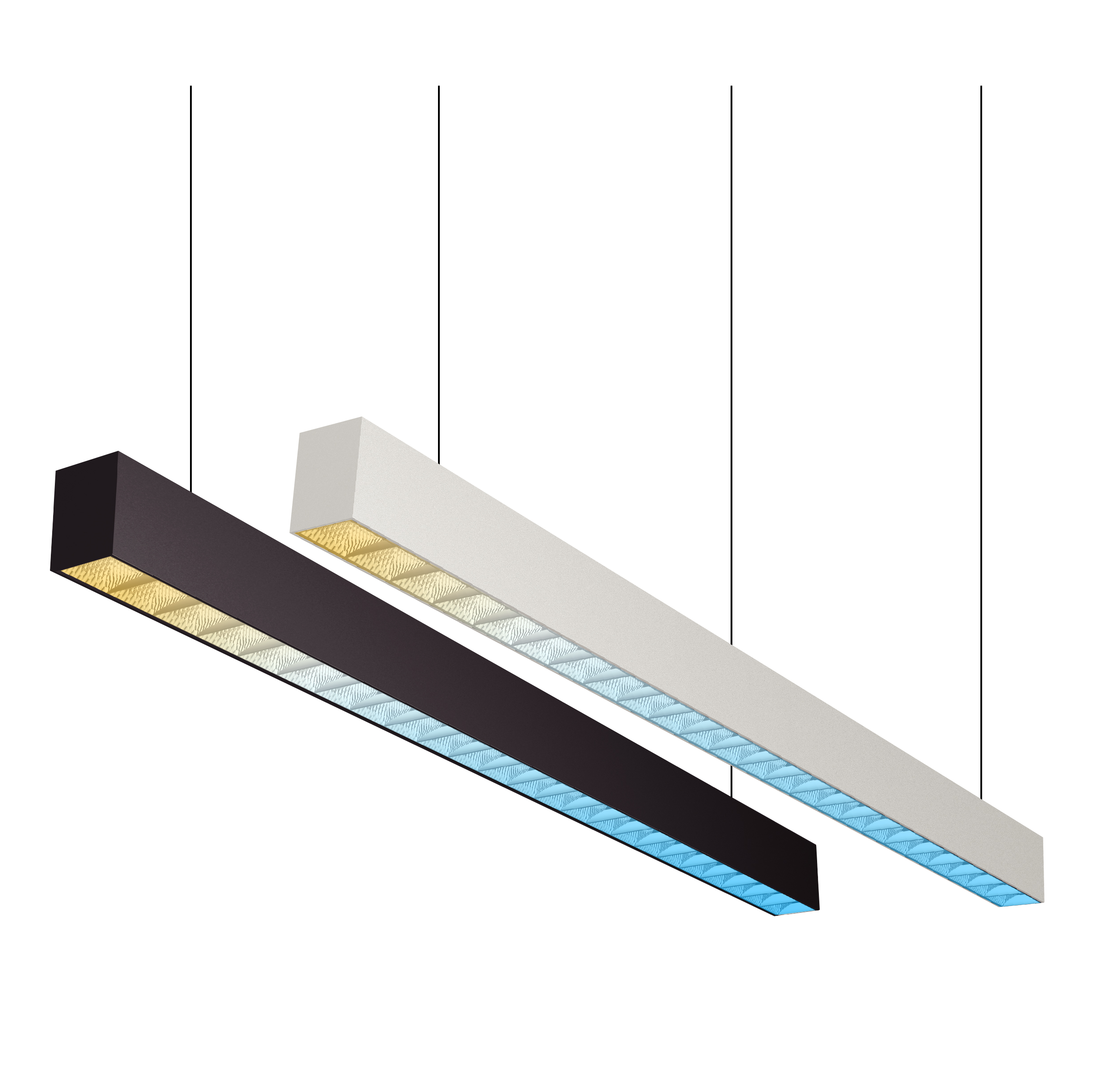

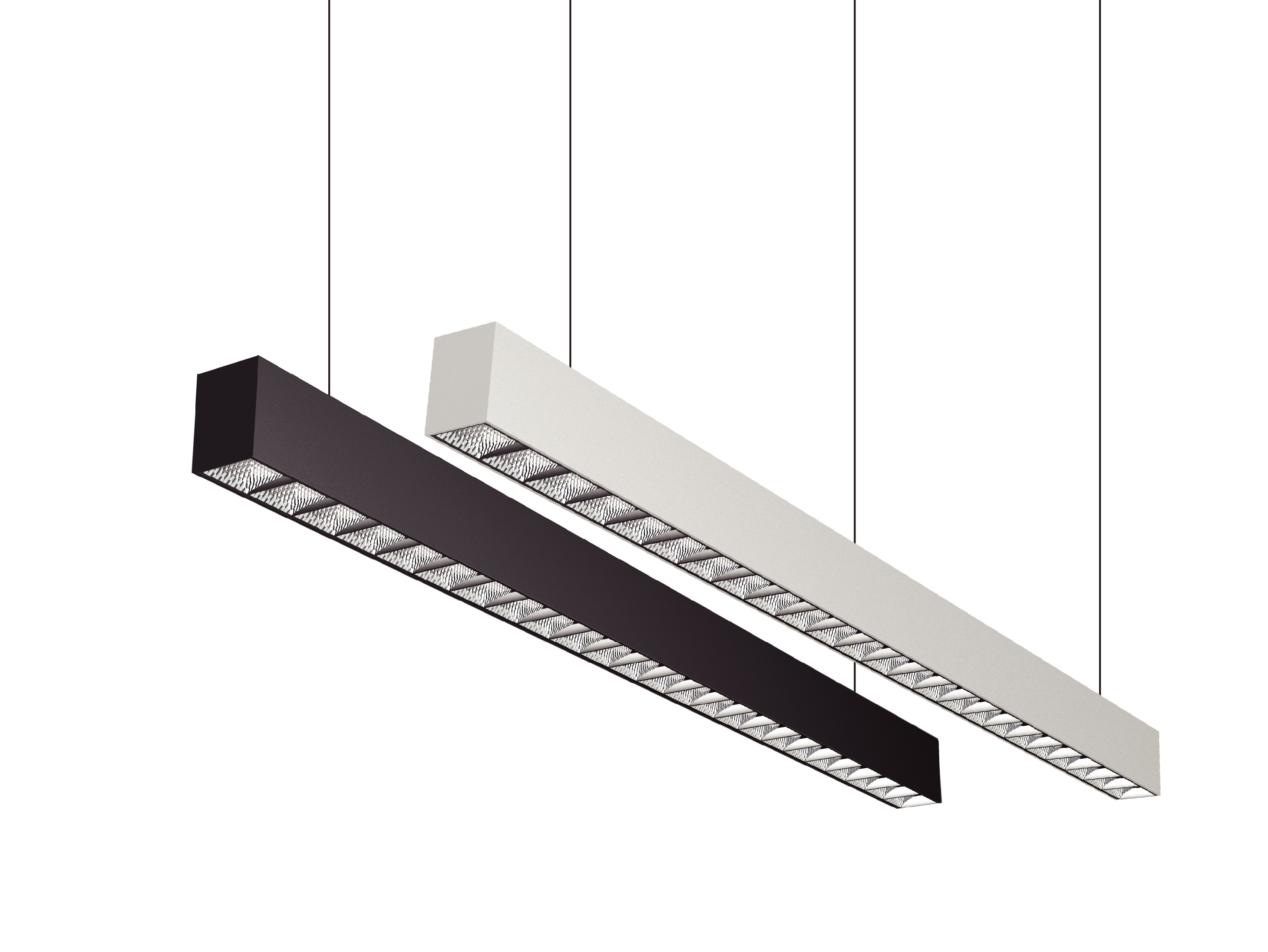

Xline Plus Linear Lighting System: UGR 19, Continuous, Easy Installation
US $0.99 - US $296.01
US $1.00 - US $299.00
Production Lead Time:
28 day(s)
Shipping Method:
EXW Shenzhen
Brand:
Xline Plus
Customised:
Yes
Feature:
Seemless Linear Light
Material:
Aluminum
Application:
Office, School, Library, Hospital
Lengths(mm):
500, 1167, 1500, 1800, 2336
Power(W):
15W, 24, 30, 45, 60, 90
Lumen(lm):
1500, 2500, 3000, 5000, 6500, 10000
Efficacy:
110lm/W
CCT(K):
3000K, 4000K, 5000K
Up/Down Light(%):
Direct Lighting 0% : 100%; Indirect/Direct Lighting 30% : 70%
Beam Angles:
110, 85x85, 80, 30x70, 55x90
Continuous:
Continuous, or Independent
Dimming:
ON/OFF, 0-10V, DAL DT6, Zigbee (on request)
Control System:
DALI, Zigbee 3.0
Finish:
Black, White
Accesorries:
I, L, T, X Connector, End cap, Feedin Cable, Pendant Kits, Surface Kits, Track Kits.
Description
Contact Supplier
Description
- Voltage(V): 220-240; 120-277
- Certification: CE, ETL, EMC, FCC, GS, LVD, RoHS, SAA
- Wattage(W): 15W 20W 30W 45W 60W 90W
- Beam: 120°, 85*85°, 80°, 30*70° aisle, 55*90° wall washer, empty profile
- Shade Direction: 30% up 70% down; 100% down
- UGR: 16, 19, 22 depends on optics design
- Dimmable: DALI-2, DALI DT8, ON/OFF, 1-10V, Zigbee 3.0
- Continous Installaion: straight, L, T, and X.
- CCT: 3000K, 4000K, Tunable White
- Installaions: Suspendant, Surface, Track mounted
- Product Length: 0.5, 1.2, 1.5, 1.8, 2.4 meter
- Shade Type:Reflectors, MicroPrism, Opal diffusor
- Body Colour: Black, White
- Customized: Yes
- Base Type: Plug & Play Wago Connectors
- Body Material: Aluminum
- Warranty: 5 years
- MOQ: 50
