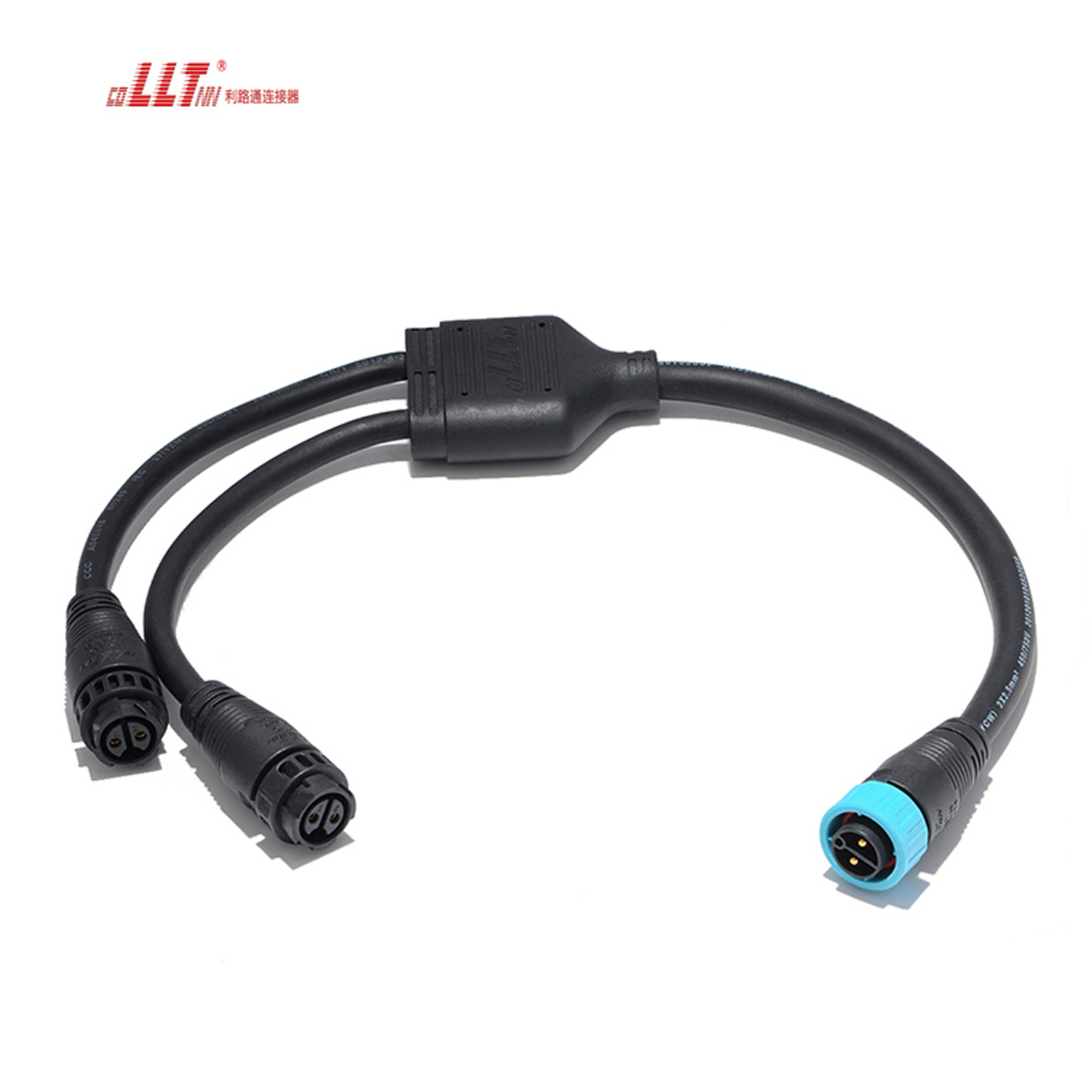

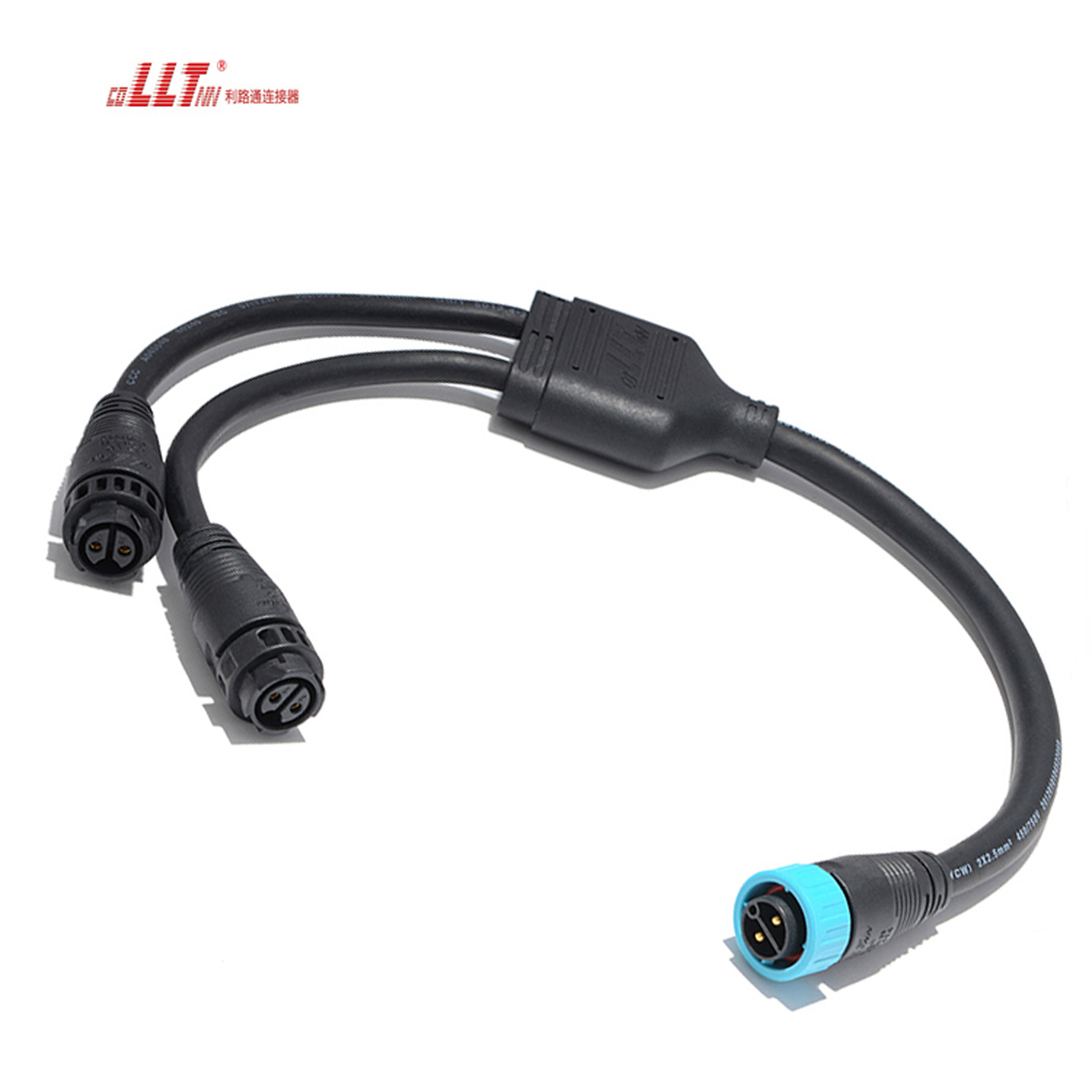

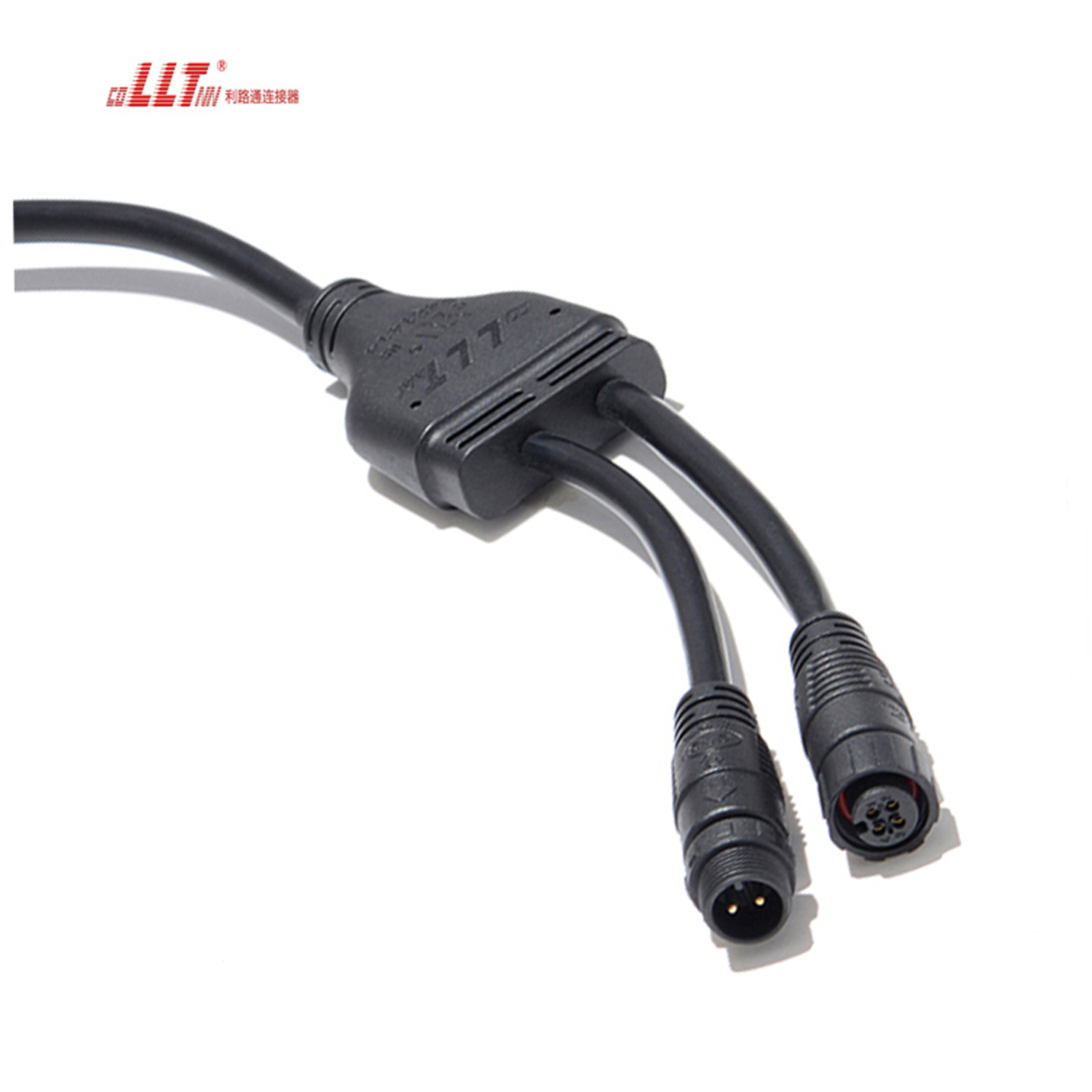

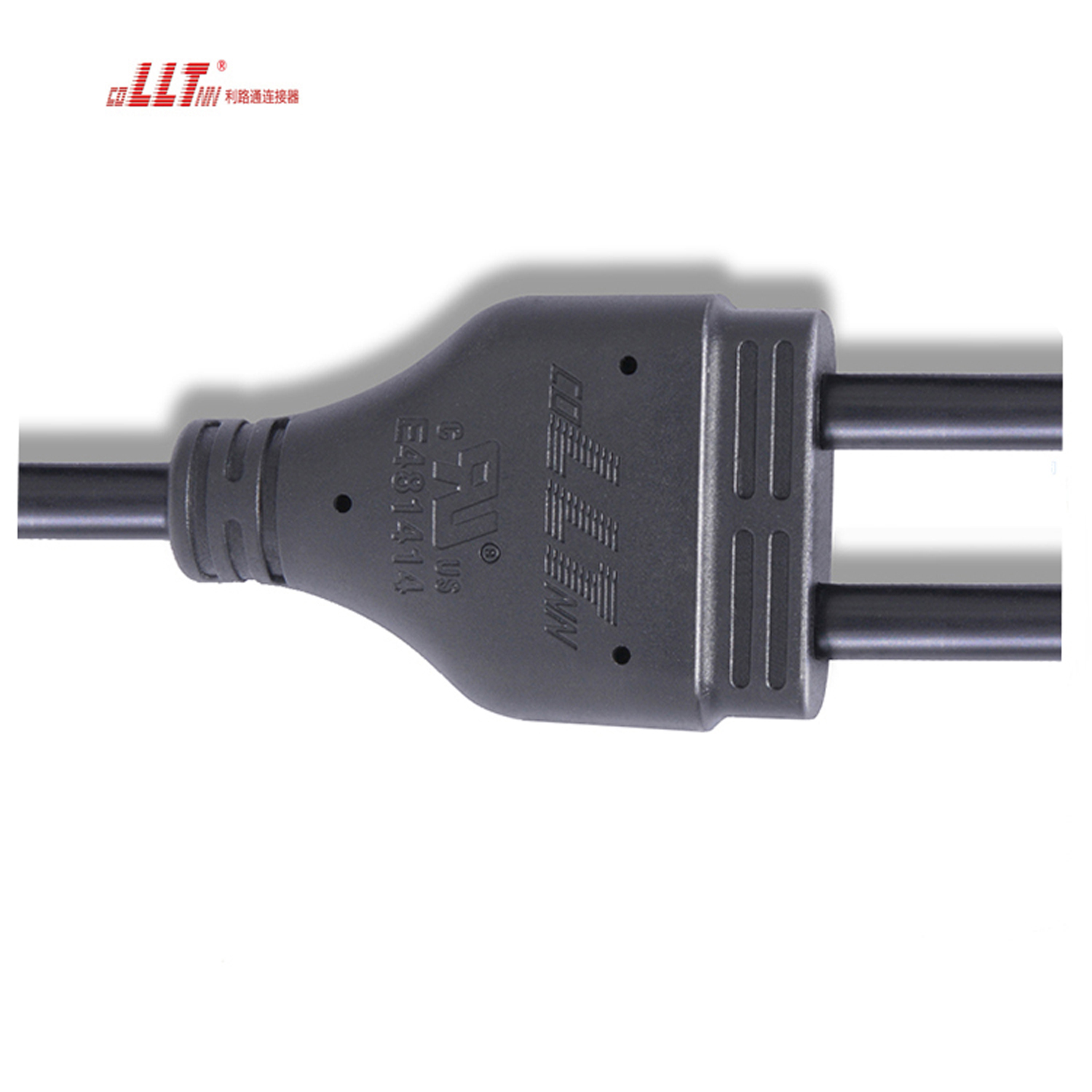

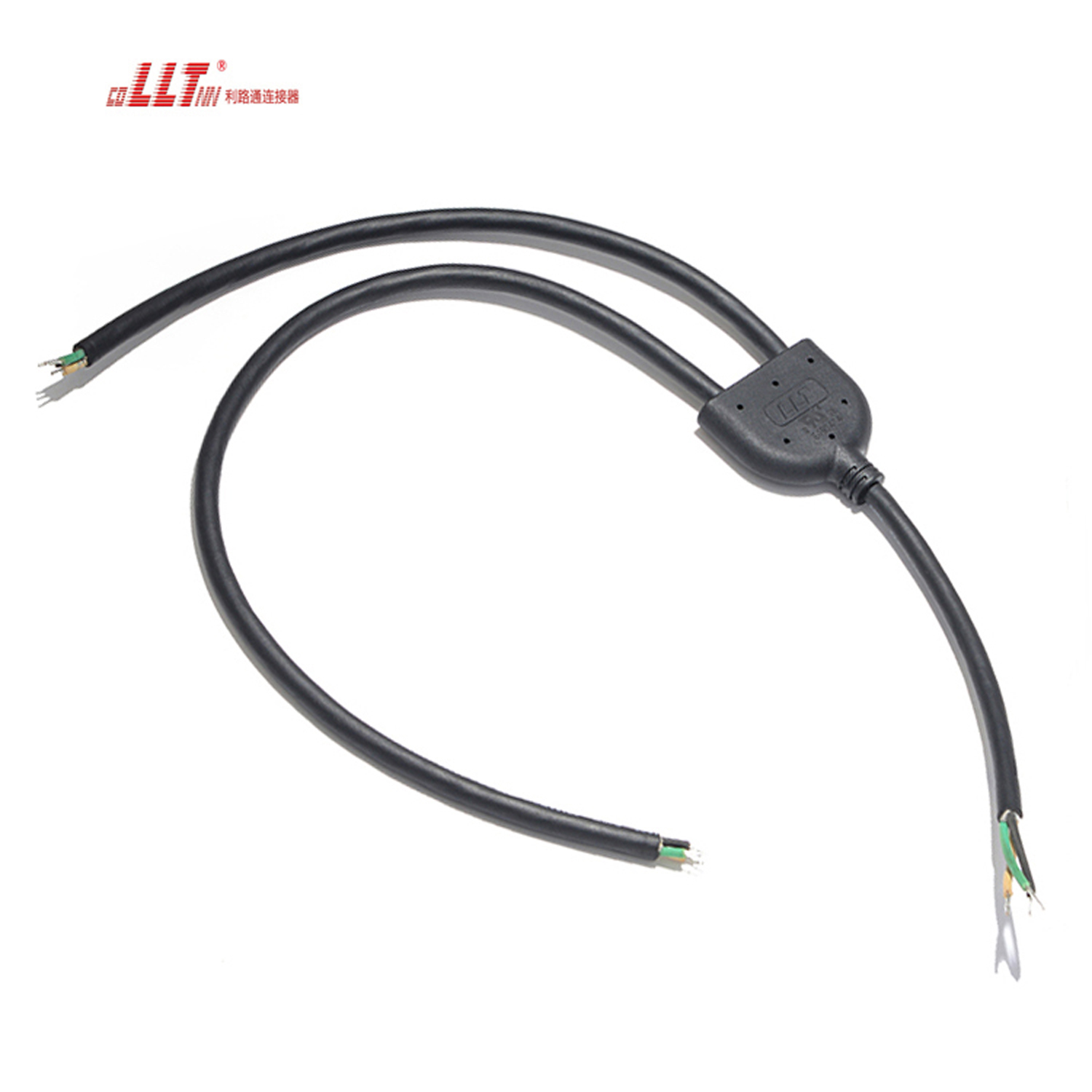

Y Splitter Branch Adapter 1 Output 2 Push Lock IP67 IP65 Cable Connector ,Y Splitter Joint Connector
US $2.00 - US $4.00
Production Lead Time:
7 day(s)
Shipping Method:
By express, By sea,By air
Model No.:
LLT-Y-10003D5X02
Brand:
LLT
Feature:
300V/15A
Waterproof Level::
IP67
Durability::
3000 times
Warranty::
12 Month
Certificate:
TUV;CCC; CE; RoHS;SAA;UL;ISO9001
Application:
Our products are widely used in LED light ,outdoor display ,electrical equipment ,automation machine ,electrical technolgy and medical equipment ,interactive samart grid,automation machine ,industrial pc ,marine device .
Description
Contact Supplier
Description
Model number:LLT-Y-10003D5X02
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Push lock
Temperature Rating:-40°C~+105°C
Current rating:15A
Voltage rating:300V
Waterproof Rating:IP67
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2/3/4pin
Sealing:Silica Gel
Contact: Brass with gold plated
Mating style: Push lock
Temperature Rating:-40°C~+105°C
Current rating:15A
Voltage rating:300V
Waterproof Rating:IP67
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:2/3/4pin
Max Cable Range:13mm
