YO2086s-1G
Production Lead Time:
14 day(s)
产品型号:
YO2086s-1GC（R2W)
Brand:
Yoswit
Size:
L: 86mm x W: 86mm x H: 32mm
Port:
Hong Kong, Zhongshan, China
Type of Payment:
PayPal, Bank Transfer
Minimum Order Quantity:
1 piece
工作温度:
-10°C to 40°C
Max. Current:
6A
防护等级:
IP20
Package:
Yes
Customised:
Yes
Max. Voltage:
AC100 - 240V
Description
Contact Supplier
Description
Yoswit Smart Light Switch — YO2086s-1G (R2)

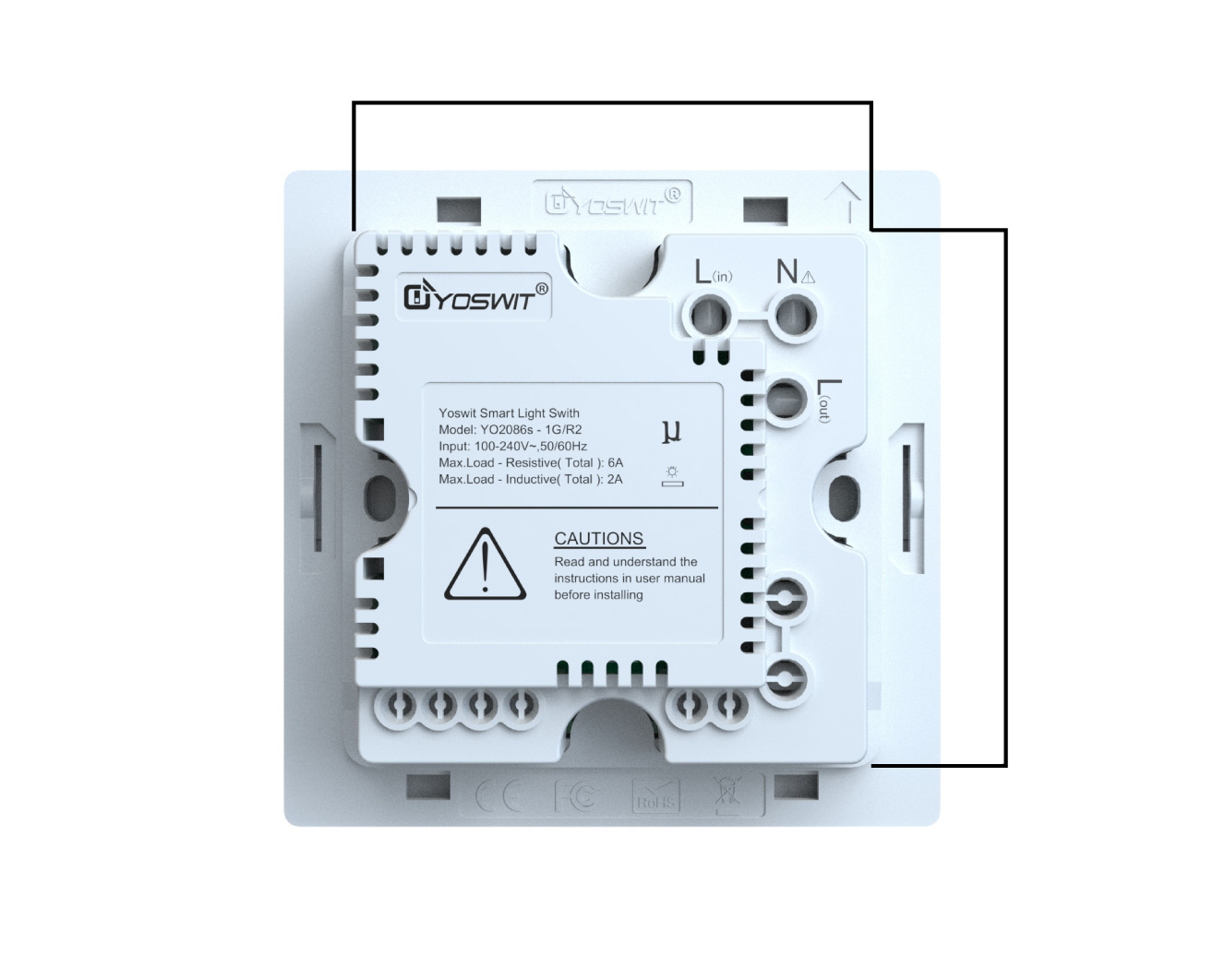

- No neutral wire needed. Compatible with 2-wire and 3-wire installation.
- Directly works with smartphone via built-in Bluetooth. No hub, no pairing, no configuration needed (auto-detected by Yoswit App).
- Enable wireless control of on/off, time delay & countdown, schedule, scene and away detection functions.
- Dual operating modes: physical button manual operation + APP remote control; supports multi-location control from 3 or more locations.
- High compatibility with all common bulb types (incandescent to LED); supports low-watt LED down to 3W under 2-wire wiring.
- Additional features: switch lock, customized LED indicator, default power-up state.
Features
- No neutral wire needed. Compatible with 2-wire and 3-wire installation.
- Directly works with smartphone via built-in Bluetooth. No hub, no pairing, no configuration needed (auto-detected by Yoswit App).
- Enable wireless control of on/off, time delay & countdown, schedule, scene and away detection functions.
- Dual operating modes: physical button manual operation + APP remote control; supports multi-location control from 3 or more locations.
- High compatibility with all common bulb types (incandescent to LED); supports low-watt LED down to 3W under 2-wire wiring.
- Additional features: switch lock, customized LED indicator, default power-up state.
Mechanical Data
Item
Value
Body
Not specified on page
Operating Environment
Indoor
Operating Temperature Range
-10°C to 40°C
Operating Humidity
0-95% RH, Non-Condensing
Ingress Protection (IP)
IP20
Product Size
86 × 86 mm (Socket 86 panel)
Electrical Data
Item
Value
Input Voltage
100-240V AC (50/60Hz)
Frequency
50/60Hz
Power Consumption
≤1W
Resistive Load Current
Max. 6A
Inductive Load Current
Max. 2A
Minimum Load Power
3 watt (*for 2-wire [without neutral wire] installation only)
Bluetooth Data
Item
Value
Version
Bluetooth 4.2
Frequency
2.4GHz
Range
Open area (>50m); indoor (3-20m)
Connection
BLE (Bluetooth Low Energy)
Chips Manufacturer
Not specified on page
Chips Certification
Not specified on page
Certification
- CE (CE EMC, CE LVD)
- FCC
- RoHS
Note: CCC and R&TTE are not listed on this product page.
Package
Item
Value
What's in the Box
Product ×1, Screw ×2, User Manual ×1, Safety Capacitor ×1, Warranty Card ×1
Package Size
142 × 108 × 52 mm
App Support
Table 6: App Support
Item
Value
Compatible App
Yoswit App (App Store / Android APK)
iOS Support
iOS 13.0 or later
Android Support
Android 7 or later
Average Response Time
3 - 7 days
