YO2086s-1GC-IR(R2W)
Production Lead Time:
14 day(s)
产品型号:
YO2086s-1GC-IR(R2W)
Brand:
Yoswit
Size:
L: 86mm x W: 86mm x H: 32mm
Port:
Hong Kong, Zhongshan, China
Type of Payment:
PayPal, Bank Transfer
Minimum Order Quantity:
1 piece
Operating Temperature:
-10°C to 40°C
Max. Current:
6A
防护等级:
IP20
Package:
Yes
Customised:
Yes
Max. Voltage:
AC100 - 240V
Description
Contact Supplier
Description

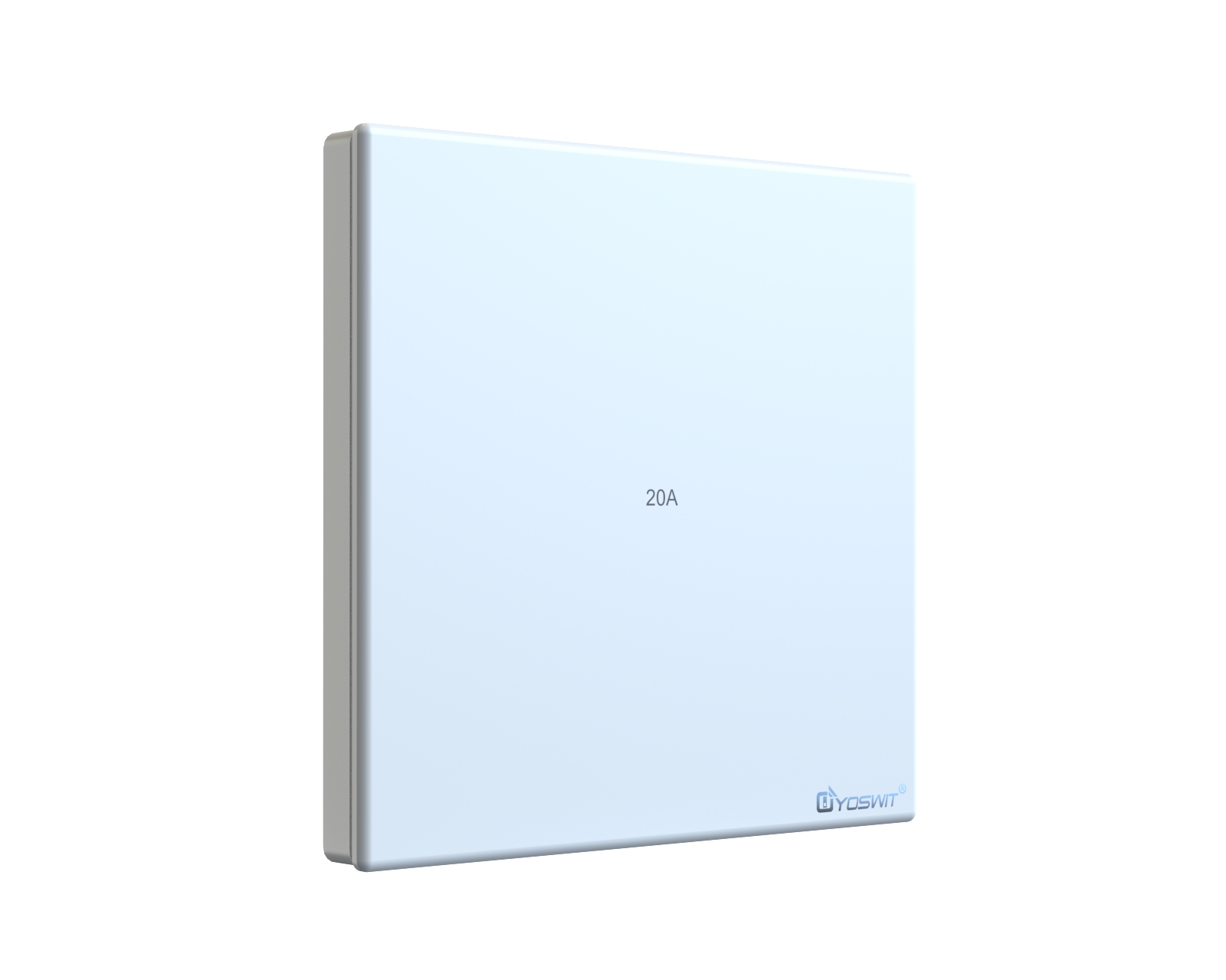

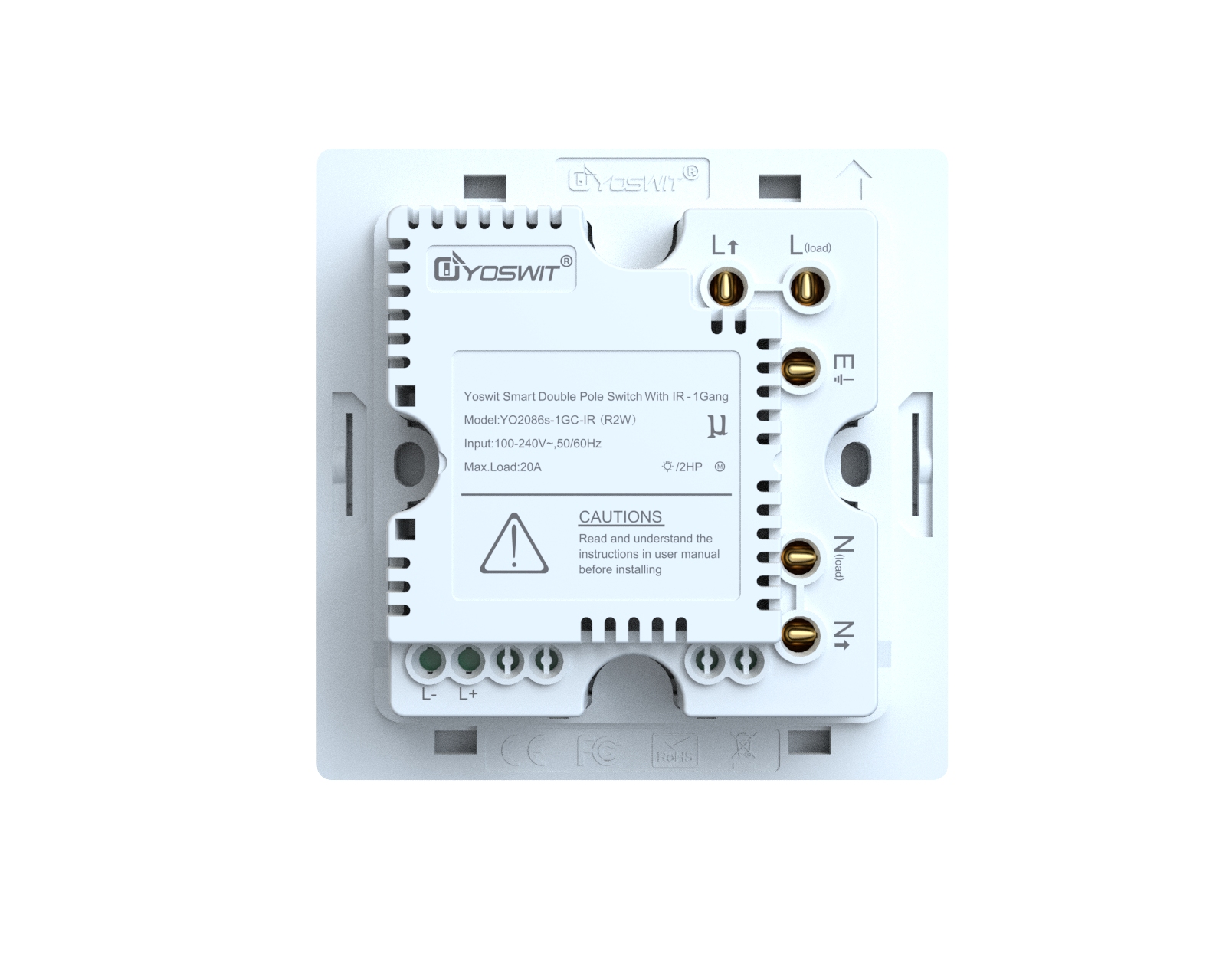

Yoswit Smart Double-Pole Switch with IR
Model: YO2086s-1GC-IR (R2W)
Product Name: Yoswit Smart Double-Pole Switch with Infrared
Panel Type: 86-type
Revision: V7.0
Designed by: Yoswit in Hong Kong, China
Assembled in: Guangdong, China
Certifications: CE (EMC + LVD), FCC, RoHS
Product Summary
A 86-type smart double-pole switch for high-power appliances, adding a built-in IR blaster so the switch can also control IR appliances from the Yoswit App. It supports 20A / 2HP loads such as water heaters, air conditioners and exhaust fans, with energy monitoring, scheduling, Yoswit hub function, Wi-Fi + BLE connectivity, third-party ecosystem compatibility, and OTA upgrades.
Key Features
- High-power appliance support: Market-positioned as supporting 20A / 2HP loads — water heaters, AC units, exhaust fans, etc.

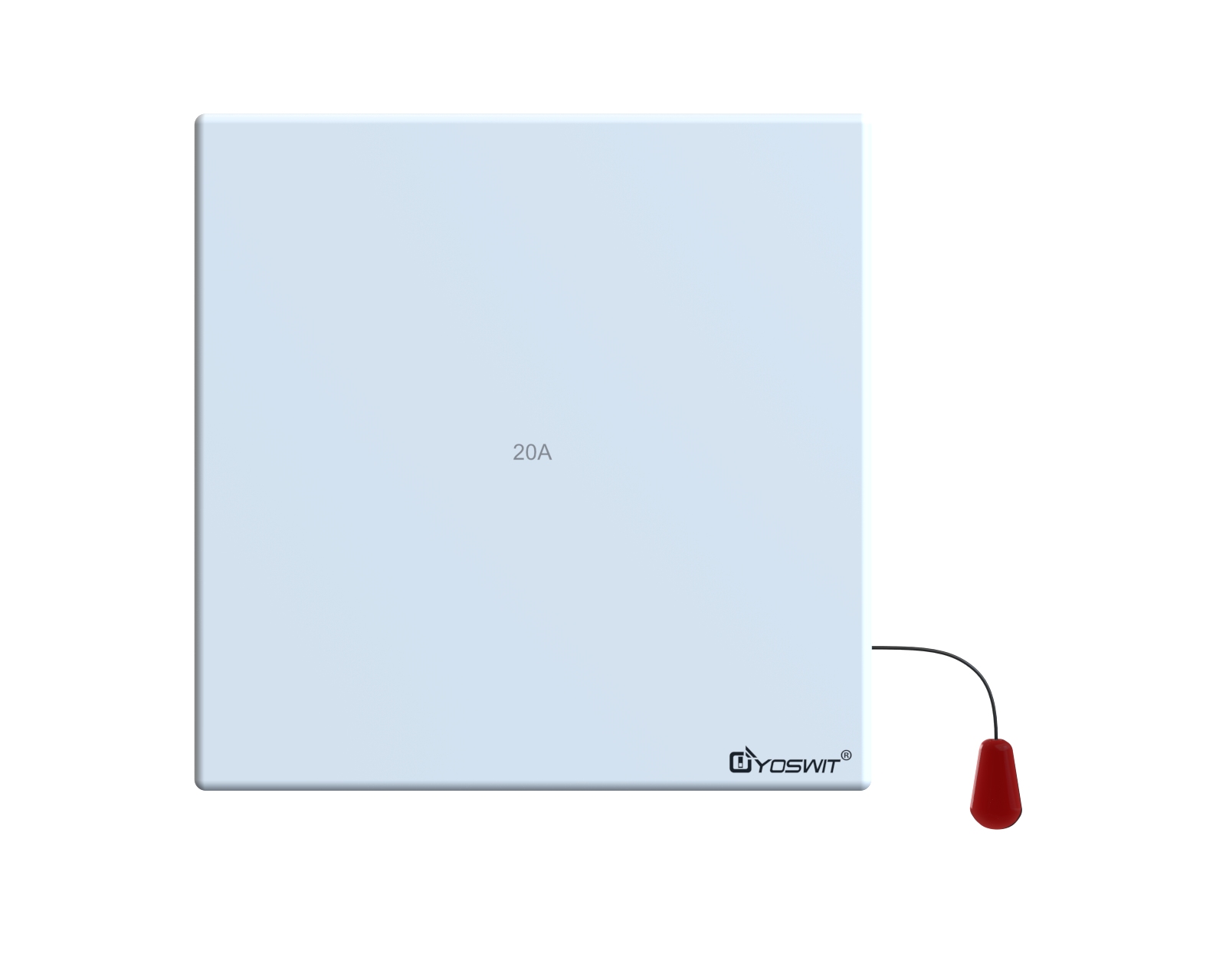

- Built-in IR transmitter + App control: Controls IR appliances directly and via the Yoswit App for flexible operation.
- Energy monitoring: Real-time, second-by-second power consumption tracking for high-energy appliances; measurement accuracy ±3%.
- Built-in schedule / timer: Weekly, daily, hourly or per-minute rules stored in the switch; runs even if the phone disconnects.
- Works as a Yoswit hub: Built-in Wi-Fi connects other Yoswit products; manage all devices from one app.
- Wi-Fi + Bluetooth coverage: BLE mesh for local stability, Wi-Fi for remote control; better wall penetration and whole-home range.
- Third-party smart-home compatible: Google Home and other mainstream platforms supported.
- OTA remote upgrade: New features/fixes pushed automatically, no manual intervention.
- No gateway / no rewiring / no complex setup in the Yoswit smart-switch philosophy.
- LED compatible: Single-wire (no-neutral) LED from 3W and above.
Electrical Specifications
Item | Value |
|---|---|
Input Voltage | 100–240V AC, 50/60Hz |
Power Consumption | ≤1W |
Max Load | 20A / 2HP |
Power Measurement Accuracy | ±3% |
Mechanical Specifications
Item | Value |
|---|---|
Operating Environment | Indoor |
Operating Temperature | -10°C ~ 40°C |
Operating Humidity | 0–95% RH, non-condensing |
Control Method | App / Manual |
Ingress Protection | IP20 |
IR Blaster Range | 2 m |
Panel Size | 86 × 86 mm (86-type) |
Wireless Specifications
Item | Value |
|---|---|
Connectivity | Wi-Fi 2.4GHz + BLE 4.2 |
Frequency | 2.4 GHz |
Range | >50 m open area / 3–20 m indoor |
App Compatibility
- iOS 13.0 or later
- Android 7.0 or later
- Yoswit App (iOS / Android APK)
- Bluetooth Smart Ready devices supported
- Third-party: Google Home / mainstream smart-home platforms
Package / Documents
- Smart double-pole switch with IR main unit
- Mounting screws
- User manual (EN / Simplified Chinese)
- Datasheet
- Leaflet: Smart Lighting Switch
- Product catalogue / Hong Kong product catalogue
