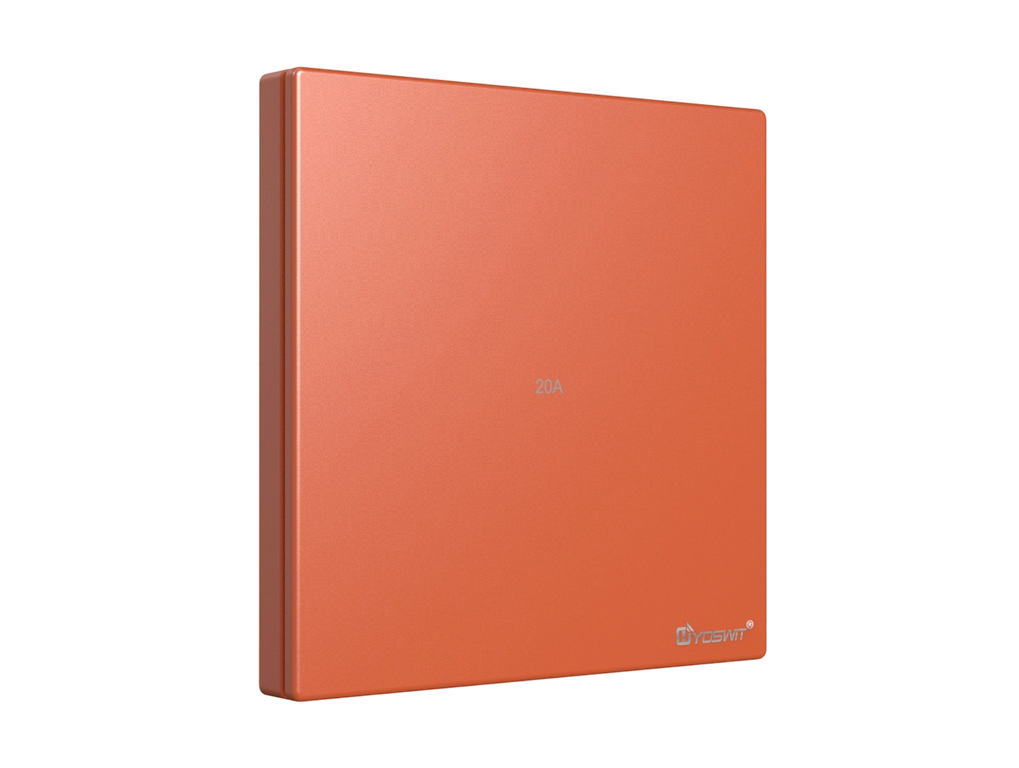

Yoswit Smart Double-Pole Switch with IR — 1-Gang

Page / URL model: YO2086s-1GC-IR (R2W)-MEC-A

Product Name: Yoswit Smart Double-Pole Switch with IR

Gang: 1-gang

Panel Type: 86-type

Revision: V7.0

Manufacturer: Designed by Yoswit in Hong Kong; assembled in Guangdong, China

Certifications: CE, FCC, RoHS

Tagline

Make your household appliances smart with a powerful double-pole switch — now with built-in infrared control.

Key Features

• Built for high-power appliances
  Supports up to 20A / 2HP — suitable for water heaters, air conditioners, exhaust fans and other high-load devices.
• Built-in IR transmitter + App control
  A built-in IR blaster lets the switch control IR appliances directly, while the Yoswit App provides flexible secondary control.
• Energy consumption monitoring
  Track real-time and even second-by-second power usage for high-consumption appliances. Measurement accuracy: ±3%.
• Built-in scheduling
  Set weekly, daily, hourly or minute-level schedules. Schedules are stored in the switch and continue running even if the phone disconnects.
• Acts as a Yoswit gateway
  With built-in Wi‑Fi, the switch works as a central hub for other Yoswit smart products and can be managed from one app.
• Bluetooth Mesh + Wi‑Fi connectivity
  Bluetooth Mesh strengthens local coverage; Wi‑Fi enables remote control across rooms, floors and walls.
• Third-party smart home compatibility
  Works with mainstream platforms such as Google Home and other smart ecosystems.
• OTA remote upgrade
  Firmware updates are pushed automatically — new features and fixes arrive without manual intervention.

Technology & Positioning

• Switch type: Double-pole
• Max load: 20A / 2HP
• IR blaster cable length: 2 m
• Connectivity: Wi‑Fi 2.4GHz + BLE 4.2
• Energy monitoring accuracy: ±3%
• No hub required for basic BLE use; can act as gateway for other Yoswit devices
• App: iOS 13+ / Android 7+

Specifications

Installation Warnings

• Disconnect power at the service panel before installation.
• Installation must be carried out by a licensed electrician.
• Ground the device according to local regulations; missing ground = unsafe installation / risk of injury.
• Strip wires ≈5mm and follow the wiring diagram.
• Mount to back box, restore power, test the button 2–3 times, then snap faceplate until all corners “click”.
• After installation, open the Yoswit App — the switch is automatically detected and added to your device list.
