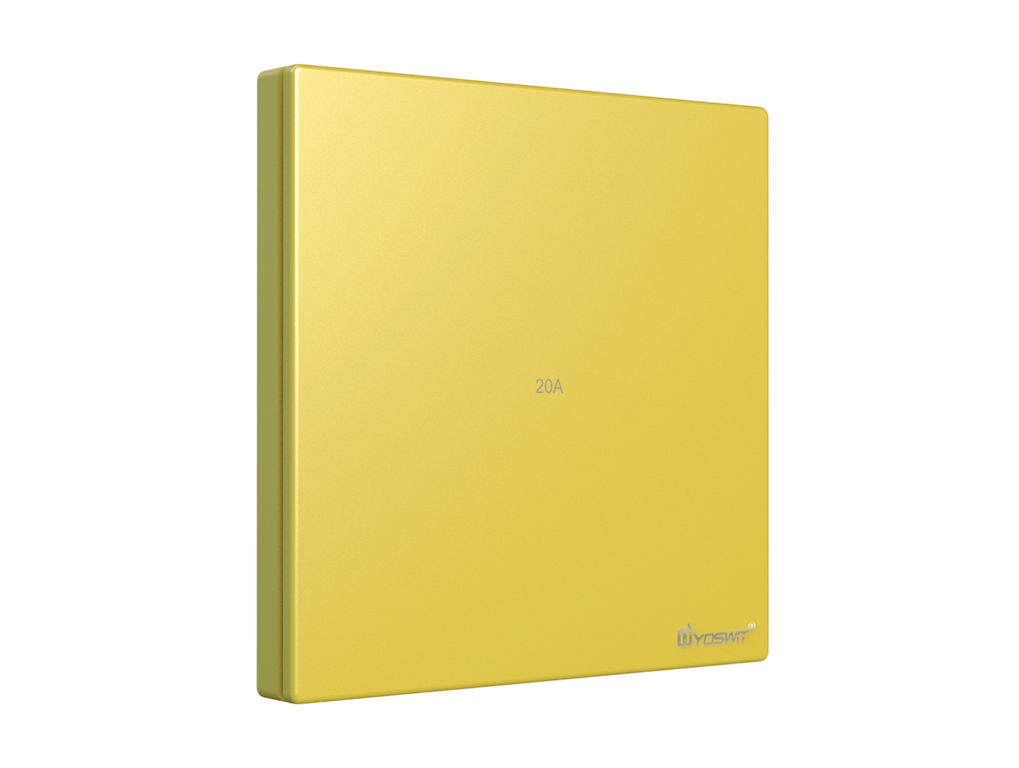

Yoswit Smart Double-Pole Switch — 1-Gang (with IR / Wi‑Fi / BLE)

Page / URL model: YO2086s-1GC (R2W)-MEC-A

Base model: YO2086s-1GC (R2W)

Product Name: Yoswit Smart Double-Pole Switch

Gang: 1-gang

Panel Type: 86-type

Revision: V7.0

Manufacturer: Designed by Yoswit in Hong Kong; assembled in Guangdong, China

Certifications: CE, FCC, RoHS

Tagline

Make your household appliances and workstation smart with a powerful double-pole switch.

Key Features

• Ideal for high-power appliances
  Supports loads up to 20A — suitable for water heaters, air conditioners, exhaust fans and other high-load devices.
• Electricity usage monitoring
  Real-time energy consumption insights; track energy use second by second for high-consumption appliances to reduce waste and save money.
• Built-in scheduling / timer
  Set weekly, daily, hourly or even per-minute schedules. Schedules are stored in the switch and keep running even if the phone disconnects.
• Works as a Yoswit gateway/hub
  Built-in Wi‑Fi lets the switch act as a central controller for other Yoswit smart products; manage everything from the Yoswit App.
• Bluetooth Mesh + Wi‑Fi connectivity
  Bluetooth Mesh strengthens local coverage; Wi‑Fi enables remote control. Stable connection across rooms, floors and thick walls.
• Third-party smart home compatibility
  Works with mainstream platforms such as Google Home and other smart ecosystems for cross-platform control.
• Built-in IR transmitter
  Can control IR appliances directly from the Yoswit App as well as via the switch.
• OTA remote upgrade
  Receives firmware updates automatically; new features and bug fixes are pushed without manual intervention.

Technology & Positioning

• Double-pole switch
• Max load: 20A
• Connectivity: Wi‑Fi 2.4GHz + BLE 4.2 / Bluetooth Mesh
• No extra hub required for basic BLE use; can act as gateway for other Yoswit devices
• App: iOS 13+ / Android 7+
• Panel support: 86 / 118 / 120 (Yoswit 86 line)

Specifications

Installation Warnings

• Disconnect power at the service panel before installation.
• Must be installed by a licensed electrician.
• Ground the device according to local regulations; missing ground = unsafe installation / risk of injury.
• Download the Yoswit App after installation — the switch is automatically detected and added to the device list.

Documents / Downloads

• User manual: Download / Download (Simplified Chinese)
• Datasheet: Download
• Leaflet: Smart Light Switch / Smart Double-Pole Switch
• Product catalogue / Product catalogue (Hong Kong)
• Yoswit App (iOS / Android APK)
