YO2086s-1GCT-IR (R2W)
Production Lead Time:
14 day(s)
产品型号:
YO2086s-1GCT-IR (R2W)
Brand:
Yoswit
Size:
L: 86mm x W: 86mm x H: 32mm
Port:
Hong Kong, Zhongshan, China
Type of Payment:
PayPal, Bank Transfer
Minimum Order Quantity:
1 piece
Operating Temperature:
-10°C to 40°C
Max. Current:
6A
防护等级:
IP20
Package:
Yes
Customised:
Yes
Max. Voltage:
AC100 - 240V
Description
Contact Supplier
Description

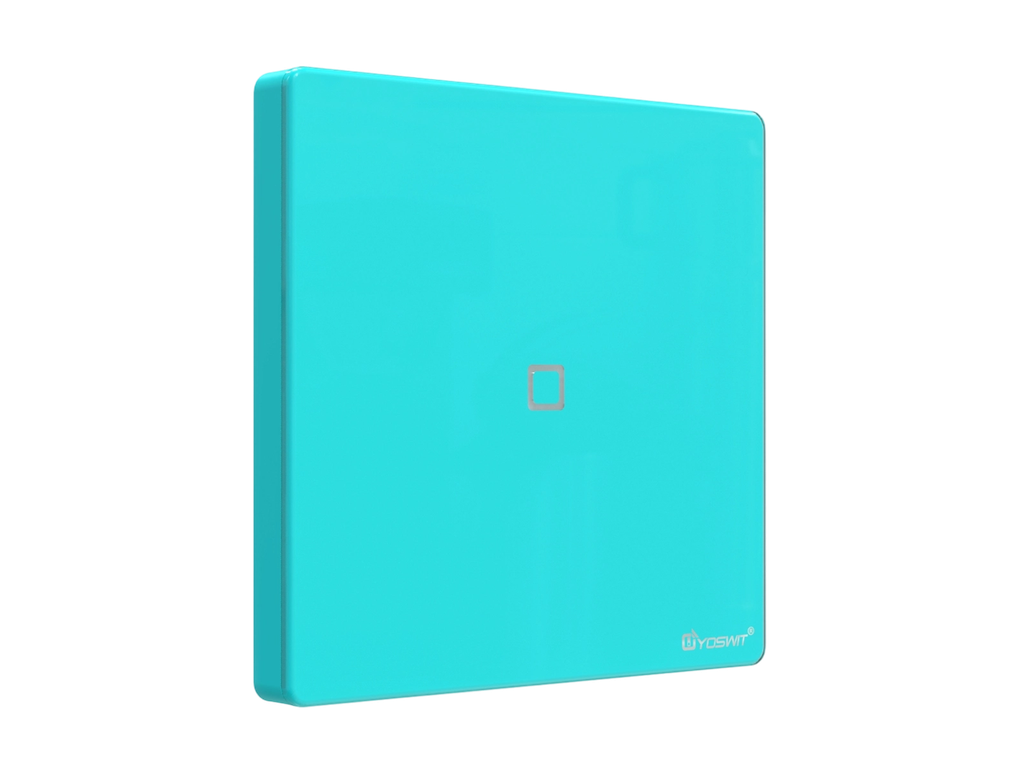

Yoswit Smart Touch Double-Pole Switch with IR — 1 Gang
Product Name: Yoswit Smart Touch Double-Pole Switch with IR
Model: YO2086s-1GCT-IR (R2W)
Panel Type: 86-type
Revision: V7.0
Manufacturer: Produced by Yoswit in Hong Kong, assembled in Guangdong, China
Certifications: CE EMC, CE LVD, FCC, RoHS
Tagline
Make your home appliances smart with a double-pole smart switch — control high-power devices and IR appliances from one Yoswit solution.
Key Features
- Built for high-power appliances
Supports up to 20A / 2HP loads — suitable for water heaters, air conditioners, exhaust fans and other high-load devices. - Built-in IR transmitter + Yoswit App control
Controls IR appliances directly via the built-in infrared emitter, and also through the Yoswit App for flexible, multi-mode operation. - Energy consumption monitoring
Monitors real-time power usage. For high-energy appliances, consumption can be tracked second by second to help reduce waste and save money. - Built-in schedule / timer
Set rules by week, day, hour or minute. Schedules are stored in the switch and continue running even if the phone is disconnected. - Works as a hub for other Yoswit products
Built-in Wi-Fi allows the switch to act as a central node, connecting and managing other Yoswit smart devices through the Yoswit App. - Bluetooth + Wi-Fi for stable, wider coverage
Bluetooth Mesh strengthens local control; Wi-Fi enables remote access and better coverage across walls and floors. - Compatible with major third-party smart home systems
Integrates with platforms such as Google Home and other mainstream smart ecosystems for centralized control. - OTA remote upgrade
Receives firmware updates automatically — new features and optimizations are pushed without manual intervention.
Specifications
Item | Value |
|---|---|
Model | YO2086s-1GCT-IR (R2W) |
Product Name | Yoswit Smart Touch Double-Pole Switch with IR |
Gang | 1-gang |
Panel Type | 86-type |
Revision | V7.0 |
Input Voltage | 100–240V AC, 50/60Hz |
Power Consumption | ≤1W |
Max Load | 20A / 2HP |
Power Measurement Accuracy | ±3% |
IR Emitter | 2 m range |
Wireless | Wi-Fi 2.4GHz / BLE 4.2 |
Frequency | 2.4GHz |
Range | Open area: >50 m / Indoor: 3–20 m |
Operation | App / Manual |
Operating Temp. | -10°C to 40°C |
Operating Humidity | 0–95% RH, non-condensing |
Environment | Indoor |
IP Rating | IP20 |
App Support | iOS 13.0+, Android 7+ |
Certifications | CE EMC, CE LVD, FCC, RoHS |
Installation Warnings
- To avoid electric shock, disconnect the power supply before installation. Installation must be carried out by a licensed electrician.
- To reduce the risk of electric shock, properly ground the switch according to local regulations. Missing ground wire = unsafe installation / risk of personal injury.
