YO2086s-1GK(R2W)
Production Lead Time:
14 day(s)
产品型号:
YO2086s-1GK(R2W)
Brand:
Yoswit
Size:
L: 86mm x W: 86mm x H: 32mm
Port:
Hong Kong, Zhongshan, China
Type of Payment:
PayPal, Bank Transfer
Minimum Order Quantity:
1 piece
Operating Temperature:
-10°C to 40°C
Max. Current:
6A
防护等级:
IP20
Package:
Yes
Customised:
Yes
Max. Voltage:
AC100 - 240V
Description
Contact Supplier
Description

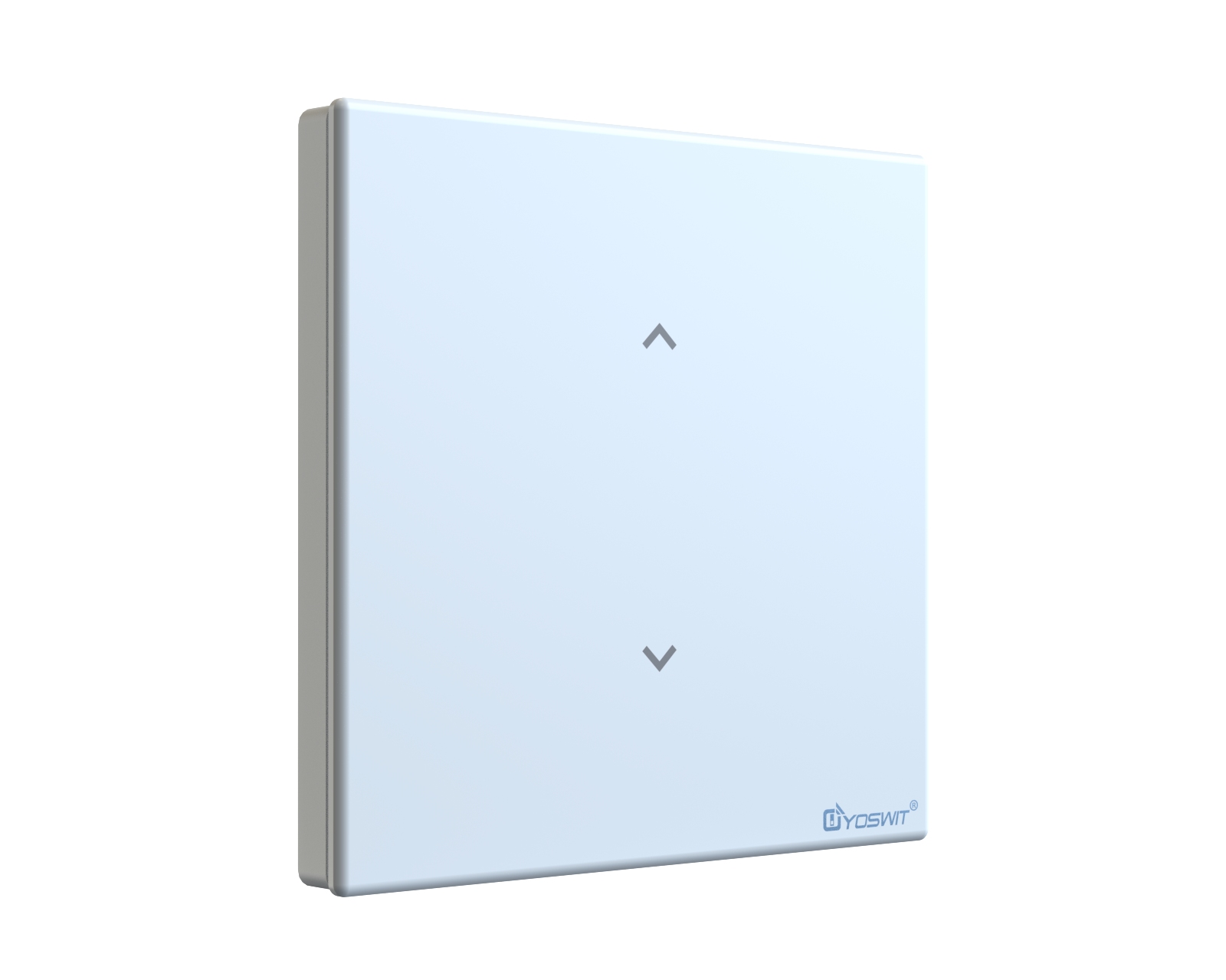

Yoswit Smart Curtain Switch
Model: YO2086s-1GK (R2W)
Product Name: Yoswit Smart Curtain Switch
Revision: V7.0

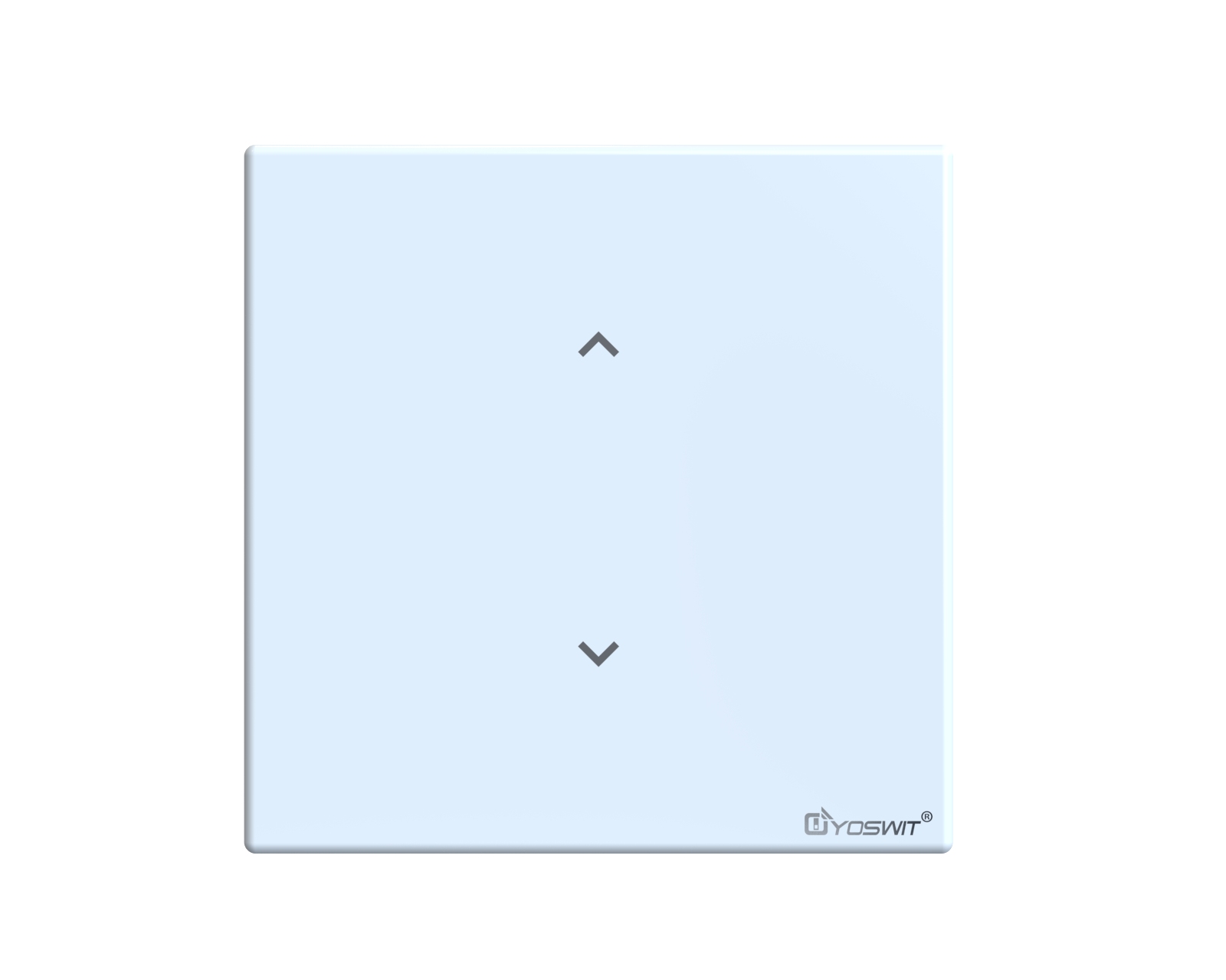

Panel Type: 86-type
Designed by: Yoswit in Hong Kong, China
Assembled in: Guangdong, China
Certifications: CE (EMC + LVD), FCC, RoHS
Product Summary

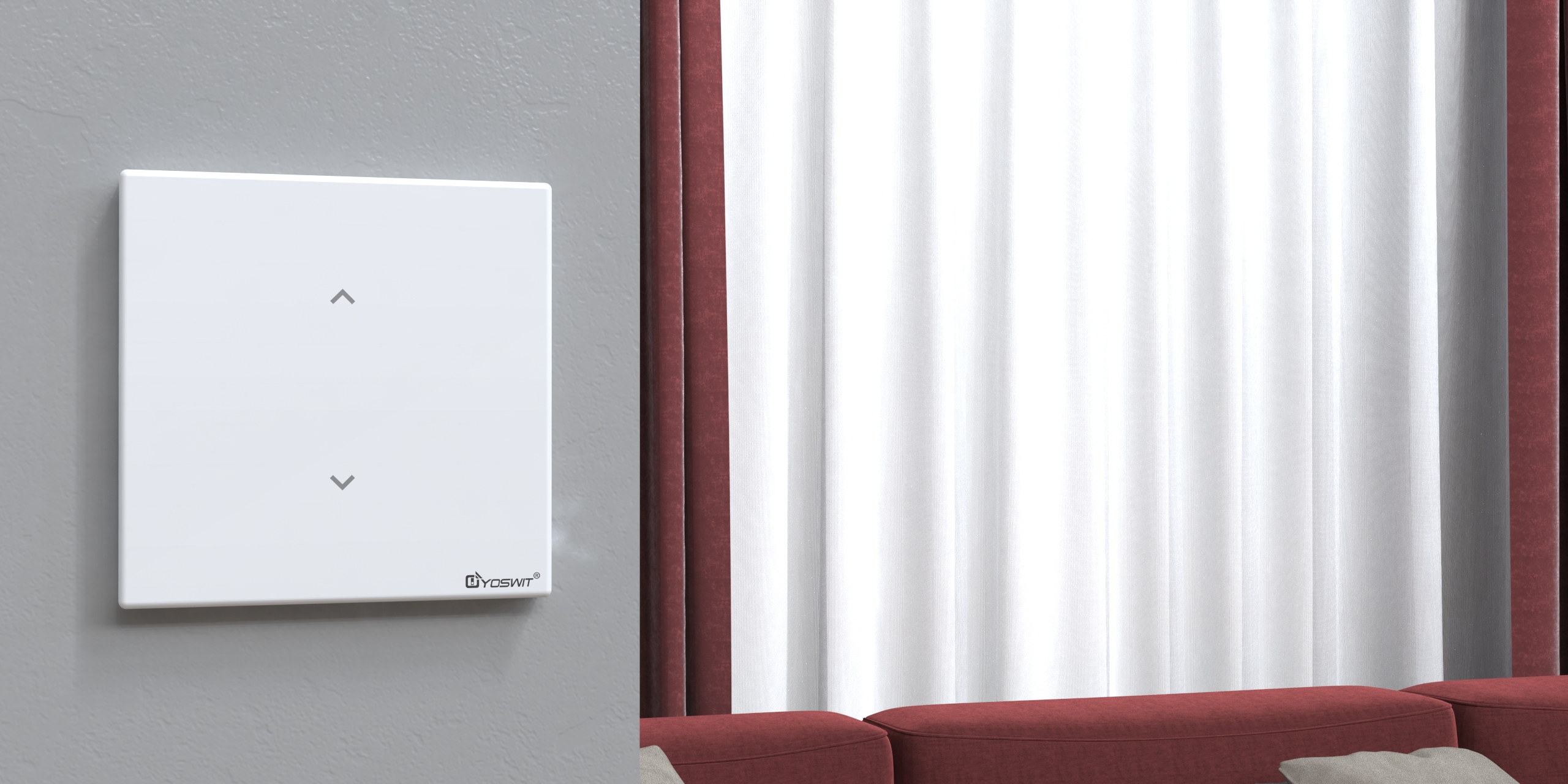

A smart curtain/blind switch that upgrades traditional AC-motor curtains to app- and voice-controllable automation. It uses the same wiring as a conventional curtain switch (L1, L2, N), needs no extra signal wires, no rewiring, no gateway, and no complex pairing.
Key Features
Compatible with traditional AC motors: Works with standard AC curtain motors; retrofit in minutes

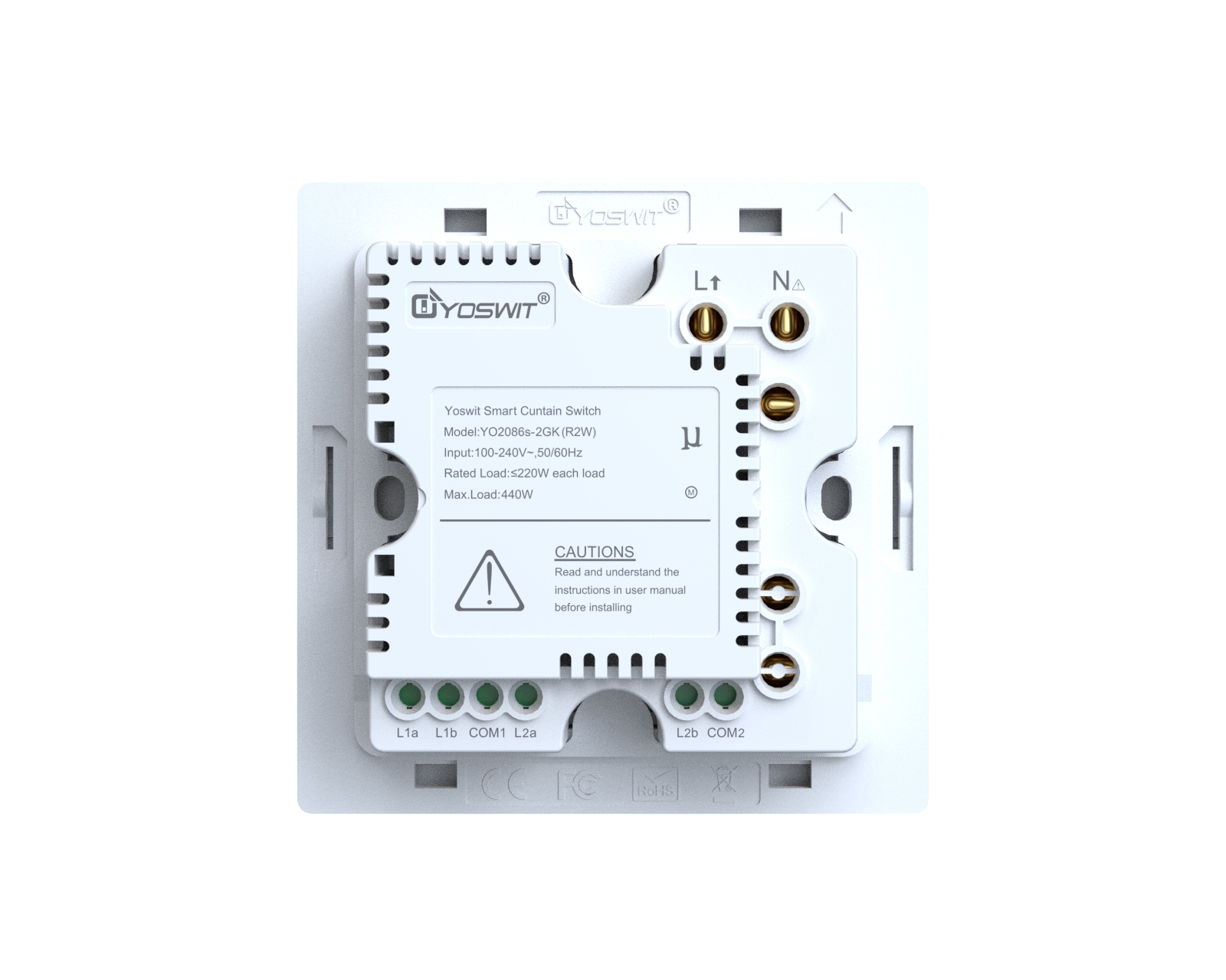

Compatible with traditional wiring: Connects to motor via L1, L2, N; no additional signal wire required
Custom runtime / travel time: Set motor run time in Yoswit App to adjust how far curtains open/close
Dual control mode:
Short press: fully open / fully close
Long press and release: stop at desired position
Switch lock: Lock the switch in App to prevent accidental operation at home, office, or public areas
Stop & lock button: Middle button stops the motor; whole switch can also be locked
Single-layer & double-layer curtain support
No gateway / no rewiring / no setup / no pairing
Wi Fi + Bluetooth: Remote control via Wi Fi, stable local control via BLE Mesh
Electrical Specifications
Item | Value |
Input Voltage | 100–240V AC, 50/60Hz |
Power Consumption | ≤1W |
Max Load | 440W |
Mechanical Specifications
Item | Value |
Operating Environment | Indoor only |
Operating Temperature | -10°C ~ 40°C |
Operating Humidity | 0–95% RH, non-condensing |
Control Method | App / Manual |
Ingress Protection | IP20 |
Product Size | 86 × 86 mm (86-type panel) |
Wireless Specifications
Item | Value |
Connectivity | Wi Fi 2.4GHz + BLE 4.2 |
Frequency | 2.4 GHz |
Range | >50 m open area / 3–20 m indoor |
App Compatibility
iOS 13.0 or later
Android 7.0 or later
Yoswit App（App Store / Android APK）
Compatible with Bluetooth Smart Ready devices
Package / Documents
Smart curtain switch main unit
Mounting screws
User manual（EN / Simplified Chinese）
Datasheet
Leaflet: Smart Lighting Switch
Product catalogue / Hong Kong product catalogue
Installation Warnings
Turn off circuit breaker before installation; install by licensed electrician
Ground the device per local electrical code; missing ground = unsafe

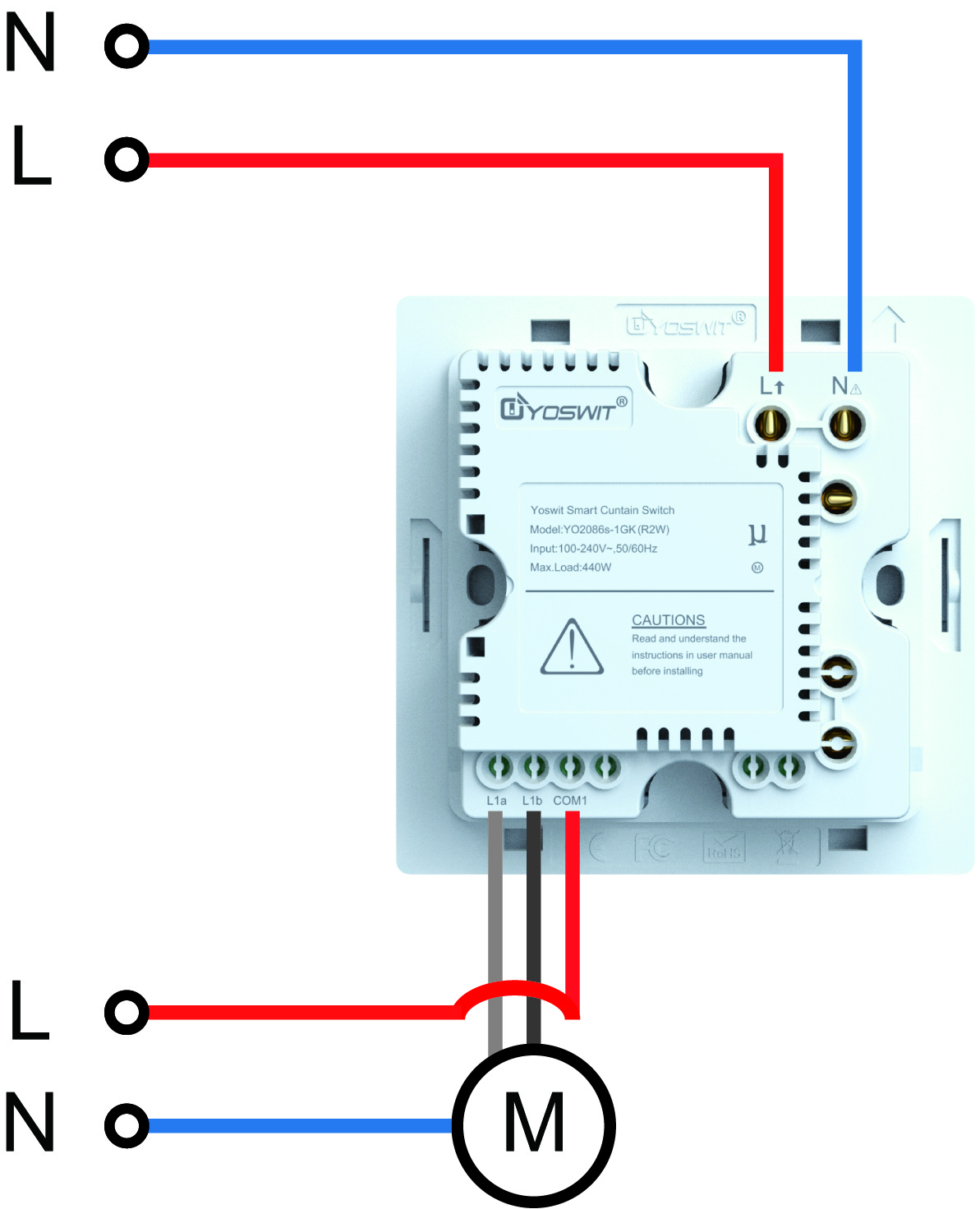

Connect L1, L2, N to the curtain motor according to wiring diagram
After power on: press the curtain switch several times; curtain/screen should open and close accordingly
Snap the faceplate back; “click” at corners means correct placement
Open Yoswit App — the switch is auto-detected and added to the device list
Competitive Notes vs Schneider / Legrand / Others
No gateway
No rewiring
No setup / no pairing
Curtain switch（single-layer & double-layer）
Traditional AC motor compatible
Wi Fi + Bluetooth
Panel support: 55 / 86 / 118 / 120（this unit: 86-type）
