YO2086s-1GK (R2W)-MEC-A
Production Lead Time:
14 day(s)
产品型号:
YO2086s-1GK(R2W)-MEC-A
Brand:
Yoswit
Size:
L: 86mm x W: 86mm x H: 32mm
Port:
Hong Kong, Zhongshan, China
Type of Payment:
PayPal, Bank Transfer
Minimum Order Quantity:
1 piece
Operating Temperature:
-10°C to 40°C
Max. Current:
6A
防护等级:
IP20
Package:
Yes
Customised:
Yes
Max. Voltage:
AC100 - 240V
Description
Contact Supplier
Description

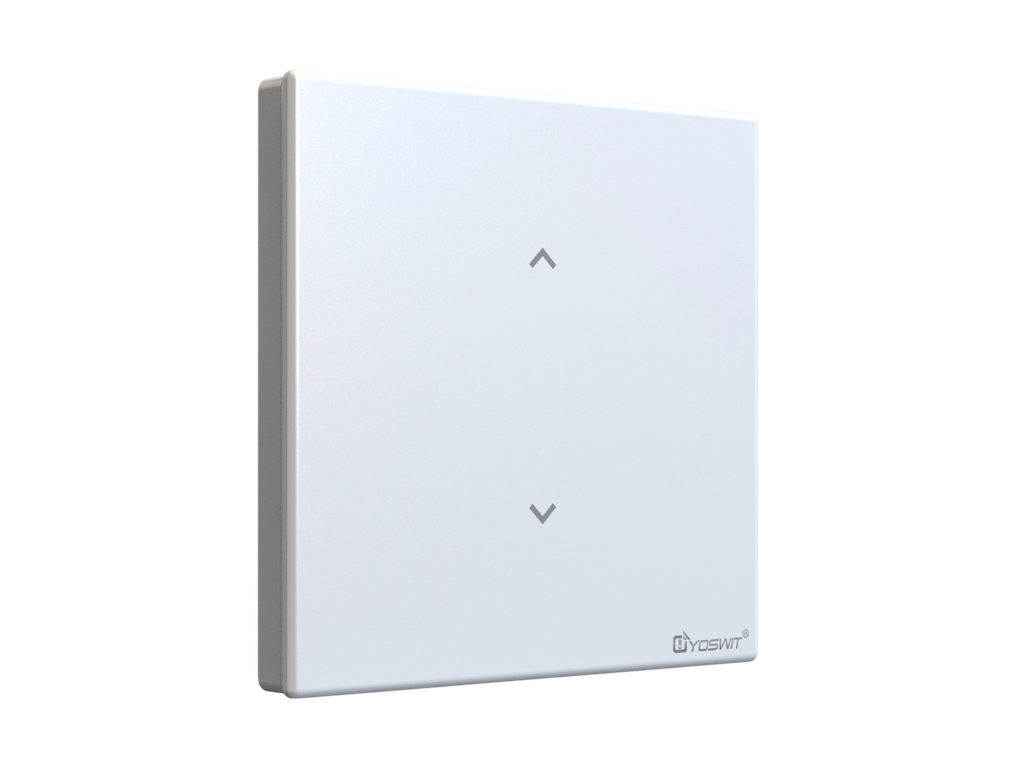

Yoswit Smart Curtain Switch — 1 Layer
Product Name: Yoswit Smart Curtain Switch
Model: YO2086s-1GK (R2W)-MEC-A
Socket / Panel Type: 86-type
Revision: V7.0
Manufacturer: Designed by Yoswit in Hong Kong, China / Assembled in Guangdong, China
Compliance: CE, FCC, RoHS
Tagline
Add distinction to your living space and experience convenience with a smart curtain switch.
Key Features
- Plays well with motor
Supports traditional AC curtain / roller-blind motors. No rewiring or redecoration needed — replace the old curtain switch with Yoswit in minutes. - Compatible with existing wiring
Wiring is the same as a traditional curtain switch. Connects to the motor via L1, L2 and N. No extra signal wire required. - Customized run time
Set the motor run time in the Yoswit App to customize how far the curtains open or close. - Short and long press mode
Short press = fully open / close. Hold and release = finer control of curtain movement. - Switch lock
Lock the switch to prevent accidental operation at home, office or public areas. Activate / deactivate from the Yoswit App. - Stop & lock button
Press the center button to stop moving curtains / blinds. When the motor is not running, the same button can lock the whole switch.
Comparison Snippet
Brand / Model | Curtain switch | Supported layers | Socket types | Technology |
|---|---|---|---|---|
Yoswit Smart Switch | Yes | 1 & 2 layer | 55 / 86 / 118 / 120 | Bluetooth |
Schneider (ULTI Ezinstall3) | — | — | 55 / 86 | RF |
Legrand (Arteor/Adorne/Radiant) | Yes | 1 layer | 55 / 86 / 120 | Zigbee / RF |
Leviton (Decora) | — | — | — | — |
Lutron (Caseta) | — | — | — | — |
Yoswit advantages: No hub / router, no rewiring, no setup, no pairing.
Specifications
Item | Value |
|---|---|
Model | YO2086s-1GK (R2W)-MEC-A |
Product Name | Yoswit Smart Curtain Switch |
Panel Type | 86-type |
Revision | V7.0 |
Input Voltage | 100–240V AC, 50/60Hz |
Power Consumption | ≤1W |
Max Load | 440W |
Wireless | Wi-Fi 2.4G / BLE 4.2 |
Frequency | 2.4GHz |
Range | Open area: >50 m / Indoor: 3–20 m |
Operation | App / Manual |
Environment | Indoor |
Operating Temp. | -10°C to 40°C |
Operating Humidity | 0–95% RH, non-condensing |
IP Rating | IP20 |
Certifications | CE, FCC, RoHS |
Installation Warnings
- Disconnect power at the service panel before installation.
- Installation must be carried out by a licensed electrician.
- Ground the device according to local regulations.
- Connect L1, L2 and N to the motor as shown in the wiring diagram.
- Restore power and test the switch several times; curtains / blinds should move accordingly.
- Snap the faceplate onto the frame until seated.
- Open the Yoswit App — the switch is automatically detected and added.
