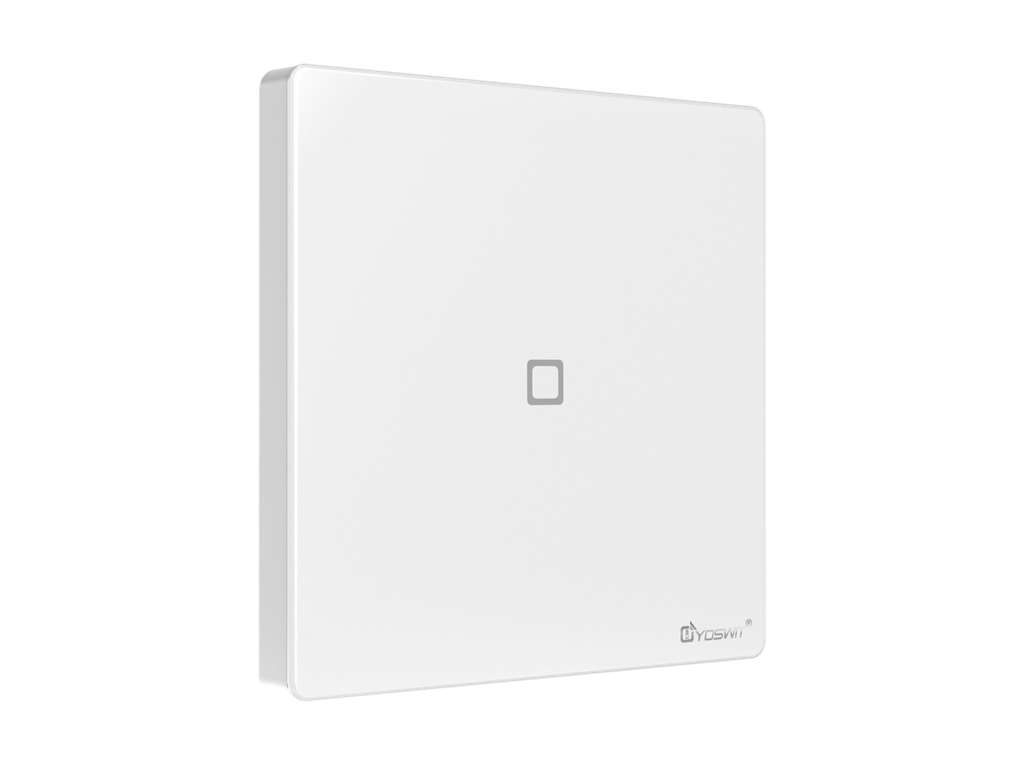

Yoswit YO2086s‑1GT (R2) Smart Touch Light Switch

Key Features

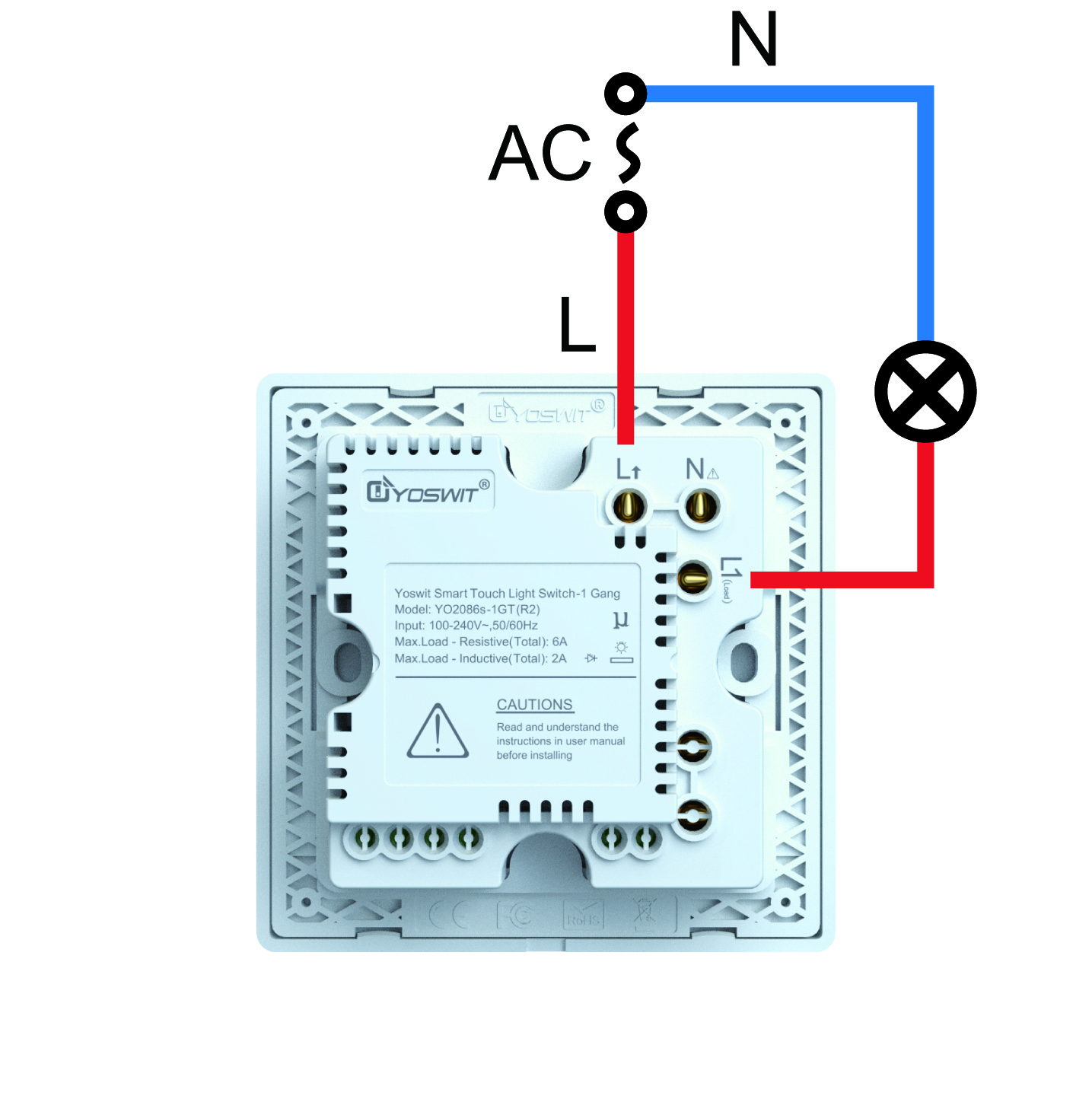

1. No‑rewiring design, compatible with both 2‑wire (no‑neutral) and 3‑wire (with‑neutral) wiring. Direct replacement for traditional 1‑gang wall switches.
2. Built‑in BLE Bluetooth 4.2, no hub or gateway required. Yoswit App automatically detects the device; no manual pairing and complicated configuration.
3. Touch‑panel manual control plus smartphone App remote control. Supported functions include time‑delay, countdown, schedule timer, scene activation and away‑detection.
4. Wide lamp compatibility, supports incandescent, halogen and LED bulbs. Minimum 3 W LED load under 2‑wire installation.
5. Additional configurable functions: switch lock to avoid unintended operation, customisable LED indicator behaviour, adjustable power‑up default status after power restoration.
6. Works with conventional 3‑way switches for multi‑point control scenarios.

Mechanical Specifications

Item    Value Operating Environment    Indoor use only Operating

Temperature    ‑10 °C ~ 40 °C

Operating Humidity    0‑95 % RH,

 non‑condensing Ingress Protection

IP20 Product Dimension    86 × 86 mm (86‑type touch panel)

Electrical Specifications

Item    Value Input Voltage    100‑240 V AC, 50/60 Hz Power Consumption    ≤ 1 W Max Resistive Load Current    6 A Max Inductive Load Current    2 A Minimum Load    3 W (2‑wire no‑neutral installation only)

Warning: LED flickering or unstable performance may occur under 2‑wire wiring. Solve the issue by adopting 3‑wire wiring or installing optional LED power stabilizer (safety capacitor accessory).

Bluetooth / Wireless Parameters Item    Value Bluetooth Version    Bluetooth 4.2 (BLE‑Bluetooth Low Energy) Radio Frequency    2.4 GHz Wireless Communication Range    ＞50 m open‑area; 3‑20 m indoor environment

Package Contents Item    Quantity 1‑gang Touch Smart Switch Unit    1 pc Mounting Screws    2 pcs User Manual    1 pc Safety Capacitor (LED power stabilizer)    1 pc Warranty Card    1 pc Outer Package Dimension    142 × 108 × 52 mm

Mobile Application Compatibility System Requirement    Supported Version iOS    iOS 13.0 or later Android    Android 7.0 or later Supported APP    Yoswit App (Download via App Store or official Android APK)

Important Installation Warnings

1. Disconnect circuit‑breaker power supply before installation. Installation must be performed by licensed electricians to prevent electric‑shock hazard.
2. Proper earthing shall be implemented according to local electrical codes. Missing ground connection will bring personal injury risk.
3. After finishing hardware installation, manually tap touch panel 2‑3 times to verify on‑off performance. Launch Yoswit App for automatic device discovery and adding.

Official Download Resources ‑ V7.0 English Data‑Sheet PDF ‑ User Manual (English / Simplified Chinese SC edition) ‑ Product leaflet & full‑range product catalogue ‑ Android Yoswit APK installation file
