YO2086s-2GK(R2W)
Production Lead Time:
14 day(s)
产品型号:
YO2086s-2GK(R2W)
Brand:
Yoswit
Size:
L: 86mm x W: 86mm x H: 32mm
Port:
Hong Kong, Zhongshan, China
Type of Payment:
PayPal, Bank Transfer
Minimum Order Quantity:
1 piece
Operating Temperature:
-10°C to 40°C
Max. Current:
6A
防护等级:
IP20
Package:
Yes
Customised:
Yes
Max. Voltage:
AC100 - 240V
Description
Contact Supplier
Description

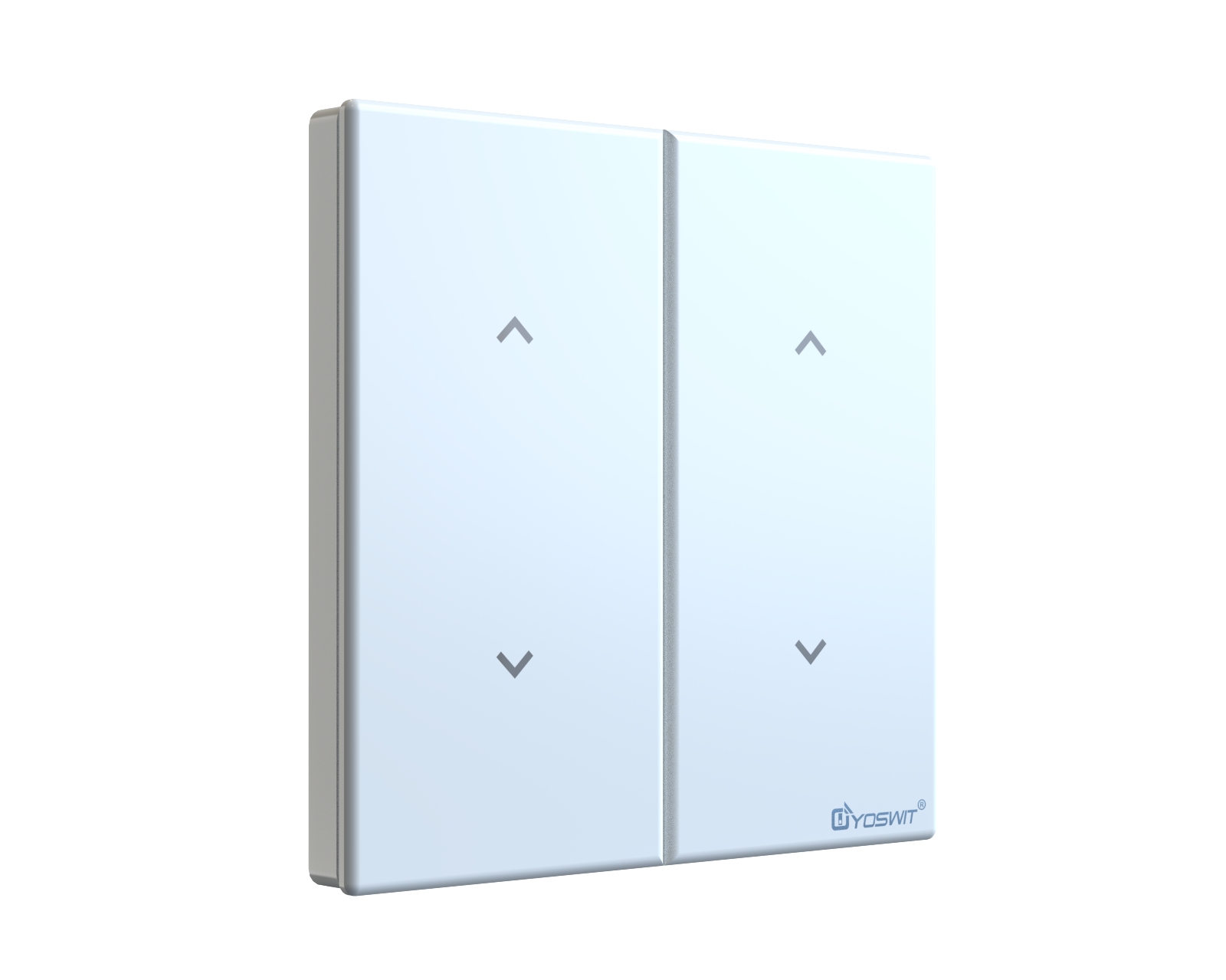

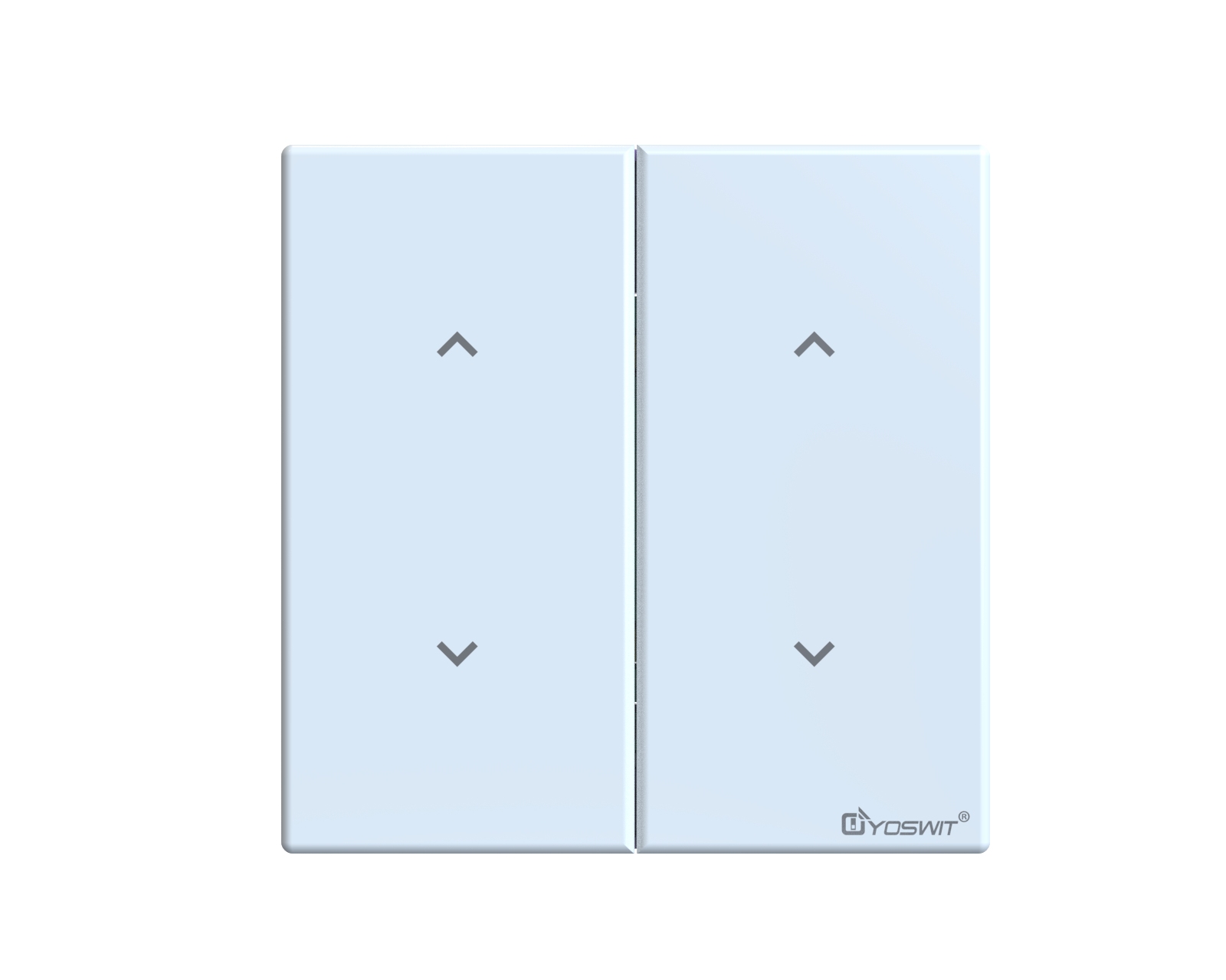

Yoswit Smart Curtain Switch（2-Gang / 2-Layer）
Model: YO2086s-2GK (R2W)
Product Name: Yoswit Smart Curtain Switch
Type: 2-gang curtain switch（supports 1-layer & 2-layer curtains/blinds）
Socket / Panel Type: 86-type
Revision: V7.0
Designed by: Yoswit in Hong Kong, China
Assembled in: Guangdong, China
Certifications: CE, FCC, RoHS
Product Summary
A 2-gang smart curtain/blind switch for controlling one or two curtain layers（e.g. sheer + blackout）with a traditional AC motor. It keeps the same L1 / L2 / N wiring as a conventional curtain switch, needs no extra signal wire, no rewiring, no gateway, and no manual pairing.
Key Features
- Plays well with traditional AC motors: Retrofit in minutes; no renovation required
- Compatible with existing wiring: Connects to motor via L1, L2, N; no extra control/signal wire
- Customized run time: Set motor runtime in Yoswit App to adjust how far curtains open/close
- Short-press & long-press control:
- Short press: fully open / fully close
- Long press and release: stop at desired position
- Dual output flexibility: Can control curtains, blinds, privacy glass, garage door, or electric strike depending on wiring/mode
- Switch lock: Lock ON/OFF state via Yoswit App to prevent accidental operation
- Stop & Lock button: Center button stops the motor; same button can lock the whole switch when motor is idle
- 1-layer & 2-layer curtain support
- No rewiring / no setup / no pairing
- Wi‑Fi + Bluetooth: Remote control via Wi‑Fi, local control/stability via BLE
Load / Motor Compatibility
Wiring | LED / Motor notes |
|---|---|
2-wire（no neutral） | 3W or above supported |
2-wire + power driver（no neutral） | All |
3-wire（with neutral） | All |
Electrical Specifications
Item | Value |
|---|---|
Input Voltage | 100–240V AC, 50/60Hz |
Power Consumption | ≤1W |
Max Load | 440W（per product family; confirm per gang if required） |
Mechanical Specifications
Item | Value |
|---|---|
Operating Environment | Indoor |
Operating Temperature | -10°C ~ 40°C |
Operating Humidity | 0–95% RH, non-condensing |
Control Method | App / Manual |
Ingress Protection | IP20 |
Panel Size | 86 × 86 mm（86-type） |
Wireless Specifications
Item | Value |
|---|---|
Connectivity | Wi‑Fi 2.4GHz + BLE 4.2 |
Frequency | 2.4 GHz |
Range | >50 m open area / 3–20 m indoor |
App Compatibility
- iOS 13.0 or later
- Android 7.0 or later
- Yoswit App（iOS / Android APK）
- Bluetooth Smart Ready devices supported
Package / Documents
- Smart curtain switch main unit（2-gang）
- Mounting screws
- User manual（EN / Simplified Chinese）
- Datasheet
- Leaflet: Smart Curtain / Lighting Switch
- Product catalogue / Hong Kong product catalogue
Installation Warnings
- Turn off circuit breaker before installation; install by licensed electrician
- Ground the device according to local electrical code

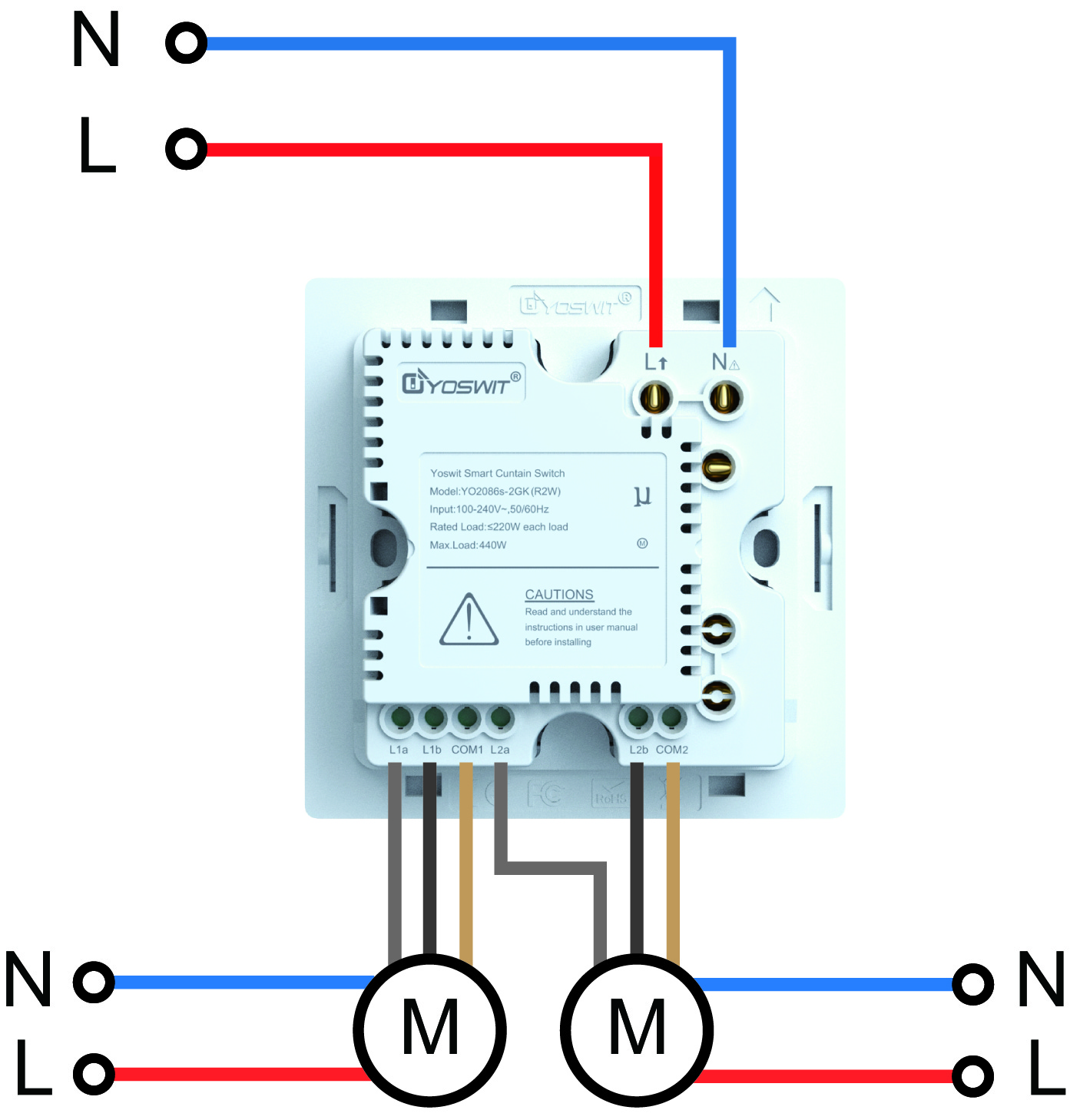

- Connect L1, L2, N to the AC curtain motor as shown in the wiring diagram
- After power on: press buttons to verify open/close/stop behavior
- Snap faceplate back until corners “click”
- Open Yoswit App — switch is auto-detected
