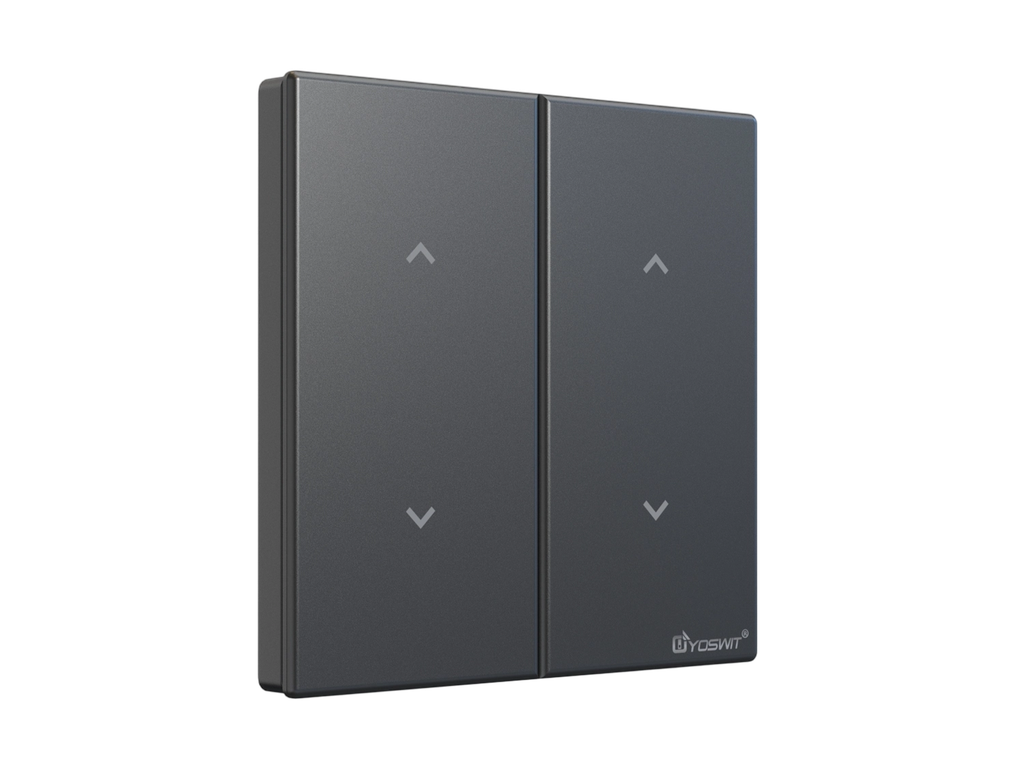

Yoswit Smart Curtain Switch — 2-Layer

Model: YO2086s-2GK (R2W)-MEC-A

Product Name: Yoswit Smart Curtain / Roller Blind Switch

Type: Curtain switch, 1 & 2 layer supported

Panel Type: 86-type

Revision: V7.0

Manufacturer: Designed by Yoswit in Hong Kong; assembled in Guangdong, China

Certifications: CE, FCC, RoHS

Tagline

Add comfort and convenience to your living space with a smart curtain switch — no rewiring, no hub, no complicated setup.

Key Features

• Works with traditional AC motors
  Supports conventional curtain / roller-blind AC motors. Replace the old curtain switch with Yoswit — no renovation required.
• Compatible with existing wiring
  Wiring is the same as a traditional curtain switch: connects to the motor via L1, L2 and N. No extra signal wire needed.
• Customized run time
  Set the motor run time in the Yoswit App to adjust how far the curtains / blinds open or close.
• Short-press & long-press control
  Short press = fully open / close. Long press and release = fine control of curtain movement / stop position.
• Switch lock
  Lock the switch in a fixed state to prevent accidental operation at home, office or public areas. Enable/disable from the Yoswit App.
• Stop & lock button
  Press the center button to stop the motor. When the motor is not running, the same button can lock the whole switch.

Typical Usage

• Open / Close: curtains, roller blinds, garage door, electric strike, projection screen
• On / Off mode can also control: light, fan, privacy glass

Specifications

Installation Warnings

• Disconnect power at the service panel before installation.
• Installation must be carried out by a licensed electrician.
• Ground the device according to local regulations.
• Connect L1, L2 and N to the curtain/roller motor as shown in the wiring diagram.
• Restore power, test the switch several times; the curtain/blind should move accordingly.
• Snap the faceplate onto the frame until securely seated.
• Open the Yoswit App — the switch is automatically detected and added.
