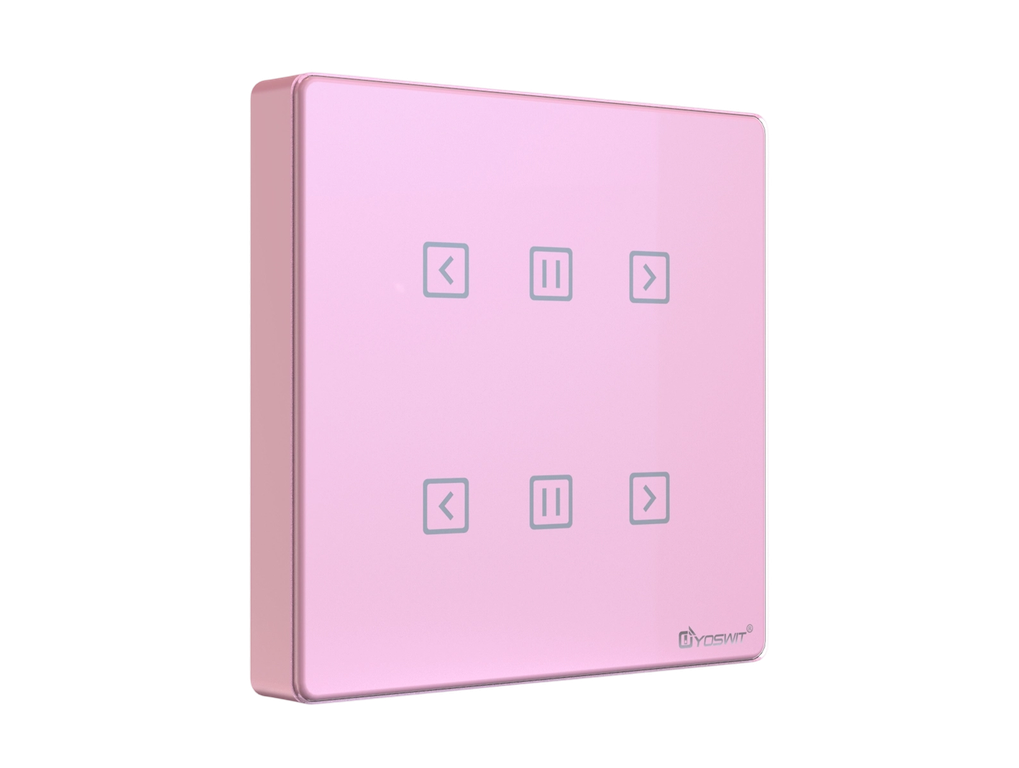

Yoswit Smart Curtain Switch — 2 Gang (Touch)

Product Name: Yoswit Smart Curtain Switch

Model: YO2086s-2GKT (R2W)

Panel Type: 86-type

Revision: V7.0

Manufacturer: Designed by Yoswit in Hong Kong, assembled in Guangdong, China

Certifications: CE, FCC, RoHS

Tagline

Add comfort and convenience to your living space with a 2-gang smart curtain switch.

Key Features

• Compatible with traditional AC motors
  Works with conventional AC curtain / roller motors. No re-wiring or renovation required—replace the traditional curtain switch with Yoswit in minutes.
• Compatible with traditional wiring
  Wiring is the same as a traditional curtain switch. Each channel connects to the motor via L1, L2 and N; no extra signal wire needed.
• Custom run time
  Set motor run time in the Yoswit App to adjust how far the curtains open or close.
• Two control modes
  Short press to fully open/close; press-and-hold then release to stop the curtain at the desired position.
• Switch lock
  Lock the switch in a fixed state to prevent accidental operation at home, office or public areas. Activate/deactivate from the Yoswit App.
• Stop & lock button
  Press the center button to stop the motor, or lock the whole switch when the motor is not running.
• 2 independent curtain channels
  Control two curtains / two motors from one 86-type plate.

Specifications

Installation Warnings

• Disconnect power at the service panel before installation.
• Installation must be carried out by a licensed electrician.
• Ground the unit according to local regulations. Missing ground wire = unsafe installation / risk of injury.

nstallation Steps

1. Remove the old curtain switch and disconnect wires; expose ~5mm bare conductor.
2. Use a small flat-head screwdriver to pry the faceplate from the frame notch.
3. Connect L1, L2, N for each channel according to the wiring diagram / motor manual.
4. Secure the switch into the wall box.
5. Restore power at the circuit breaker.
6. Test by pressing the buttons several times; curtains/rollers should move.
7. Snap the faceplate onto the frame until secured.

App Setup

Download the Yoswit App.

The curtain switch is automatically detected and added to your device list.

Downloads

• User manual: Download / Download (Simplified Chinese)
• Datasheet: Download
• Leaflet: Smart Curtain Switch
• Product catalogue / Product catalogue (Hong Kong)
• Yoswit App: iOS / Android APK
