YO2086s-2GMX(R2W)
Production Lead Time:
14 day(s)
产品型号:
YO2086s-2GMX(R2W)
Brand:
Yoswit
Size:
L: 86mm x W: 86mm x H: 32mm
Port:
Hong Kong, Zhongshan, China
Type of Payment:
PayPal, Bank Transfer
Minimum Order Quantity:
1 piece
Operating Temperature:
-10°C to 40°C
Max. Current:
6A
防护等级:
IP20
Package:
Yes
Customised:
Yes
Max. Voltage:
AC100 - 240V
Description
Contact Supplier
Description

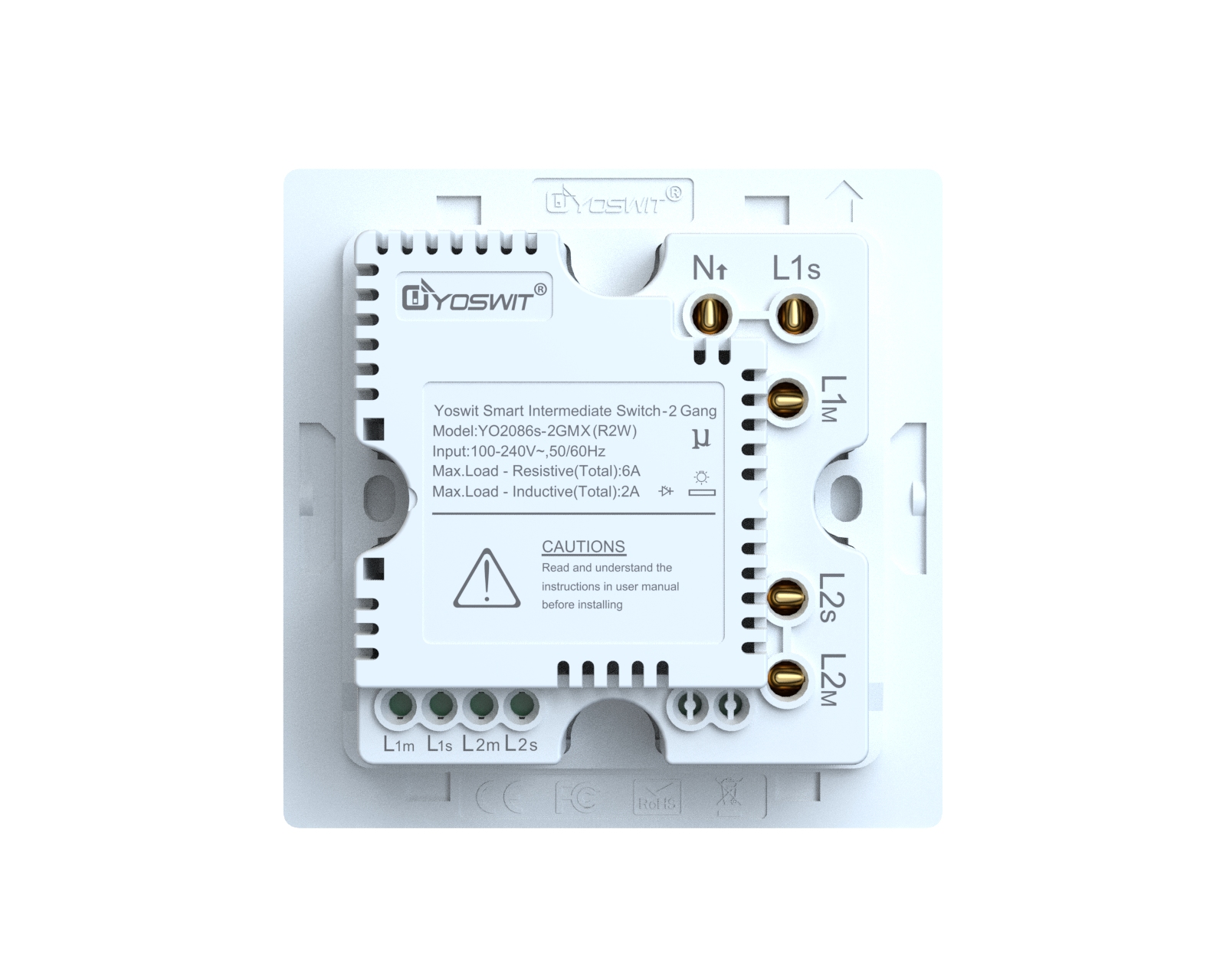

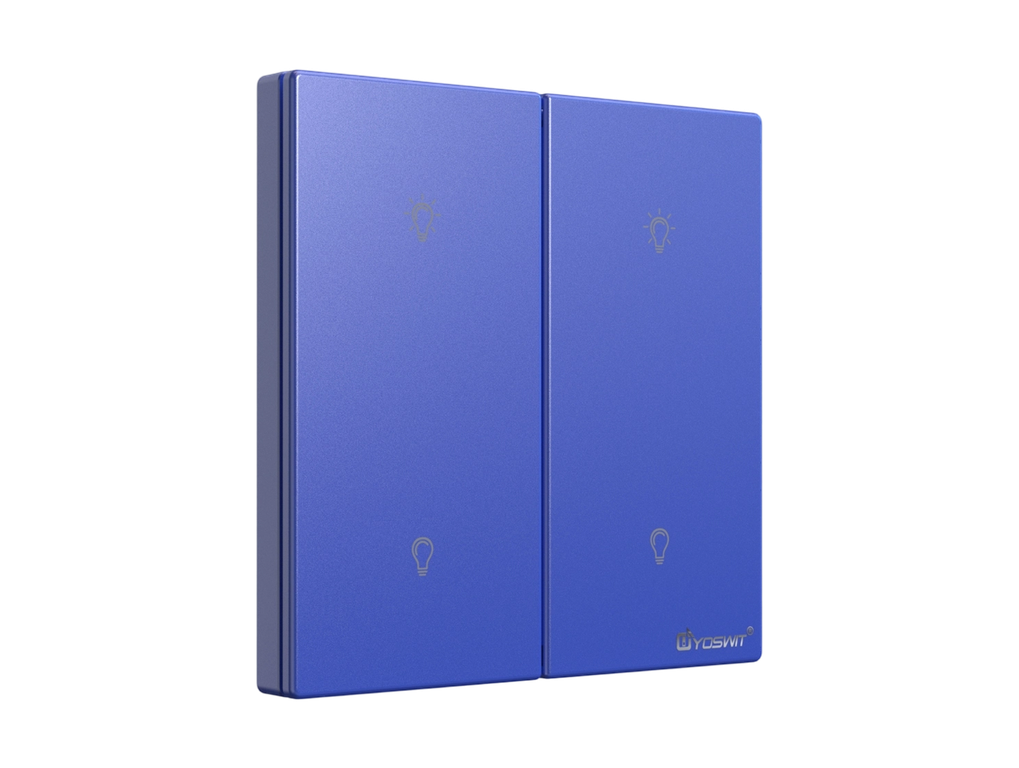

Yoswit Smart Intermediate Switch（2-Gang）
Model: YO2086s-2GMX (R2W)
Product Name: Yoswit Smart Intermediate Switch
Revision: V7.0
Panel Type: 86-type
Designed by: Yoswit in Hong Kong, China
Assembled in: Guangdong, China
Certifications: CE (EMC + LVD), FCC, RoHS
Product Summary
A 2-gang smart intermediate switch for multi-position lighting/appliance control. It can be used alone, paired with two-way/traditional switches, and acts as a WiFi + Bluetooth hub for other Yoswit devices. Controls lights and appliances from anywhere via smartphone, with no gateway, no rewiring, no complex setup, and no manual pairing.
Key Features

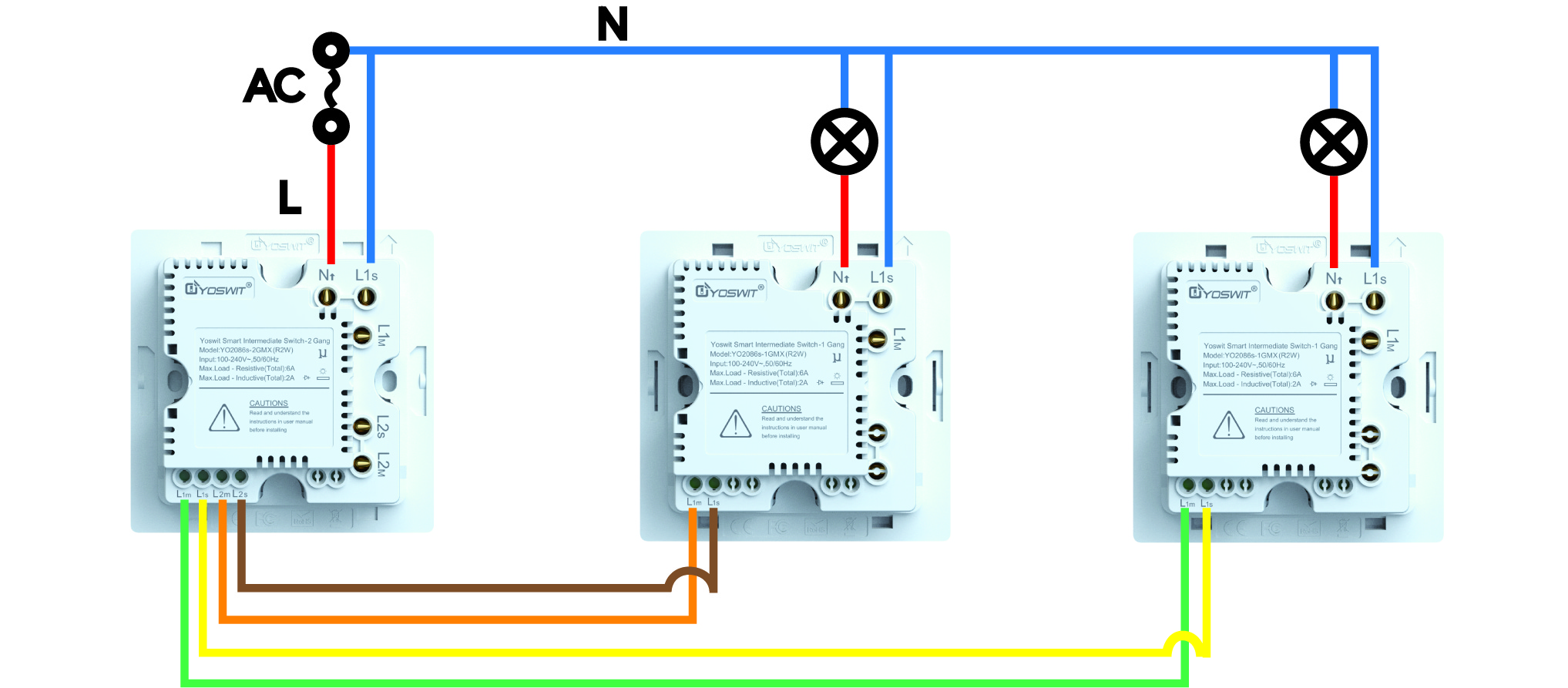

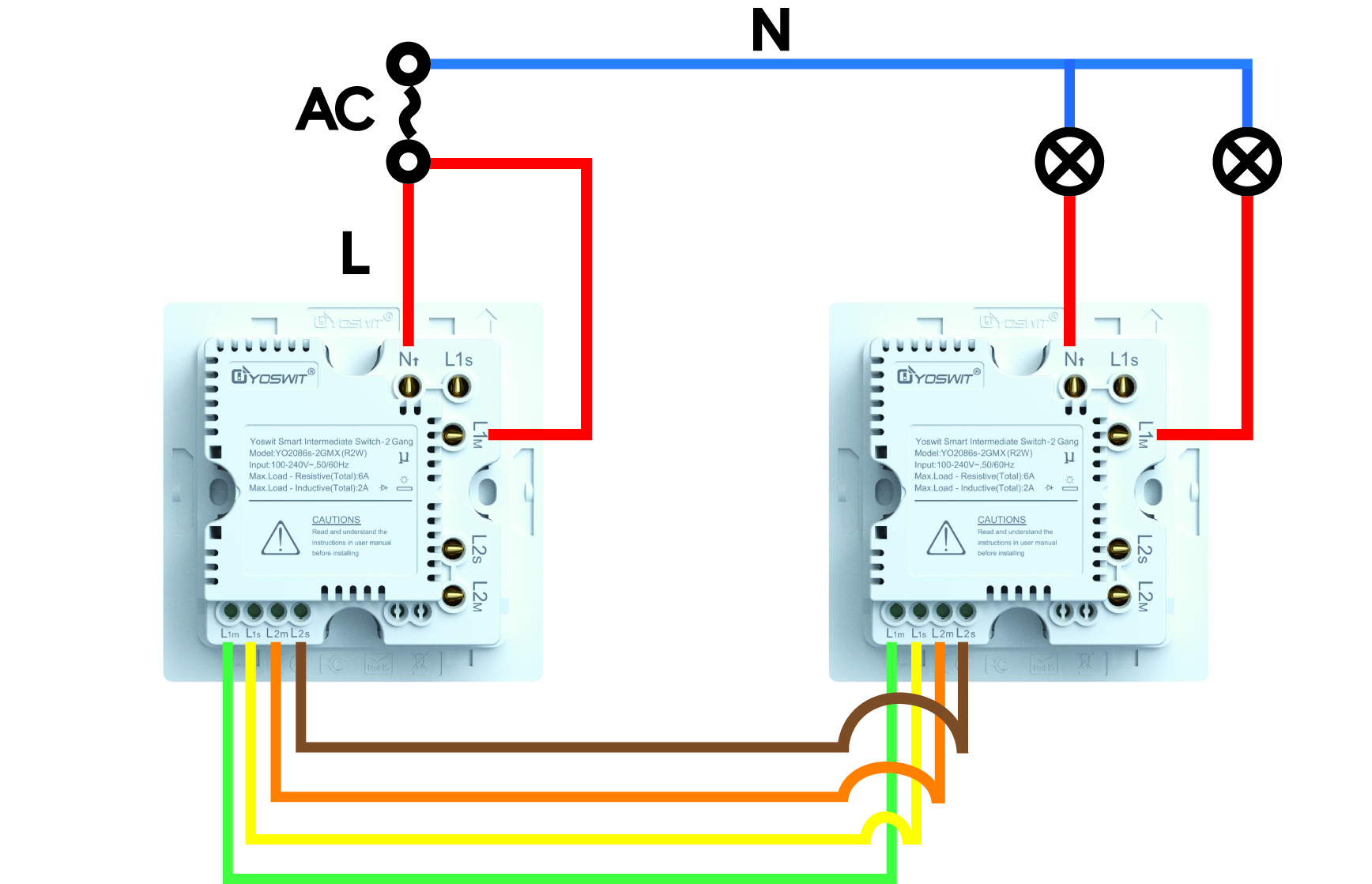

Multi-position control: Control the same load from 3 or more locations
Standalone or combined use: Works as a basic lighting switch, with two-way switches, or in traditional wiring layouts

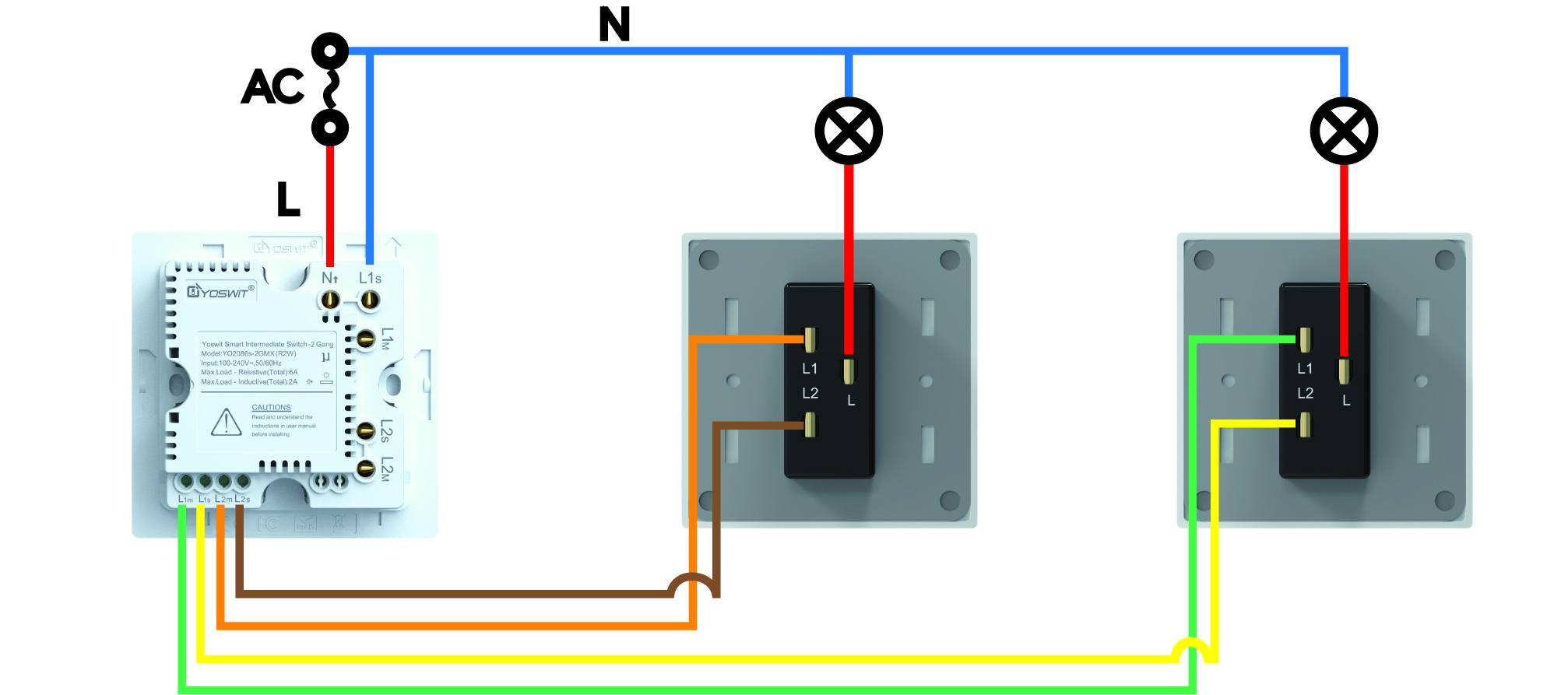

Compatible with traditional switches: Upgrade old systems without major renovation; keeps manual operation + adds smart control
Flexible two-way switch pairing: Suitable for offices, long corridors, multi-entry rooms
Built-in timer / scheduling: Preset ON/OFF times (e.g. wake-up light, away mode) for energy saving
Hub for other Yoswit products: Built-in WiFi connects other Yoswit devices; manage all lights/appliances in Yoswit App
Wi Fi + Bluetooth connectivity: BLE Mesh strengthens local network; WiFi enables remote control; stable coverage for complex layouts
OTA remote upgrade: Push firmware updates to fix bugs and add features
No-neutral friendly: 2-wire / 3-wire supported; LED supported ≥3W on no-neutral
No gateway / no rewiring / no setup / no pairing
Electrical Specifications
Item | Value |
Input Voltage | 100–240V AC, 50/60Hz |
Power Consumption | ≤1W |
Max Load | 6A |
Mechanical Specifications
Item | Value |
Operating Environment | Indoor only |
Operating Temperature | -10°C ~ 40°C |
Operating Humidity | 0–95% RH, non-condensing |
Control Method | App / Manual |
Ingress Protection | IP20 |
Product Size | 86 × 86 mm (86-type panel) |
Gang / Button | 2-gang (2GMX) |
Wireless Specifications
Item | Value |
Connectivity | Wi Fi 2.4GHz + BLE 4.2 |
Frequency | 2.4 GHz |
Range | >50 m open area / 3–20 m indoor |
App Compatibility
iOS 13.0 or later
Android 7.0 or later
Yoswit App（App Store / Android APK）
Compatible with Bluetooth Smart Ready devices
Package / Documents
Smart intermediate switch main unit（2-gang）
Mounting screws
User manual（EN / Simplified Chinese）
Datasheet
Leaflet: Smart Lighting Switch
Product catalogue / Hong Kong product catalogue
LED stabilizer referenced as optional accessory for 2-wire instability
Installation Warnings
Turn off circuit breaker before installation; install by licensed electrician
Ground the device per local electrical code; missing ground = unsafe
For 2-wire no-neutral: if flicker/no-light occurs, use 3-wire（N）wiring or install LED stabilizer across lamp terminals
After wiring: press button 2–3 times to verify load toggles; open Yoswit App for auto-detection
