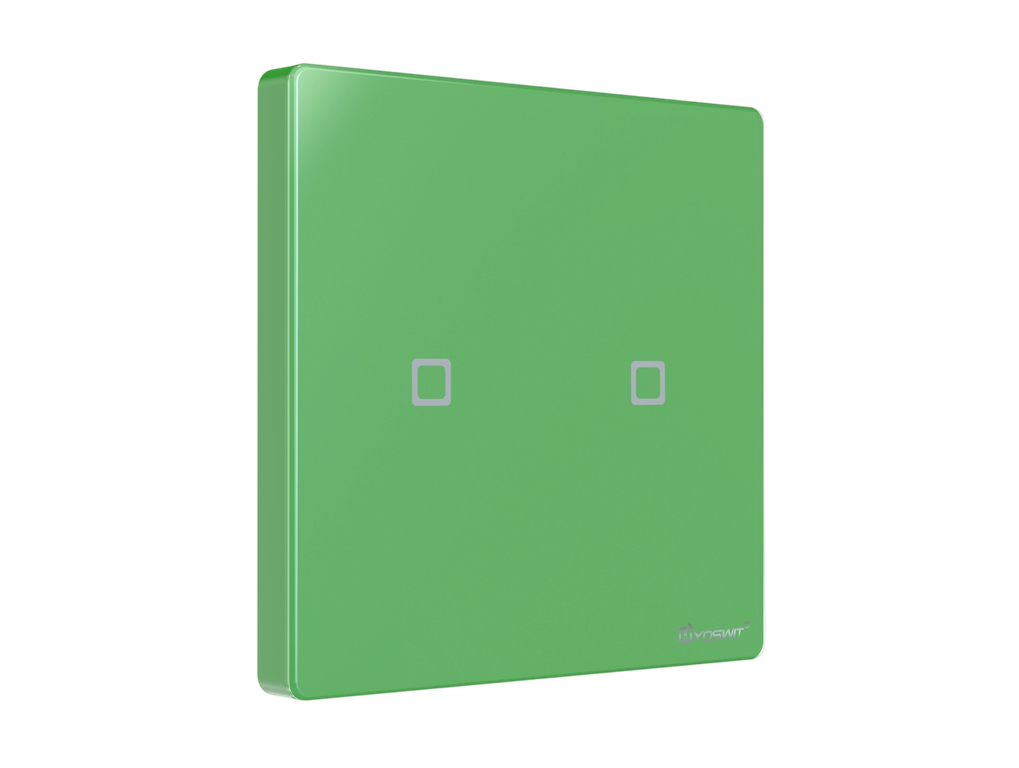

Yoswit Smart Touch Intermediate Switch — 2 Gang

Product Name: Yoswit Smart Touch Intermediate Switch

Model: YO2086s-2GMXT (R2W)

Panel Type: 86-type

Revision: V7.0

Manufacturer: Made by Yoswit in Hong Kong, assembled in Guangdong, China

Certifications: CE EMC, CE LVD, FCC, RoHS

Tagline

Control lights and appliances from multiple locations with a 2-gang smart touch intermediate switch.

Key Features

• Multi-location control
  The Yoswit smart intermediate switch enables control of the same light/appliance from three or more locations. For example, switches placed in different rooms let you control the same load conveniently.
• Standalone or combined use
  It can be used alone as a lighting switch, or combined with two-way / traditional switches to fit different lighting layouts.
• Compatible with traditional switches
  Works with existing traditional switches, so upgrading an old lighting system does not require major changes. Keeps manual operation habits while adding smart control.
• Flexible pairing with two-way switches
  Pairs flexibly with two-way switches—ideal for offices, long corridors and multi-entry areas where control from several directions is useful.
• Built-in schedule / timer
  Built-in timer enables automation, e.g. lights turn on in the morning and off when you leave—saving energy and effort.
• Acts as a hub for other Yoswit products
  With built-in Wi‑Fi, it works as a central node connecting other Yoswit devices. Manage all lights and appliances from the Yoswit App.
• Bluetooth + Wi‑Fi for stable, wider coverage
  Bluetooth Mesh strengthens local-network control; Wi‑Fi enables remote control. Stable coverage even in complex floor plans.
• OTA remote upgrade
  Supports OTA remote upgrades. Software updates can be pushed to fix bugs and add features, keeping the switch up to date.

Specifications

Wiring Notes

• Compatible with traditional two-way switch systems.
• Can be used with traditional switches and two-way switches for multi-location control.
• 2-wire (no neutral): supports LED ≥3W.
• 3-wire (with neutral): more stable operation.
• If 2-wire installation causes instability/flicker/no light, either:
  1. use 3-wire wiring with neutral (N), or
  2. connect the optional LED stabilizer across either end of any lamp as shown in the diagram.
