YO2086s-2GV(R2W)
Production Lead Time:
14 day(s)
产品型号:
YO2086s-2GV (R2W)-MEC-A
Brand:
Yoswit
Size:
L: 86mm x W: 86mm x H: 32mm
Port:
Hong Kong, Zhongshan, China
Type of Payment:
PayPal, Bank Transfer
Minimum Order Quantity:
1 piece
Operating Temperature:
-10°C to 40°C
Max. Current:
6A
防护等级:
IP20
Package:
Yes
Customised:
Yes
Max. Voltage:
AC100 - 240V
Description
Contact Supplier
Description

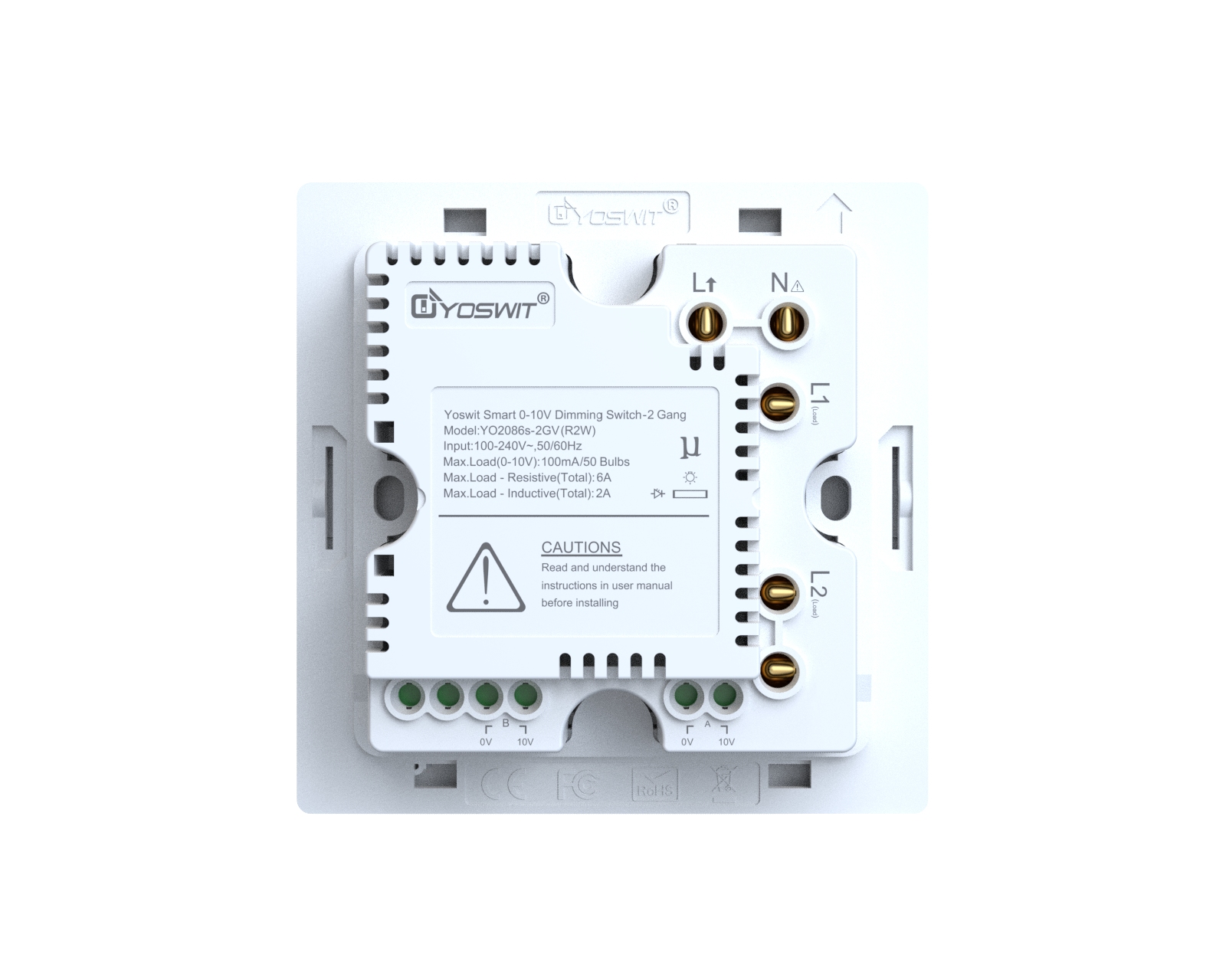

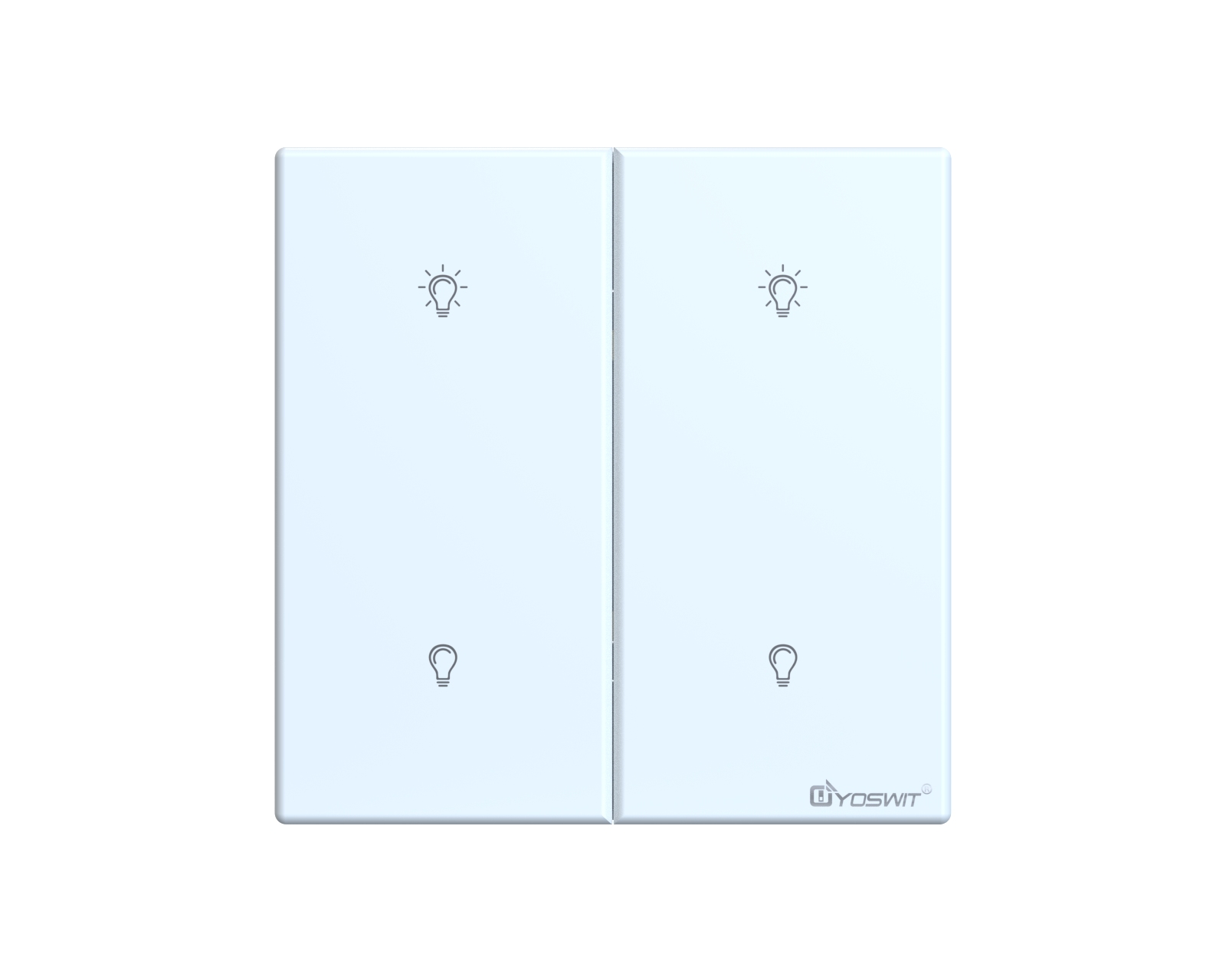

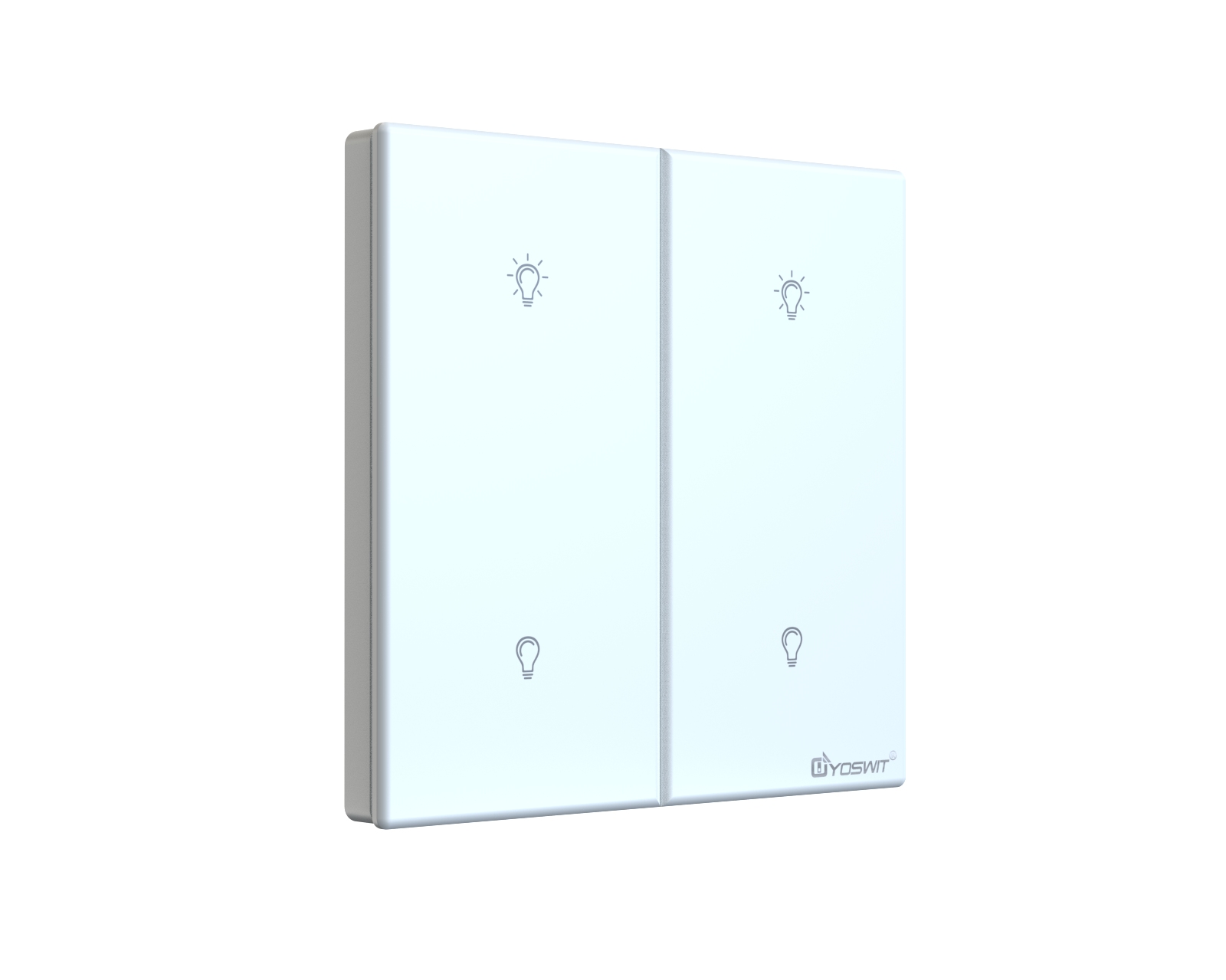

Yoswit Smart 0–10V Dimmer Switch — 2-Gang
Model: YO2086s-2GV (R2W)-MEC-A
Product Name: Yoswit Smart 0–10V Dimmer Switch
Gang: 2-gang
Panel Type: 86-type
Revision: V7.0
Manufacturer: Designed by Yoswit in Hong Kong; assembled in Guangdong, China
Certifications: CE, FCC, RoHS
Tagline
Easy brightness control with a smart dimmer switch — perfect for creating the ideal ambiance throughout the whole home.
Key Features
- High compatibility
Works with incandescent lamps, dimmable LED lamps and dimmable CFL lamps. Supports leading-edge and trailing-edge dimming. - Works with dimming drivers
Compatible with common 0–10V / dimmable drivers — no proprietary driver required. Just replace the traditional dimmer. - Customizable dimming increments
Adjust the brightness step in the Yoswit App for smooth, soft dimming and energy savings. - High-precision adjustment
Stable dimming performance with no flicker. - Voice and remote control via Yoswit App
With a gateway/hub, the switch can integrate with smart speakers and enable remote control. - Brightness memory
Remembers the current brightness when turned off, and restores the same level next time it is turned on. - Low power consumption
Energy-efficient operation without compromising performance.

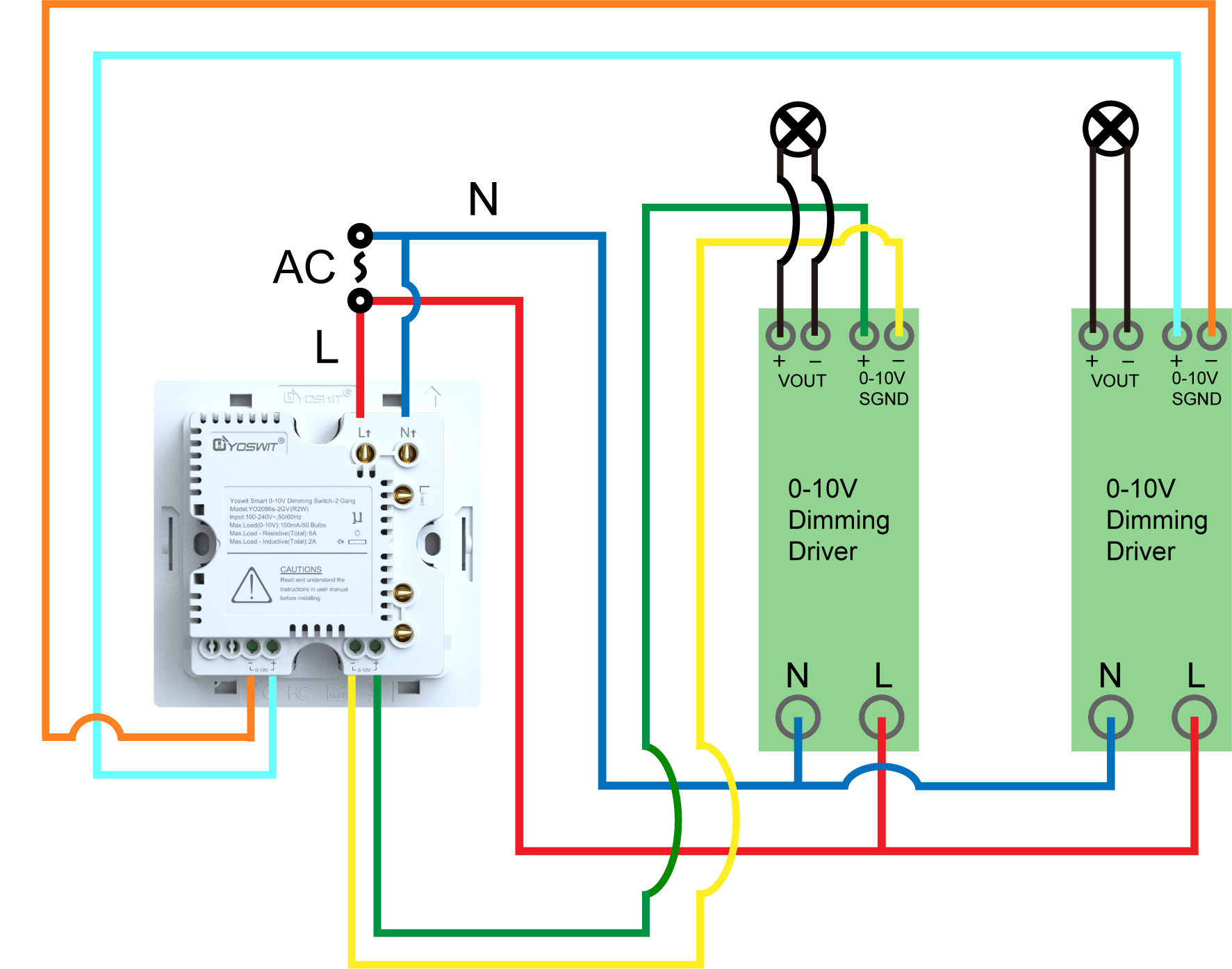

Dimming / Wiring Positioning
- 2-in-1: TRIAC dimming + 0–10V
- 2-wire / live-wire TRIAC dimming supported
- 3-wire / neutral-wire TRIAC dimming supported
- Neutral-wire 0–10V supported
- Leading-edge & trailing-edge compatible
- No hub / no rewiring / no setup / no pairing for BLE basics
- Technology: Bluetooth 4.2 (BLE)
Specifications
Item | Value |
|---|---|
Input Voltage | 100–240V AC, 50/60Hz |
Power Consumption | ≤1W |
Max Load (0–10V output) | 100 mA / up to 50 lamps |
Max Switch Load | 6A |
Gang | 2-gang |
Dimming Type | TRIAC + 0–10V, leading/trailing edge |
Operating Temp. | -10°C ~ 40°C |
Operating Humidity | 0–95% RH, non-condensing |
Environment | Indoor |
IP Rating | IP20 |
Wireless | BLE 4.2 |
Frequency | 2.4GHz |
Range | Open area: >50 m / Indoor: 3–20 m |
Control | App / Manual |
Panel | 86 × 86 mm |
App Support | iOS 13+ / Android 7+ |
Documents / Downloads
- User manual: Download / Download (Simplified Chinese)
- Datasheet: Download
- Leaflet: Smart Light Switch
- Product catalogue / Product catalogue (Hong Kong)
- Yoswit App (iOS / Android APK)
Installation Warnings
- Disconnect power at the service panel before installation.
- Installation must be carried out by a licensed electrician.
- Strip wires ≈5mm and follow the wiring diagram.
- Ground the device per local regulations; missing ground = unsafe installation / risk of injury.
- Mount to back box, restore power, test 2–3 times, then snap faceplate until all corners “click”.
- Optional LED stabilizer: if 2-wire install causes flicker/no light, use 3-wire (N connected) or add an LED stabilizer across any lamp.
