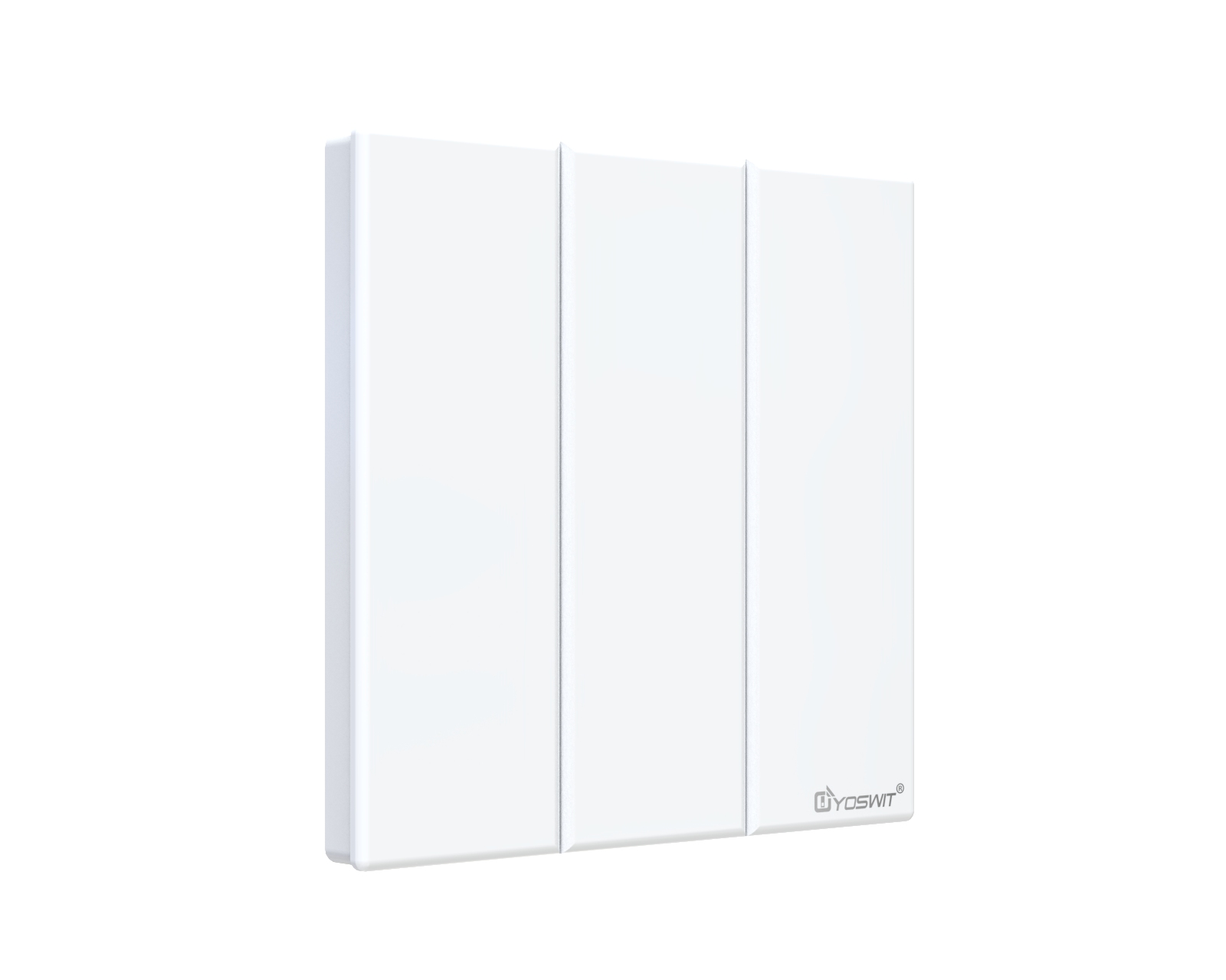

Yoswit Smart Lighting Switch — 3-Gang

Page / URL model: YO2086s-3G (R2)

Product Name: Yoswit Smart Lighting Switch

Gang: 3-gang

Panel Type: 86-type

Revision: V7.0

Manufacturer: Designed by Yoswit in Hong Kong; assembled in Guangdong, China

Certifications: CE, FCC, RoHS

Tagline

Control lights and appliances from anywhere with a 3-gang smart wall switch — no rewiring, no gateway, no complicated setup.

Key Features

• No rewiring required
  Works with both 2-wire (no neutral) and 3-wire (with neutral) traditional wiring. Just replace the existing wall switch — no renovation needed.
• High compatibility
  Supports common bulb types from incandescent to LED. On live-only / 2-wire wiring, supports LED loads as low as 3W.
• Delay & timer function
  Ideal for kitchens, staircases, bathrooms and storage rooms. Set a timer so the light turns off after you leave the area — useful at night and for energy saving.
• Dual operation modes
  Configure in the Yoswit App for light on/off, or use it to control an electric door / motorized lock.
• Switch lock
  Lock the switch in ON or OFF state to prevent accidental operation at home, office or public areas. Enable/disable from the app anytime.
• Preset power-restoration state
  After power returns, the switch can auto-restore to ON or OFF based on your setting.

Note: compared with 1G/2G pages, this 3G (R2) page does not list “Customizable LED indicator” in the feature block, though the generic footer/tech section may mention LED behavior.

Technology & Positioning

• Wireless: BLE 4.2
• Live-only LED support: ≥3W
• No gateway required for basic BLE use
• App: iOS 13+ / Android 7+
• 86-type panel; indoor use; IP20

Specifications

Installation Warnings

• Disconnect power at the service panel before installation.
• Must be installed by a licensed electrician.
• Ground the device according to local regulations; missing ground = unsafe installation / risk of injury.
• Strip wires ≈5mm and follow the wiring diagram.
• Mount to back box, restore power, test the button 2–3 times, then snap faceplate until all corners “click”.
• After installation, open the Yoswit App — the switch is automatically detected and added.
