YO2086s-3GV(R2W)
Production Lead Time:
14 day(s)
产品型号:
YO2086s-3GV(R2W)
Brand:
Yoswit
Size:
L: 86mm x W: 86mm x H: 32mm
Port:
Hong Kong, Zhongshan, China
Type of Payment:
PayPal, Bank Transfer
最低订购数量:
1 piece
Operating Temperature:
-10°C to 40°C
Max. Current:
6A
防护等级:
IP20
Package:
Yes
Customised:
Yes
Max. Voltage:
AC100 - 240V
Description
Contact Supplier
Description

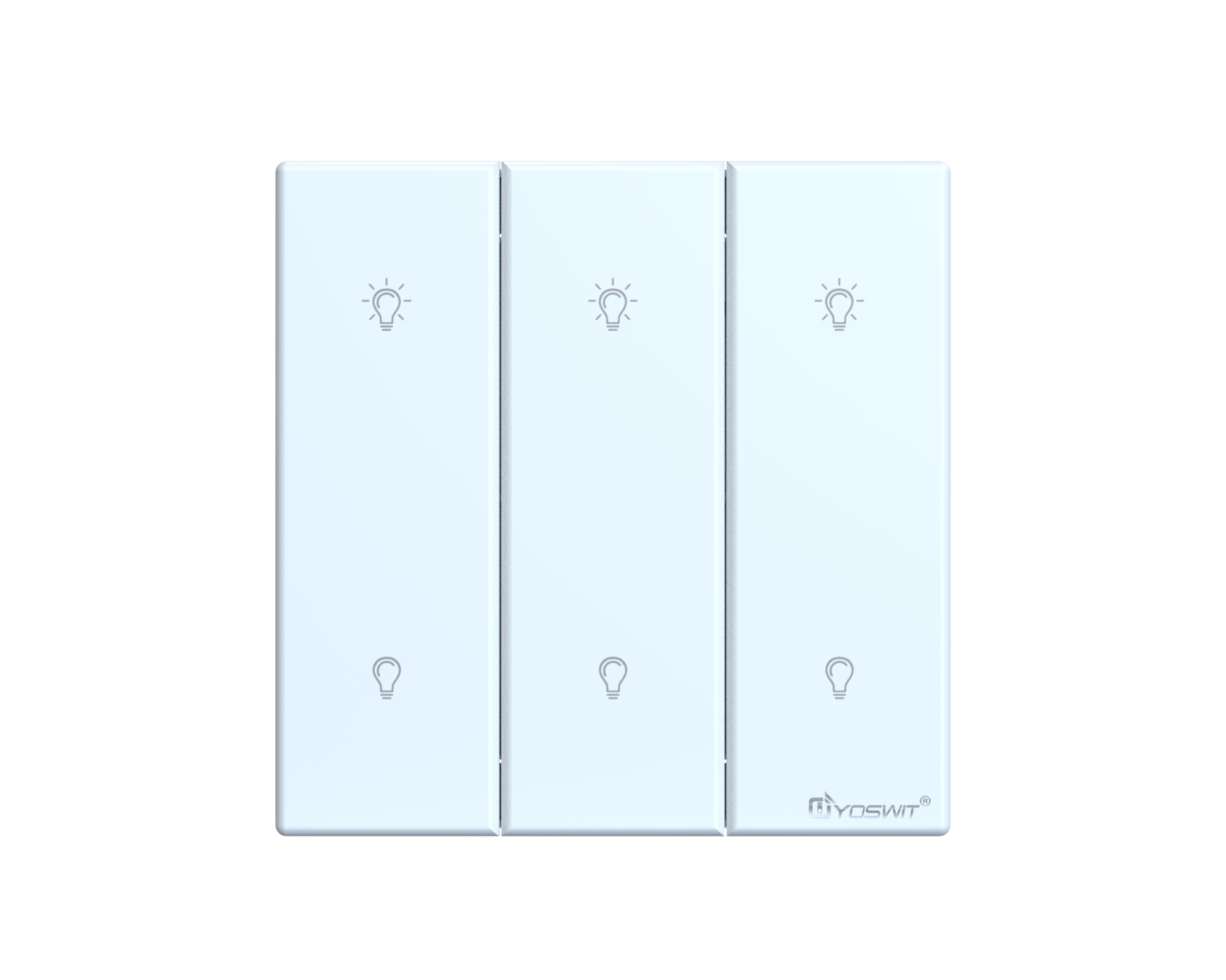

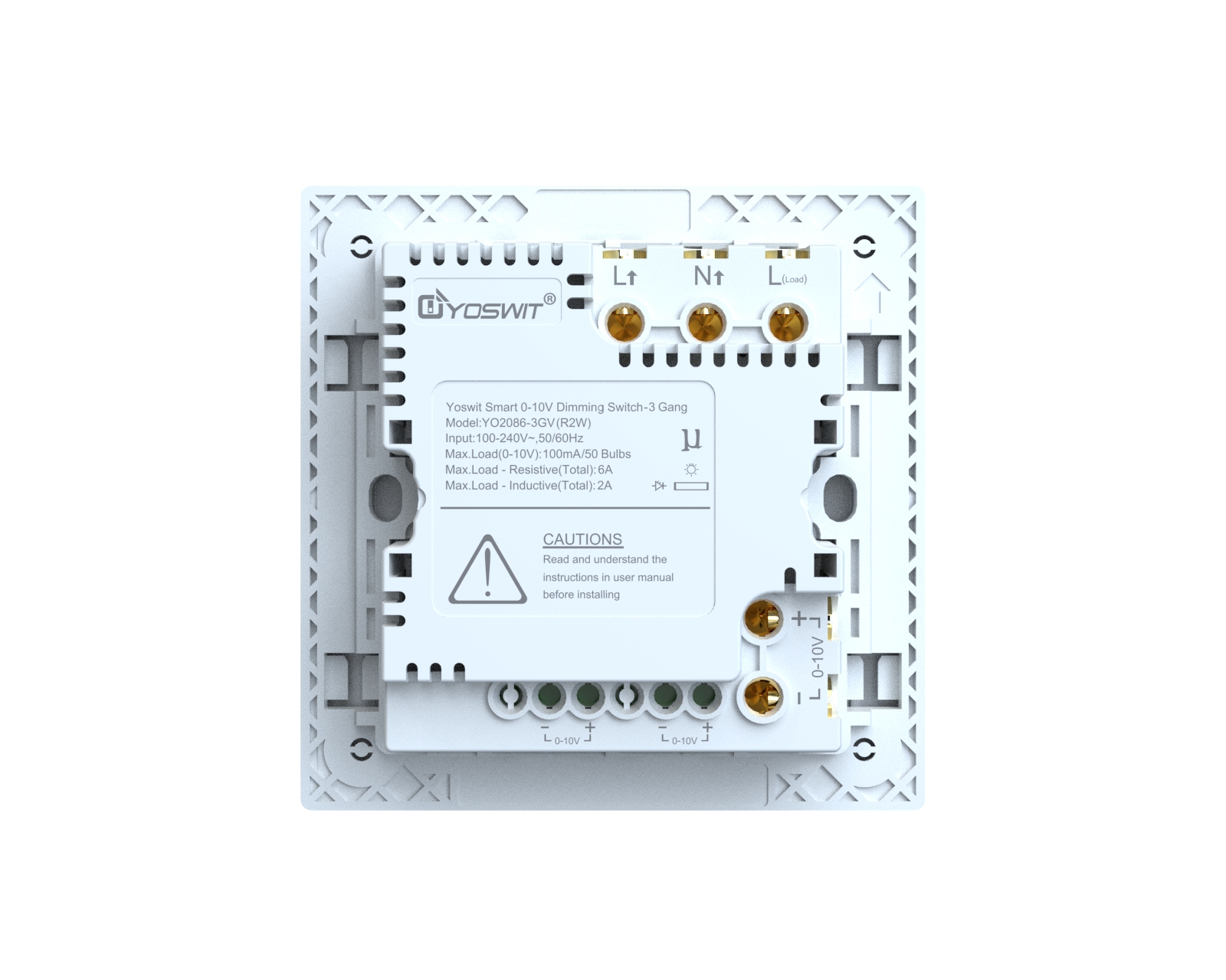

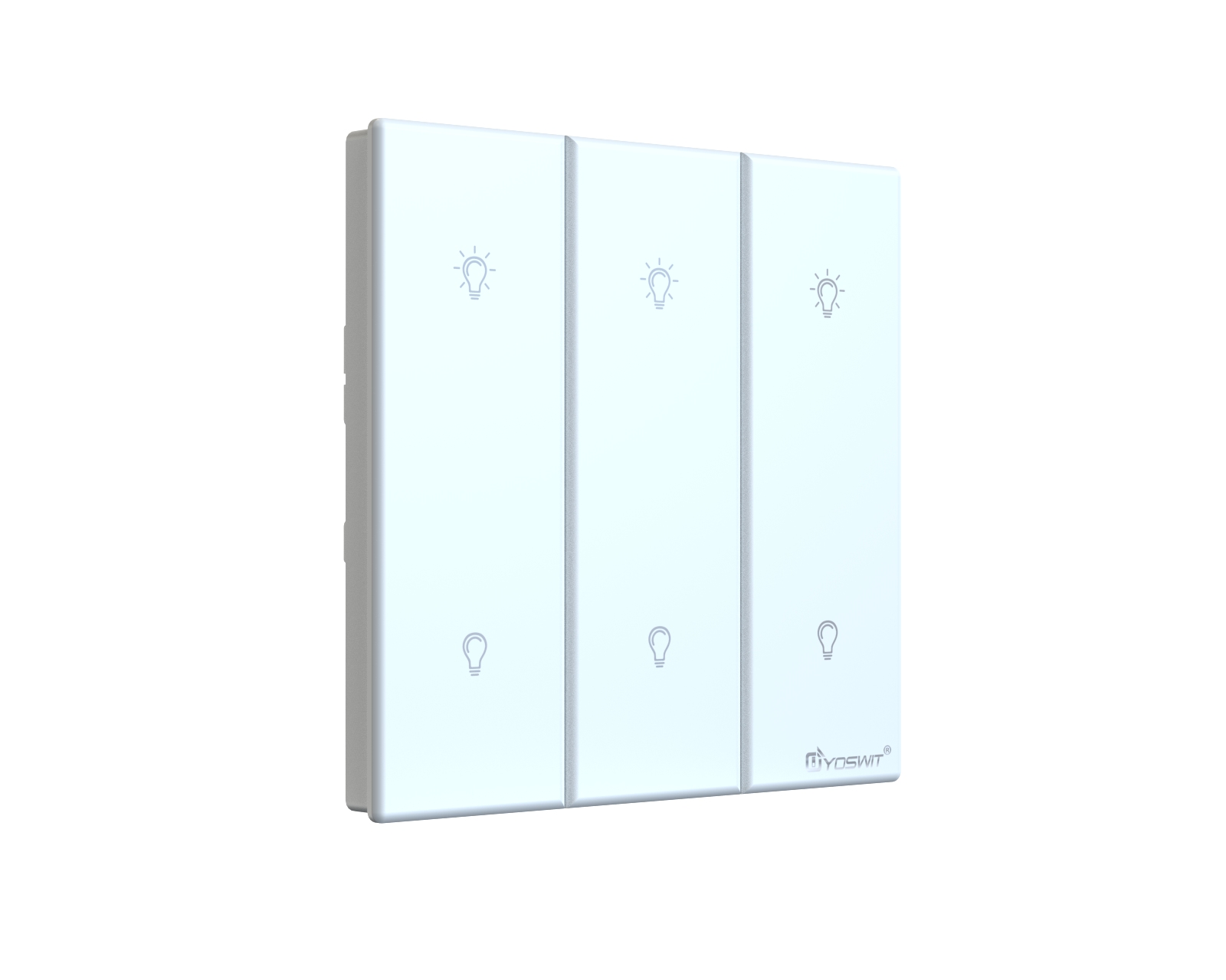

Yoswit Smart 0–10V Dimmer Switch（3-Gang）
Model: YO2086s-3GV (R2W)
Product Name: Yoswit Smart 0–10V Dimmer Switch
Gang: 3-gang
Panel Type: 86-type
Revision: V7.0
Designed by: Yoswit in Hong Kong, China
Assembled in: Guangdong, China
Certifications: CE（EMC + LVD）, FCC, RoHS
Product Summary
A 3-gang smart dimmer switch that replaces traditional dimmers without gateway, rewiring, complex setup, or manual pairing. Supports incandescent, dimmable LED, dimmable CFL, and common 0–10V dimming drivers with leading-edge and trailing-edge dimming.
Key Features
- High compatibility: Incandescent, dimmable LED, dimmable CFL; supports leading-edge and trailing-edge dimming
- Works with dimming drivers: No brand-locked driver required; swap the old dimmer and it is ready
- Custom dimming step: Adjust brightness increment via Yoswit App
- High-precision dimming: Stable performance, no flicker
- Voice & remote control: Via Yoswit App; smart speaker linkage when paired with gateway
- Brightness memory: Remembers last brightness level after off/on
- Low power consumption: ≤1W standby/module power
- No hub required: BLE-based, auto-detected by Yoswit App
- No rewiring / no pairing / no complex configuration
- 3-gang version of the YO2086s-1GV dimmer
Electrical Specifications
Item | Value |
|---|---|
Input Voltage | 100–240V AC, 50/60Hz |
Power Consumption | ≤1W |
Max Load | 6A |
Max 0–10V Load | 100 mA / up to 50 lamps |
Mechanical Specifications
Item | Value |
|---|---|
Operating Environment | Indoor only |
Operating Temperature | -10°C ~ 40°C |
Operating Humidity | 0–95% RH, non-condensing |
Control Method | App / Manual |
Ingress Protection | IP20 |
Product Size | 86 × 86 mm（86-type panel） |
Wireless Specifications
Item | Value |
|---|---|
Bluetooth Version | Bluetooth 4.2（BLE） |
Frequency | 2.4 GHz |
Range | >50 m open area / 3–20 m indoor |
App Compatibility
- iOS 13.0 or later
- Android 7.0 or later
- Yoswit App（App Store / Android APK）
- Bluetooth Smart Ready devices supported
Package / Documents
- Smart dimmer switch main unit（3-gang）
- Mounting screws
- User manual（EN / Simplified Chinese）
- Datasheet
- Leaflet: Smart Lighting Switch
- Product catalogue / Hong Kong product catalogue
Installation Warnings
- Turn off circuit breaker before installation; install by licensed electrician
- Ground the device according to local electrical code

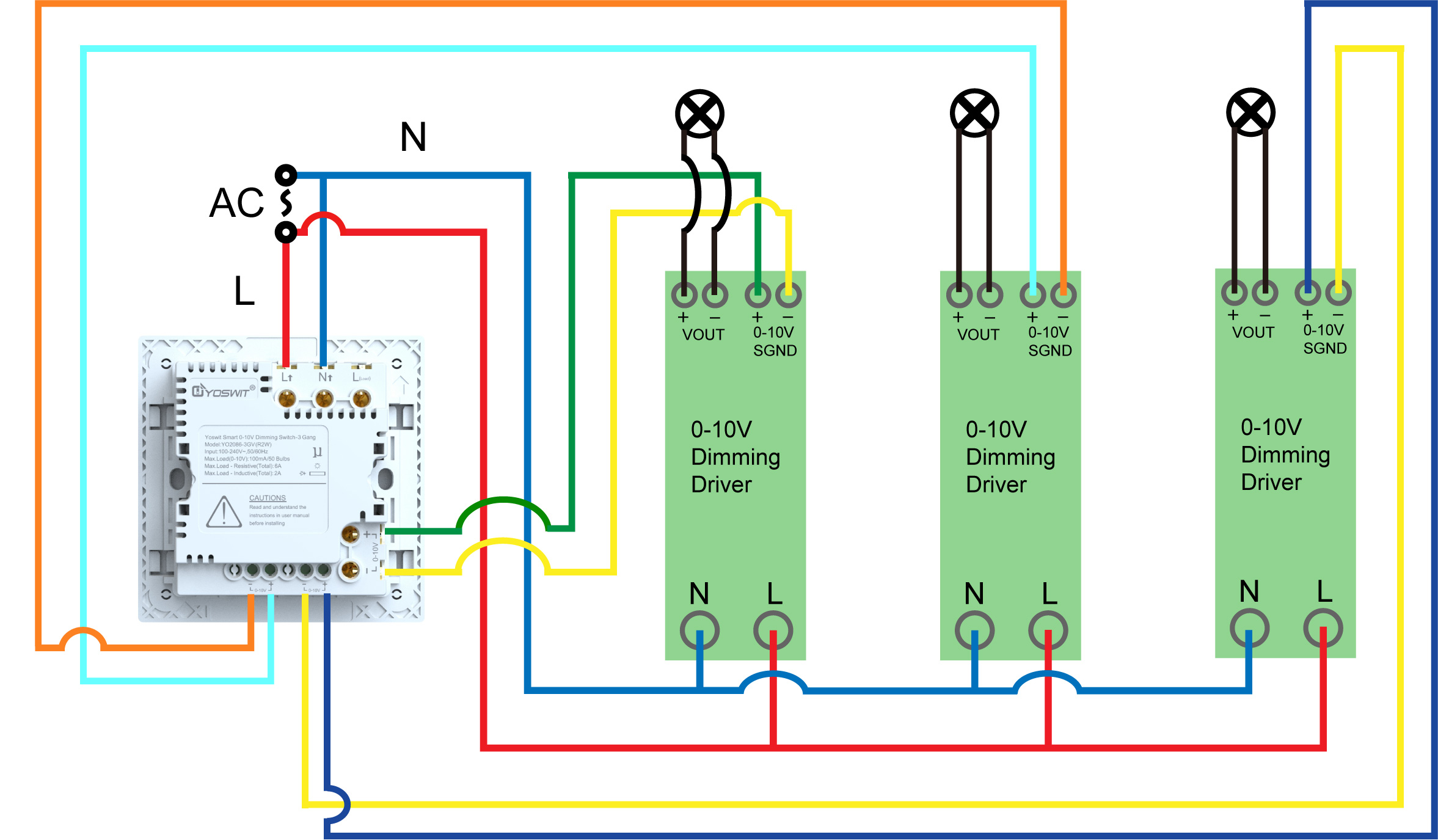

- For 2-wire no-neutral: if flicker/no-light occurs, use 3-wire（N）wiring or install LED stabilizer across lamp terminals
- After wiring: press button 2–3 times to verify load toggles; open Yoswit App for auto-detection
Competitive Notes vs Schneider / Legrand / Leviton / Lutron
- No gateway
- No rewiring
- No setup / no pairing
- 2-in-1 TRIAC + 0–10V
- Leading-edge & trailing-edge dimming
- No-neutral capable（TRIAC）and neutral-wire capable
- Bluetooth 4.2 core technology
- 3-gang dimmer variant
