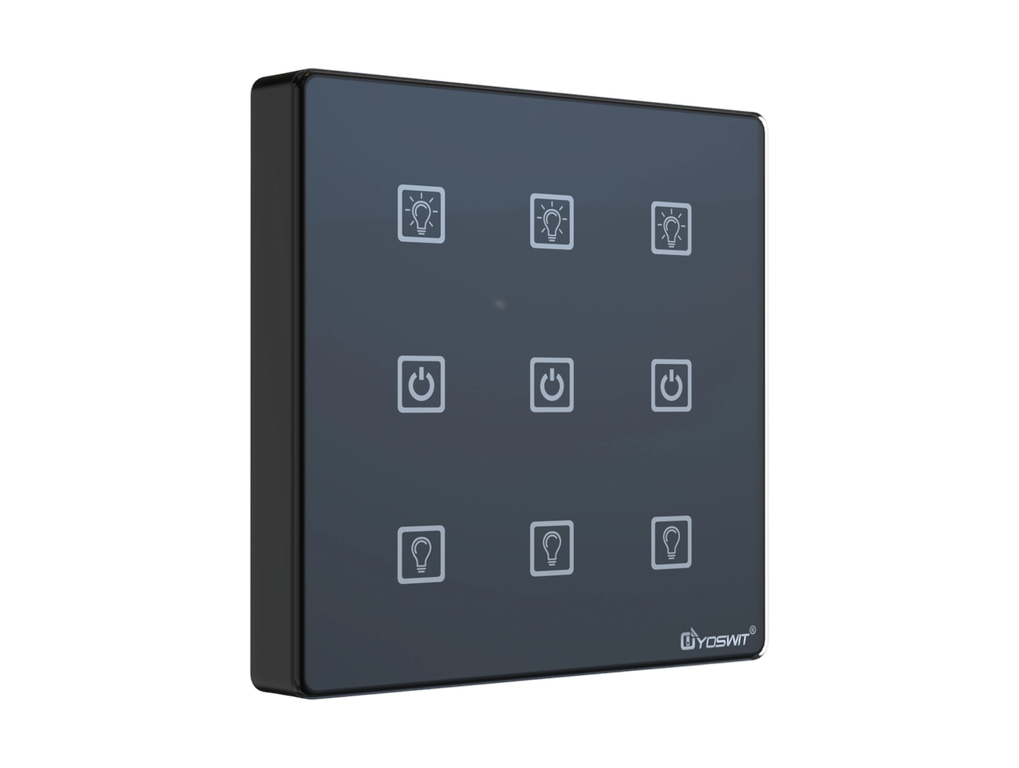

Yoswit Smart Touch 0–10V Dimmer Switch — 3 Gang

Product Name: Yoswit Smart Touch 0–10V Dimmer Switch

Model: YO2086s-3GVT (R2W)

Panel Type: 86-type

Revision: V7.0

Manufacturer: Designed by Yoswit in Hong Kong, assembled in Guangdong, China

Certifications: CE EMC, CE LVD, FCC, RoHS

Tagline

Effortlessly control brightness with a smart dimmer switch — perfect for creating the ideal ambience throughout the home.

Key Features

• High compatibility
  Works with incandescent lamps, dimmable LED lamps and dimmable CFL lamps. Supports both leading-edge and trailing-edge dimming.
• Works with dimming drivers
  Compatible with common 0–10V / dimming drivers — no proprietary driver required. Simply replace the traditional dimmer switches with Yoswit.
• Custom dimming step
  Adjust the brightness increment in the Yoswit App for smooth, soft dimming and the right atmosphere while saving energy.
• High-precision adjustment
  Excellent dimming accuracy for stable lighting performance with no flicker.
• Voice and remote control via Yoswit App
  With a gateway, it can work with smart speakers; remote control is also available through the Yoswit App.
• Brightness memory
  When the dimmer is turned off, Yoswit remembers the current brightness level and restores it automatically next time the light is switched on.
• Low power consumption
  Energy-efficient design reduces electricity cost without compromising performance.
• 3 independent dimming channels
  Control three lighting zones / three dimmable loads from one 86-type plate.

Specifications

Installation Warnings

• To avoid electric shock, disconnect the power supply before installation. Installation must be carried out by a licensed electrician.
• To reduce the risk of electric shock, properly ground the switch according to local regulations. Missing ground wire = unsafe installation / risk of personal injury.

Installation Steps

1. Remove the old switch, disconnect the wires, and expose about 5 mm of bare conductor.
2. Use a small flat-head screwdriver to pry the faceplate from the frame notch.
3. Connect the wires to the switch terminals according to the wiring diagram.
4. Secure the switch firmly into the wall box.
5. Turn on the RCD / circuit breaker to restore power.
6. Press the buttons 2–3 times to confirm the lights turn on/off correctly.
7. Snap the faceplate onto the switch; a “click” at the four corners indicates correct placement.
