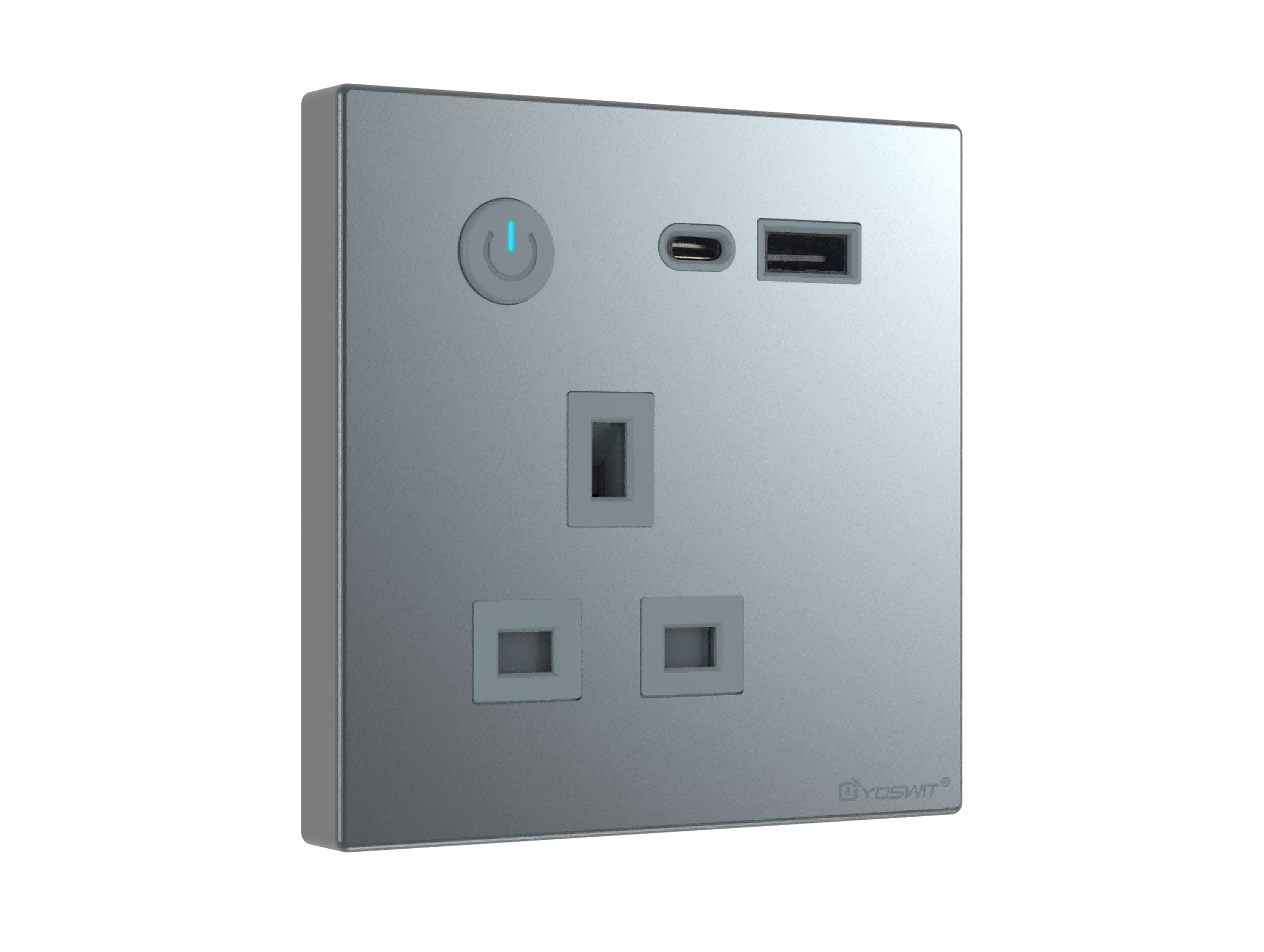

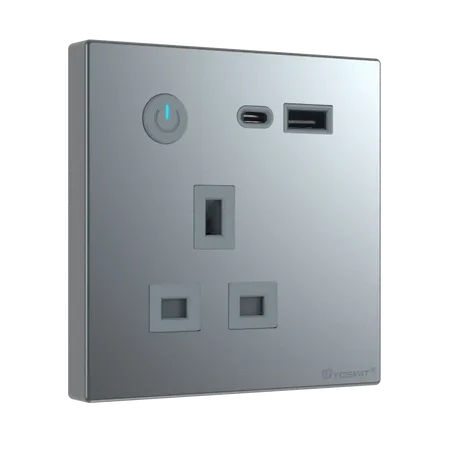

Yoswit Smart Outlet (UK)

Model: YO515uk-C (R2W)-MEC-A

Product name: Yoswit Smart Outlet

Socket type: UK

Panel type: 86-type

Revision: V7.0

Category: Smart Outlet / Smart Socket

Input voltage: AC 100–240V, 50/60Hz

Max load: 13A / 1.5HP

Standby power: ≤1W

Power measurement accuracy: ±3%

Connection: Wi-Fi 2.4G / BLE 4.2

Frequency: 2.4GHz

Range: Open area > 50m; indoor 3–20m

IP rating: IP20

Operating temp.: -10°C to 40°C

Operating humidity: 0–95% RH, non-condensing

Operation: App / Manual

Certifications: CE EMC, CE LVD, FCC, RoHS

Manufacturer: Designed by Yoswit in Hong Kong, assembled in Guangdong, China

Tagline

Smart power control to make your home truly smart — turn ordinary appliances into connected devices.

Key Features

• Real-time power monitoring
  Track energy consumption second-by-second for both high-power and low-power devices. Clear usage data helps reduce waste and save money.
• Overload protection
  When current exceeds the safe limit, the socket automatically cuts power to prevent fires or damage to valuable appliances.
• Anti-touch safety shutter
  Independent safety shutters help prevent children and pets from contacting live parts, reducing accidental electric shock risks.
• Built-in timer
  Each Yoswit smart socket has a built-in timer. Schedules can be set from weekly down to per-minute. Timers are stored in the socket and keep running even if the phone disconnects.
• Remote control via Yoswit App
  Built-in Wi-Fi lets you control outdoor or household appliances from anywhere. Forgot to turn off the AC? Just open the Yoswit App.
• Acts as a hub for other Yoswit products
  With its built-in Wi-Fi module, the socket can work as a central node to connect other Yoswit smart products and manage them from one app.
• Bluetooth + Wi-Fi for stable coverage
  Bluetooth mesh strengthens local control; Wi-Fi extends management distance. Stable connection through walls and across rooms.

Platform / Ecosystem

Mobile-as-hub · Voice control · Device grouping · Remote control · Scene modes · Away detection · Schedule timers · Password protection · IFTTT

Wireless

• Wi-Fi: 2.4GHz
• Bluetooth: BLE 4.2
• iOS: 13.0 or later
• Android: 7.0 or later
• Range: Open area > 50m; indoor 3–20m
