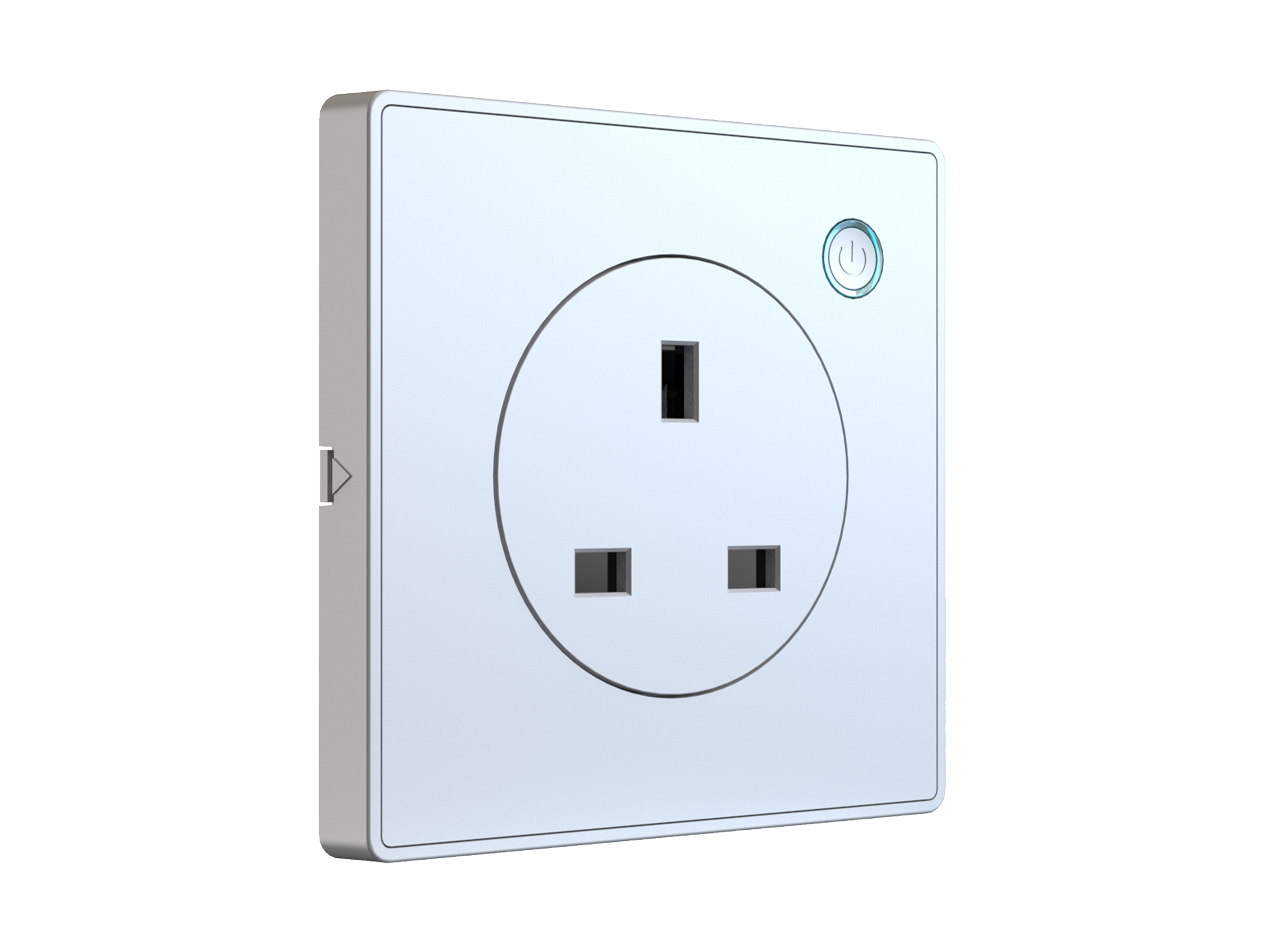

Yoswit Smart Socket with IR Blaster

Model: YO515uk-IR (R2W)

Panel type: 86-type

Revision: V7.0

Plug type: UK

Category: Smart Outlet / Smart Socket with Infrared Transmitter

Manufacturer: Produced by Yoswit in Hong Kong; assembled in Guangdong, China

Certifications: CE EMC, CE LVD, FCC, RoHS

Tagline

Smart power control for your connected home — and built-in IR to control your ordinary infrared appliances.

Key Features

• Built-in IR transmitter
  Emits precise infrared signals that pass through obstacles to control TVs, air conditioners and other IR appliances. Turns ordinary devices into smart-controlled equipment from the Yoswit App.
• Real-time power monitoring
  Track energy use second-by-second for both high-power and low-power devices. Clear data helps cut waste and save money.
• Overload protection
  If current exceeds the safe limit, the socket automatically cuts power to prevent fire or damage to valuable appliances.
• Anti-touch safety shutter
  Independent safety shutters help stop children and pets from touching live parts, reducing shock risk.
• Built-in timer
  Set schedules from weekly to per-minute. Timers are stored in the socket and keep running even if the phone disconnects.
• Remote control via Yoswit App
  Built-in Wi-Fi lets you control appliances anywhere — outdoor gear, AC, fans, etc.
• Works as a Yoswit hub
  With its built-in Wi-Fi module, the socket acts as a central node for other Yoswit smart products and manages them in one app.
• Bluetooth + Wi-Fi coverage
  Bluetooth mesh strengthens local control; Wi-Fi enables remote access; signal passes through walls and covers backyard, upstairs, etc.

IR Spec

• IR transmitter range / reach: 2 meters

Specifications

General

Electrical

Wireless

Compatibility

• iOS 13.0 or later
• Android 7 or later
• Bluetooth Smart Ready devices: phones, tablets, smart set-top boxes

Installation

⚠️ Disconnect power at the source before installation. Mains work must be done by a licensed electrician.

1. Remove the old socket and disconnect original wires. Expose about 5mm of bare copper.
2. Insert a small flat-head screwdriver into the frame notch and gently pry off the faceplate.
3. Connect wires to the socket terminals per the wiring diagram.
4. Ground the unit according to local regulations/codes. No ground wire = unsafe installation / risk of injury.
5. Secure the socket firmly to the back box.
6. Turn the RCD / breaker back on.
7. Press the power button 2–3 times to test; LED turns on/off.
8. Plug in your device.
9. Press the socket power button and turn the device on.
10. Download the Yoswit App — the socket is automatically detected and added.
